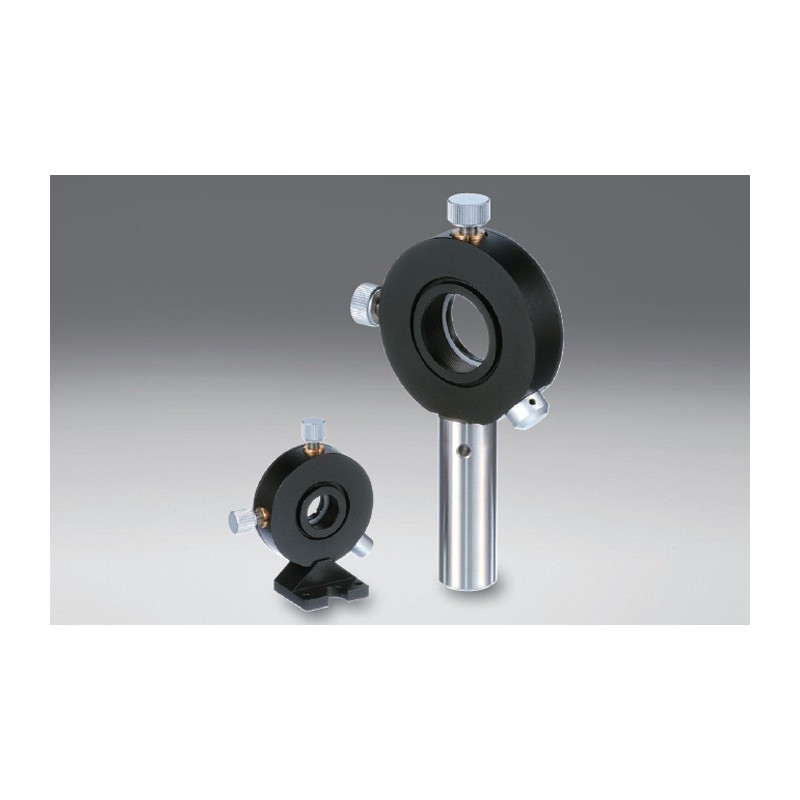

OSE-LHCM: Caliper Variable Lens Holders

Reference number: OSE-LHCM-10

€95.10

Tax excluded

Option

Compatible Optics Diameter

Quantity

Delivery

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Those products may also interest you

OSE-MHAN-M: Gimballed Mirror Mounts

OSE-MHAN-M

€235.90
OSE-MHAN-S: Gimballed Mirror Mounts

OSE-MHAN-S

€186.70
OSE-MHAN-EE: Gimballed Mirror Mounts

OSE-MHAN-EE

€226.30
OSE-MHA: Gimballed Mirror Mounts

OSE-MHA

€377.20
OSE-MHAN-DM: Gimballed Mirror Mounts

OSE-MHAN-DM

€364.90

Compatible optics diameter [mm]: 10
Compatible optic thickness [mm]: 1 - 6
Centering adjustment range: 1
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.03
B [mm]: 7
C [mm]: 12.5

Downloads

Compatible optics diameter [mm]: 12.7
Compatible optic thickness [mm]: 1 - 8
Centering adjustment range: 2
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.05
B [mm]: 12
C [mm]: 20

Downloads

OSE-LHCM-12.7_STP.zip

DOWNLOAD

OSE-LHCM.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 15
Compatible optic thickness [mm]: 1 - 8
Centering adjustment range: 2
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.05
B [mm]: 12
C [mm]: 20

Downloads

OSE-LHCM-15_STP.zip

DOWNLOAD

OSE-LHCM.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 20
Compatible optic thickness [mm]: 2 - 12
Centering adjustment range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.27
B [mm]: 17
C [mm]: 27.5
D [mm]: 58
E [mm]: max 130
F [mm]: max 42
G [mm]: 29
H [mm]: 18
I [mm]: 6

Downloads

OSE-LHCM-20_STP.zip

DOWNLOAD

OSE-LHCM.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 25
Compatible optic thickness [mm]: 2 - 12
Centering adjustment range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.28
B [mm]: 22
C [mm]: 30
D [mm]: 64
E [mm]: max 137
F [mm]: max46
G [mm]: 32
H [mm]: 18
I [mm]: 6

Downloads

OSE-LHCM-25_STP.zip

DOWNLOAD

OSE-LHCM.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 25.4
Compatible optic thickness [mm]: 2 - 12
Centering adjustment range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.28
B [mm]: 22
C [mm]: 30
D [mm]: 64
E [mm]: max 137
F [mm]: max46
G [mm]: 32
H [mm]: 18
I [mm]: 6

Downloads

OSE-LHCM-25.4_STP.zip

DOWNLOAD

OSE-LHCM.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 2 - 12
Centering adjustment range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.28
B [mm]: 27
C [mm]: 30
D [mm]: 64
E [mm]: max 137
F [mm]: max46
G [mm]: 32
H [mm]: 18
I [mm]: 6

Downloads

OSE-LHCM-30_STP.zip

DOWNLOAD

OSE-LHCM.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 40
Compatible optic thickness [mm]: 2 - 14
Centering adjustment range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.31
B [mm]: 27
C [mm]: 30
D [mm]: 78
E [mm]: max 150
F [mm]: max 52
G [mm]: 39
H [mm]: 20
I [mm]: 7

Downloads

OSE-LHCM-40_STP.zip

DOWNLOAD

OSE-LHCM.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 50
Compatible optic thickness [mm]: 2 - 14
Centering adjustment range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.36
B [mm]: 46
C [mm]: 42.5
D [mm]: 88
E [mm]: max 160
F [mm]: max 57
G [mm]: 44
H [mm]: 20
I [mm]: 7

Downloads

OSE-LHCM-50_STP.zip

DOWNLOAD

OSE-LHCM.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 50.8
Compatible optic thickness [mm]: 2 - 14
Centering adjustment range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.36
B [mm]: 46
C [mm]: 42.5
D [mm]: 88
E [mm]: max 160
F [mm]: max 57
G [mm]: 44
H [mm]: 20
I [mm]: 7

Downloads

OSE-LHCM-50.8_STP.zip

DOWNLOAD

OSE-LHCM.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 10
Compatible optic thickness [mm]: 1 - 6
Centering adjustment range: 1
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.025
A [mm]: 24
B [mm]: 14
C [mm]: 37
D [mm]: 12.5
E [mm]: 11
F [mm]: 6
G [mm]: 7
H [mm]: 10
I [mm]: 26
J [mm]: 1.2
K [mm]: 6.2

Downloads

OSE-LHCM-10B_STP.zip

DOWNLOAD

OSE-LHCM.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 12.7
Compatible optic thickness [mm]: 1 - 8
Centering adjustment range: 2
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.043
A [mm]: 32
B [mm]: 22
C [mm]: 53
D [mm]: 20
E [mm]: 13
F [mm]: 7
G [mm]: 12
H [mm]: 12.7
I [mm]: 41
J [mm]: 2
K [mm]: 14.4

Downloads

OSE-LHCM-12.7-N_STP.zip

DOWNLOAD

OSE-LHCM.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 15
Compatible optic thickness [mm]: 1 - 8
Centering adjustment range: 2
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.043
A [mm]: 32
B [mm]: 22
C [mm]: 53
D [mm]: 20
E [mm]: 13
F [mm]: 7
G [mm]: 12
H [mm]: 15
I [mm]: 41
J [mm]: 2
K [mm]: 14.4

Downloads

OSE-LHCM-15-N_STP.zip

DOWNLOAD

OSE-LHCM.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 20
Compatible optic thickness [mm]: 2 - 12
Centering adjustment range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.22
A [mm]: 20
B [mm]: 17
C [mm]: 58
D [mm]: 70
E [mm]: 27.5
F [mm]: 42
G [mm]: 29
H [mm]: 18
I [mm]: 6
J [mm]: 0.4
K [mm]: 17.6

Downloads

OSE-LHCM-20-N_STP.zip

DOWNLOAD

OSE-LHCM.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 25
Compatible optic thickness [mm]: 2 - 12
Centering adjustment range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.23
A [mm]: 25
B [mm]: 22
C [mm]: 64
D [mm]: 77
E [mm]: 30
F [mm]: 46
G [mm]: 32
H [mm]: 18
I [mm]: 6
J [mm]: 0.8
K [mm]: 20.1

Downloads

OSE-LHCM-25.4-UU_STP.zip

DOWNLOAD

OSE-LHCM.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 25
Compatible optic thickness [mm]: 2 - 12
Centering adjustment range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.23
A [mm]: 25.4
B [mm]: 22
C [mm]: 64
D [mm]: 77
E [mm]: 30
F [mm]: 46
G [mm]: 32
H [mm]: 18
I [mm]: 6
J [mm]: 0.8
K [mm]: 20.1

Downloads

OSE-LHCM-25.4-N_STP.zip

DOWNLOAD

OSE-LHCM.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 2 - 12
Centering adjustment range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.23
A [mm]: 30
B [mm]: 27
C [mm]: 64
D [mm]: 77
E [mm]: 30
F [mm]: 46
G [mm]: 32
H [mm]: 18
I [mm]: 6
J [mm]: 0.8
K [mm]: 20.1

Downloads

OSE-LHCM-30-N_STP.zip

DOWNLOAD

OSE-LHCM.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 40
Compatible optic thickness [mm]: 2 - 14
Centering adjustment range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.26
A [mm]: 40
B [mm]: 36
C [mm]: 78
D [mm]: 90
E [mm]: 37.5
F [mm]: 52
G [mm]: 39
H [mm]: 20
I [mm]: 7

Downloads

OSE-LHCM-40_STP.zip

DOWNLOAD

OSE-LHCM.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 50
Compatible optic thickness [mm]: 2 - 14
Centering adjustment range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.31
A [mm]: 50
B [mm]: 46
C [mm]: 88
D [mm]: 100
E [mm]: 42.5
F [mm]: 57
G [mm]: 44
H [mm]: 20
I [mm]: 7

Downloads

OSE-LHCM-50-N_STP.zip

DOWNLOAD

OSE-LHCM.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 50.8
Compatible optic thickness [mm]: 2 - 14
Centering adjustment range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.31
A [mm]: 50.8
B [mm]: 46
C [mm]: 88
D [mm]: 100
E [mm]: 42.5
F [mm]: 57
G [mm]: 44
H [mm]: 20
I [mm]: 7

Downloads

OSE-LHCM-50.8-N_STP.zip

DOWNLOAD

OSE-LHCM.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 20
Compatible optic thickness [mm]: 2 - 12
Centering adjustment range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.2
A [mm]: 20
B [mm]: 17
C [mm]: 58
D [mm]: 70
E [mm]: 27.5
F [mm]: 42
G [mm]: 29
H [mm]: 18
I [mm]: 6
J [mm]: 0.4
K [mm]: 17.6
L [mm]: M4

Downloads

OSE-LHCM-20-EE_STP.zip

DOWNLOAD

OSE-LHCM.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 25
Compatible optic thickness [mm]: 2 - 12
Centering adjustment range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.23
A [mm]: 25
B [mm]: 22
C [mm]: 64
D [mm]: 77
E [mm]: 30
F [mm]: 46
G [mm]: 32
H [mm]: 18
I [mm]: 6
J [mm]: 0.8
K [mm]: 20.1
L [mm]: M4

Downloads

OSE-LHCM-25.4-UU_STP.zip

DOWNLOAD

OSE-LHCM.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 25
Compatible optic thickness [mm]: 2 - 12
Centering adjustment range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.23
A [mm]: 25.4
B [mm]: 22
C [mm]: 64
D [mm]: 77
E [mm]: 30
F [mm]: 46
G [mm]: 32
H [mm]: 18
I [mm]: 6
J [mm]: 0.8
K [mm]: 20.1
L [mm]: M4

Downloads

OSE-LHCM-25.4-EE_STP.zip

DOWNLOAD

OSE-LHCM.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 2 - 12
Centering adjustment range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.23
A [mm]: 30
B [mm]: 27
C [mm]: 64
D [mm]: 77
E [mm]: 30
F [mm]: 46
G [mm]: 32
H [mm]: 18
I [mm]: 6
J [mm]: 0.8
K [mm]: 20.1
L [mm]: M4

Downloads

OSE-LHCM-30-EE_STP.zip

DOWNLOAD

OSE-LHCM.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 40
Compatible optic thickness [mm]: 2 - 14
Centering adjustment range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.26
A [mm]: 40
B [mm]: 36
C [mm]: 78
D [mm]: 90
E [mm]: 37.5
F [mm]: 52
G [mm]: 39
H [mm]: 20
I [mm]: 7
L [mm]: M4

Downloads

OSE-LHCM-40_STP.zip

DOWNLOAD

OSE-LHCM.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 50
Compatible optic thickness [mm]: 2 - 14
Centering adjustment range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.31
A [mm]: 50
B [mm]: 46
C [mm]: 88
D [mm]: 100
E [mm]: 42.5
F [mm]: 57
G [mm]: 44
H [mm]: 20
I [mm]: 7
L [mm]: M4

Downloads

OSE-LHCM-50-EE_STP.zip

DOWNLOAD

OSE-LHCM.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 50.8
Compatible optic thickness [mm]: 2 - 14
Centering adjustment range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.31
A [mm]: 50.8
B [mm]: 46
C [mm]: 88
D [mm]: 100
E [mm]: 42.5
F [mm]: 57
G [mm]: 44
H [mm]: 20
I [mm]: 7
L [mm]: M4

Downloads

OSE-LHCM-50.8-EE_STP.zip

DOWNLOAD

OSE-LHCM.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 20
Compatible optic thickness [mm]: 2 - 12
Centering adjustment range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.22
A [mm]: 20
B [mm]: 17
C [mm]: 58
D [mm]: 70
E [mm]: 27.5
F [mm]: 42
G [mm]: 29
H [mm]: 18
I [mm]: 6
J [mm]: 0.4
K [mm]: 17.6
L [mm]: 8-32UNC

Downloads

OSE-LHCM-20-UU_STP.zip

DOWNLOAD

OSE-LHCM.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 25
Compatible optic thickness [mm]: 2 - 12
Centering adjustment range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.23
A [mm]: 25
B [mm]: 22
C [mm]: 64
D [mm]: 77
E [mm]: 30
F [mm]: 46
G [mm]: 32
H [mm]: 18
I [mm]: 6
J [mm]: 0.8
K [mm]: 20.1
L [mm]: 8-32UNC

Downloads

OSE-LHCM-25-UU_STP.zip

DOWNLOAD

OSE-LHCM.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 25
Compatible optic thickness [mm]: 2 - 12
Centering adjustment range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.23
A [mm]: 25.4
B [mm]: 22
C [mm]: 64
D [mm]: 77
E [mm]: 30
F [mm]: 46
G [mm]: 32
H [mm]: 18
I [mm]: 6
J [mm]: 0.8
K [mm]: 20.1
L [mm]: 8-32UNC

Downloads

OSE-LHCM-25.4-UU_STP.zip

DOWNLOAD

OSE-LHCM.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 2 - 12
Centering adjustment range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.23
A [mm]: 30
B [mm]: 27
C [mm]: 64
D [mm]: 77
E [mm]: 30
F [mm]: 46
G [mm]: 32
H [mm]: 18
I [mm]: 6
J [mm]: 0.8
K [mm]: 20.1
L [mm]: 8-32UNC

Downloads

OSE-LHCM-30-UU_STP.zip

DOWNLOAD

OSE-LHCM.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 40
Compatible optic thickness [mm]: 2 - 14
Centering adjustment range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.26
A [mm]: 40
B [mm]: 36
C [mm]: 78
D [mm]: 90
E [mm]: 37.5
F [mm]: 52
G [mm]: 39
H [mm]: 20
I [mm]: 7
L [mm]: 8-32UNC

Downloads

OSE-LHCM-40-UU_STP.zip

DOWNLOAD

OSE-LHCM.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 40
Compatible optic thickness [mm]: 2 - 14
Centering adjustment range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.26
A [mm]: 50
B [mm]: 46
C [mm]: 88
D [mm]: 100
E [mm]: 42.5
F [mm]: 57
G [mm]: 44
H [mm]: 20
I [mm]: 7
L [mm]: 8-32UNC

Downloads

OSE-LHCM-50-N_STP.zip

DOWNLOAD

OSE-LHCM.pdf

DOWNLOAD

Holders.zip

DOWNLOAD

Compatible optics diameter [mm]: 50.8
Compatible optic thickness [mm]: 2 - 14
Centering adjustment range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.31
A [mm]: 50.8
B [mm]: 46
C [mm]: 88
D [mm]: 100
E [mm]: 42.5
F [mm]: 57
G [mm]: 44
H [mm]: 20
I [mm]: 7
L [mm]: 8-32UNC
