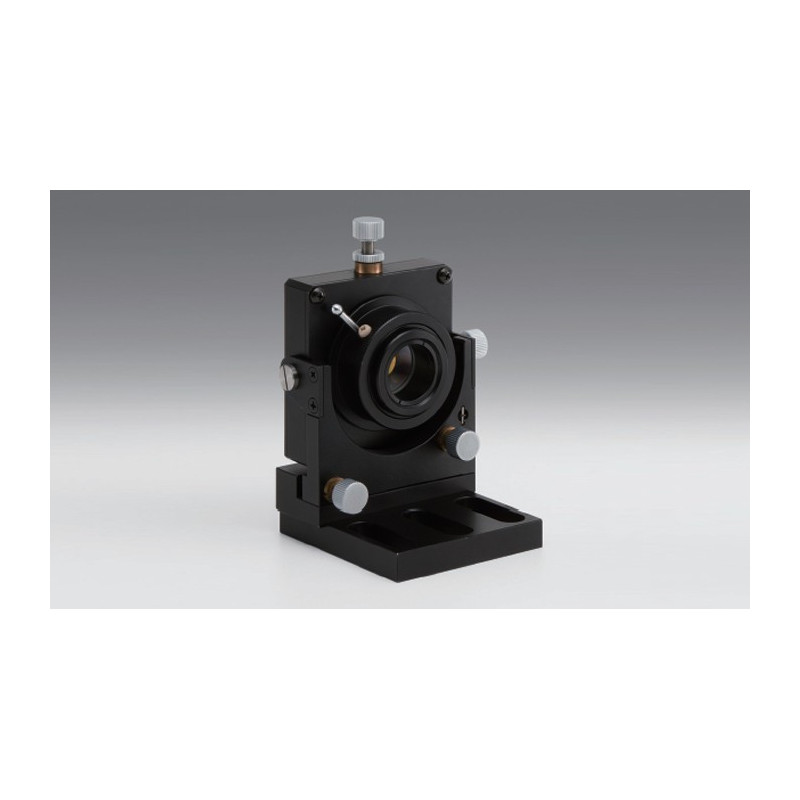

OSE-ALHN-3: Three-axis Lens Holders

Reference number: OSE-ALHN-25-3

Compatible Optics Diameter

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Compatible optics diameter [mm]: 25
Compatible optic thickness [mm]: 3 - 28
Centering adjustment range: 6
Centering adjustment resolution [mm/rotation]: 0.25
Focus adjustment range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.49
A [mm]: 68
B [mm]: 99.5
C [mm]: 63.5
D [mm]: 12.5
F [mm]: 25
G [mm]: 22
H [mm]: 75
I [mm]: 68
J [mm]: 41.3

Downloads

OSE-ALHN-25-3_STP.zip

OSE-ALHN-3_ALHN-5.pdf

Holders.zip

Compatible optics diameter [mm]: 25.4
Compatible optic thickness [mm]: 3 - 28
Centering adjustment range: 6
Centering adjustment resolution [mm/rotation]: 0.25
Focus adjustment range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.49
A [mm]: 68
B [mm]: 99.5
C [mm]: 63.5
D [mm]: 12.5
F [mm]: 25.4
G [mm]: 22
H [mm]: 75
I [mm]: 68
J [mm]: 41.3

Downloads

OSE-ALHN-25.4-3_STP.zip

OSE-ALHN-3_ALHN-5.pdf

Holders.zip

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 3 - 28
Centering adjustment range: 6
Centering adjustment resolution [mm/rotation]: 0.25
Focus adjustment range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.49
A [mm]: 68
B [mm]: 99.5
C [mm]: 63.5
D [mm]: 12.5
F [mm]: 30
G [mm]: 27
H [mm]: 75
I [mm]: 68
J [mm]: 41.3

Downloads

OSE-ALHN-30-3_STP.zip

OSE-ALHN-3_ALHN-5.pdf

Holders.zip

Compatible optics diameter [mm]: 50
Compatible optic thickness [mm]: 3 - 28
Centering adjustment range: 6
Centering adjustment resolution [mm/rotation]: 0.25
Focus adjustment range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.78
A [mm]: 88
B [mm]: 122.2
C [mm]: 76.2
D [mm]: 25
F [mm]: 50
G [mm]: 46
H [mm]: 95
I [mm]: 75
J [mm]: 59.8

Downloads

OSE-ALHN-50-3_STP.zip

OSE-ALHN-3_ALHN-5.pdf

Holders.zip

Compatible optics diameter [mm]: 50.8
Compatible optic thickness [mm]: 3 - 28
Centering adjustment range: 6
Centering adjustment resolution [mm/rotation]: 0.25
Focus adjustment range: 3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.78
A [mm]: 88
B [mm]: 122.2
C [mm]: 76.2
D [mm]: 25
F [mm]: 50.8
G [mm]: 46
H [mm]: 95
I [mm]: 75
J [mm]: 59.8

Downloads

OSE-ALHN-50.8-3_STP.zip

OSE-ALHN-3_ALHN-5.pdf

Holders.zip
