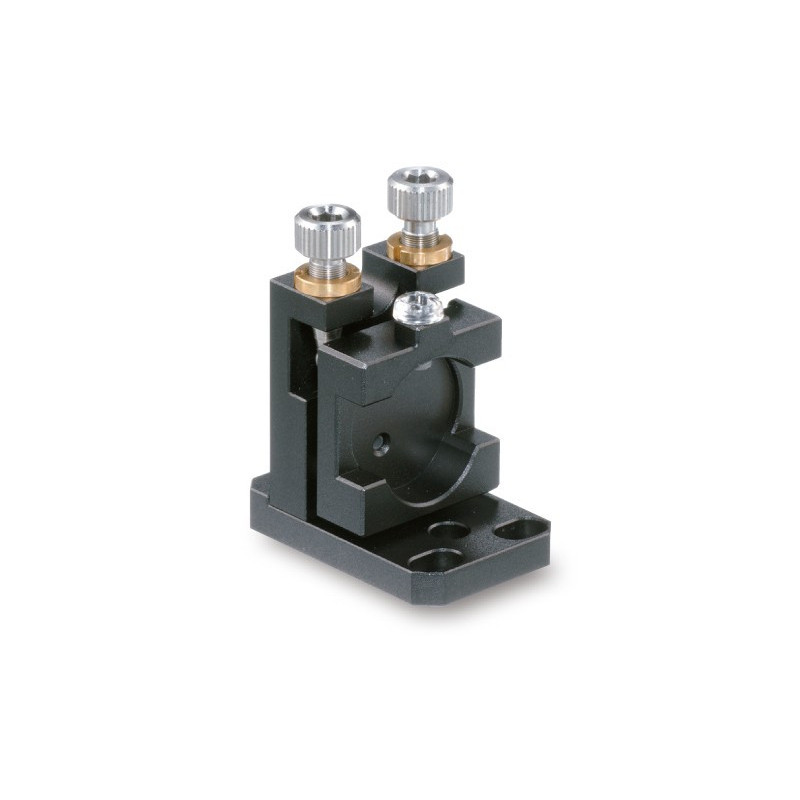

OSE-LMMH-R: Vertical control compact holders

Reference number: OSE-LMMH-10R

€110.40

Tax excluded

Option

Compatible Optics Diameter

Quantity

Delivery

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Those products may also interest you

OSE-MHAN-M: Gimballed Mirror Mounts

OSE-MHAN-M

€235.90
OSE-MHAN-S: Gimballed Mirror Mounts

OSE-MHAN-S

€186.70
OSE-MHAN-EE: Gimballed Mirror Mounts

OSE-MHAN-EE

€226.30
OSE-MHA: Gimballed Mirror Mounts

OSE-MHA

€377.20
OSE-MHAN-DM: Gimballed Mirror Mounts

OSE-MHAN-DM

€364.90

Compatible optics diameter [mm]: 10
Compatible optic thickness [mm]: 5
Adjustment range tilt ±[mm]: 2.5
Adjustment range rotation ±[mm]: 2.5
Resolution /tilt [°/rotation]: about 0.28
Resolution /rotation [°/rotation]: about 0.3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.03

Downloads

OSE-LMMH-10R_STP.zip

OSE-LMMH-R.pdf

Holders.zip

Compatible optics diameter [mm]: 10
Compatible optic thickness [mm]: 5
Adjustment range tilt ±[mm]: 2.5
Adjustment range rotation ±[mm]: 2.5
Resolution /tilt [°/rotation]: about 0.28
Resolution /rotation [°/rotation]: about 0.3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.025

Downloads

OSE-LMMH-10R-N_STP.zip

OSE-LMMH-R.pdf

Holders.zip

Compatible optics diameter [mm]: 12.7
Compatible optic thickness [mm]: 5
Adjustment range tilt ±[mm]: 2.5
Adjustment range rotation ±[mm]: 2.5
Resolution /tilt [°/rotation]: about 0.28
Resolution /rotation [°/rotation]: about 0.3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.03

Downloads

OSE-LMMH-12.7R_STP.zip

OSE-LMMH-R.pdf

Holders.zip

Compatible optics diameter [mm]: 12.7
Compatible optic thickness [mm]: 5
Adjustment range tilt ±[mm]: 2.5
Adjustment range rotation ±[mm]: 2.5
Resolution /tilt [°/rotation]: about 0.28
Resolution /rotation [°/rotation]: about 0.3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.025

Downloads

OSE-LMMH-12.7R-N_STP.zip

OSE-LMMH-R.pdf

Holders.zip

Compatible optics diameter [mm]: 15
Compatible optic thickness [mm]: 5
Adjustment range tilt ±[mm]: 2.5
Adjustment range rotation ±[mm]: 2.5
Resolution /tilt [°/rotation]: about 0.28
Resolution /rotation [°/rotation]: about 0.3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.03

Downloads

OSE-LMMH-15R_STP.zip

OSE-LMMH-R.pdf

Holders.zip

Compatible optics diameter [mm]: 15
Compatible optic thickness [mm]: 5
Adjustment range tilt ±[mm]: 2.5
Adjustment range rotation ±[mm]: 2.5
Resolution /tilt [°/rotation]: about 0.28
Resolution /rotation [°/rotation]: about 0.3
Primary material: Aluminium
Finish: Black Anodized
Weight [kg]: 0.025

Downloads

OSE-LMMH-15R-N_STP.zip

OSE-LMMH-R.pdf

Holders.zip
