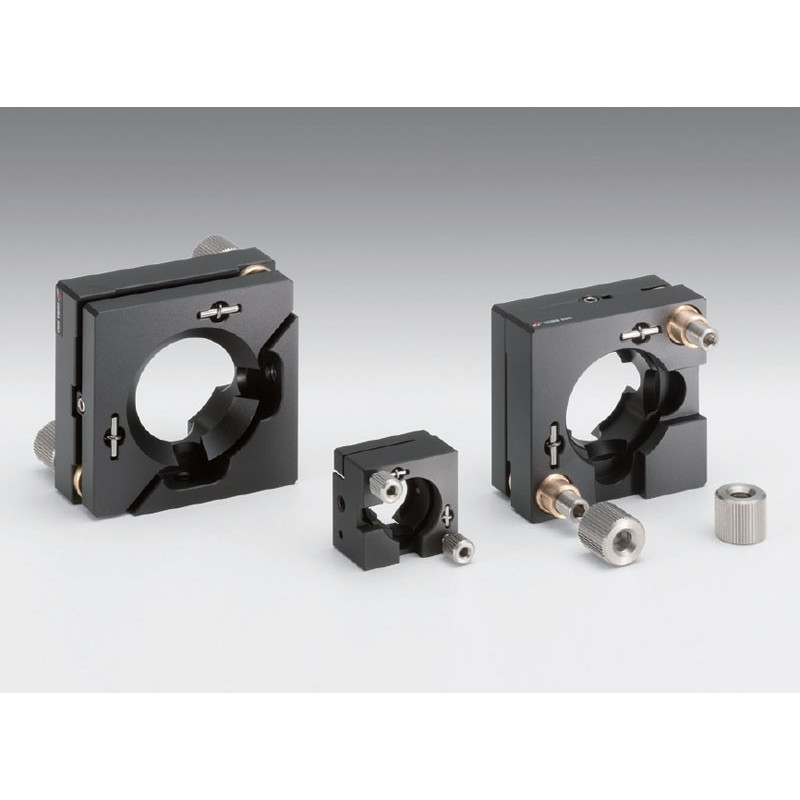

OSE-MHI: Kinematic Center Mirror Mounts

Reference number: OSE-MHI-12.7

€90.60

Tax excluded

Option

Compatible Optics Diameter

Quantity

Delivery

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Those products may also interest you

OSE-MHAN-M: Gimballed Mirror Mounts

OSE-MHAN-M

€235.90
OSE-MHAN-S: Gimballed Mirror Mounts

OSE-MHAN-S

€186.70
OSE-MHAN-EE: Gimballed Mirror Mounts

OSE-MHAN-EE

€226.30
OSE-MHA: Gimballed Mirror Mounts

OSE-MHA

€377.20
OSE-MHAN-DM: Gimballed Mirror Mounts

OSE-MHAN-DM

€364.90

Compatible optics diameter [mm]: 12.7
Compatible optic thickness [mm]: 2 - 9
Clear/input aperture: 10.7
Adjustment range tilt ±[mm]: 3
Adjustment range rotation ±[mm]: 3
Resolution /tilt [°/rotation]: about 0.74
Resolution /rotation [°/rotation]: about 0.74
Primary material: Aluminum (Brass only for MHI-12.7)
Finish: Black Anodized (Super Black Chrome only for MHI-12.7)
Weight [kg]: 0.05

Downloads

OSE-MHI-12.7_STP.zip

OSE-MHI.pdf

Holders.zip

Compatible optics diameter [mm]: 25.4
Compatible optic thickness [mm]: 3 10
Clear/input aperture: 23
Adjustment range tilt ±[mm]: 1.5
Adjustment range rotation ±[mm]: 1.5
Resolution /tilt [°/rotation]: about 0.4
Resolution /rotation [°/rotation]: about 0.4
Primary material: Aluminum (Brass only for MHI-12.7)
Finish: Black Anodized (Super Black Chrome only for MHI-12.7)
Weight [kg]: 0.12

Downloads

OSE-MHI-25.4_STP.zip

OSE-MHI.pdf

Holders.zip

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 3 10
Clear/input aperture: 27
Adjustment range tilt ±[mm]: 1.5
Adjustment range rotation ±[mm]: 1.5
Resolution /tilt [°/rotation]: about 0.35
Resolution /rotation [°/rotation]: about 0.35
Primary material: Aluminum (Brass only for MHI-12.7)
Finish: Black Anodized (Super Black Chrome only for MHI-12.7)
Weight [kg]: 0.13

Downloads

OSE-MHI-30_STP.zip

OSE-MHI.pdf

Holders.zip

Compatible optics diameter [mm]: 25.4
Compatible optic thickness [mm]: 3 - 10
Clear/input aperture: 23
Adjustment range tilt ±[mm]: 1.5
Adjustment range rotation ±[mm]: 1.5
Resolution /tilt [°/rotation]: about 0.4
Resolution /rotation [°/rotation]: about 0.4
Primary material: Aluminum (Brass only for MHI-12.7)
Finish: Black Anodized (Super Black Chrome only for MHI-12.7)
Weight [kg]: 0.12

Downloads

OSE-MHI-25.4-UU_STP.zip

OSE-MHI.pdf

Holders.zip

Compatible optics diameter [mm]: 30
Compatible optic thickness [mm]: 3 - 10
Clear/input aperture: 27
Adjustment range tilt ±[mm]: 1.5
Adjustment range rotation ±[mm]: 1.5
Resolution /tilt [°/rotation]: about 0.35
Resolution /rotation [°/rotation]: about 0.35
Primary material: Aluminum (Brass only for MHI-12.7)
Finish: Black Anodized (Super Black Chrome only for MHI-12.7)
Weight [kg]: 0.13

Downloads

OSE-MHI-30-UU_STP.zip

OSE-MHI.pdf

Holders.zip
