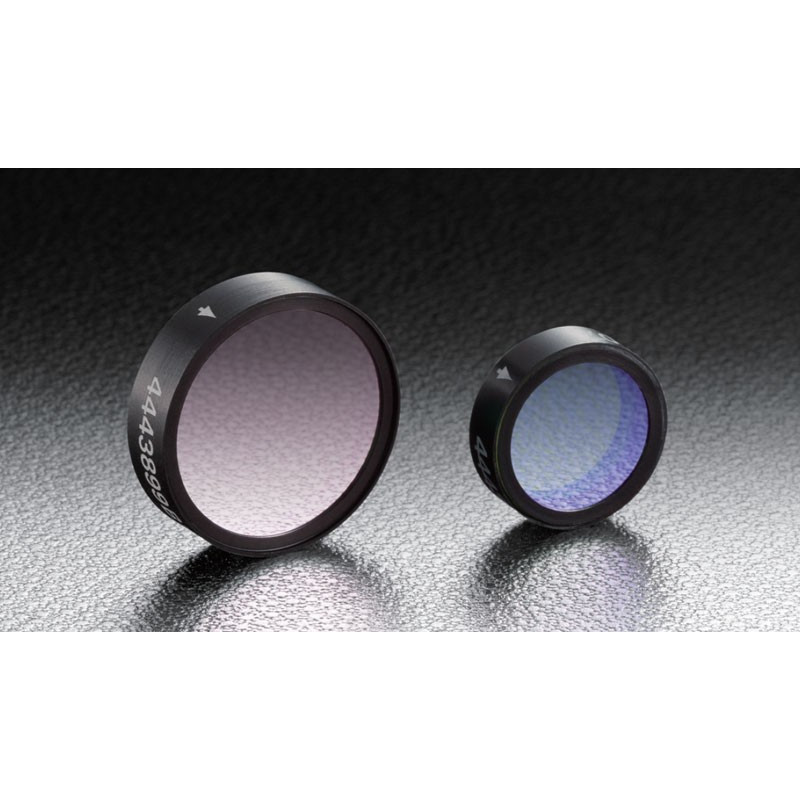

Laser Line Filters

Reference number: OSE-VPFHT-12.5C-3250

This filter can extract light in a specific wavelength range.

Diameter in mm

Center wavelength in nm

Diameter in mm

Center wavelength in nm

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Surface Quality: 60-40

Diameter ØD [mm]: Ø12.5

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 325

Half bandwidth [nm]: 1.75±0.55

Short wavelength Blocking range OD5 Range: 291.0-321.8

Short wavelength Blocking range OD6 Range: 299.0 - 320.1

Long wavelength Blocking range OD 5 Range: 328.3 - 380.7

Long wavelength Blocking range OD 6 Range: 329.9 - 357.5

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø25

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 325

Half bandwidth [nm]: 1.75±0.55

Short wavelength Blocking range OD5 Range: 291.0-321.8

Short wavelength Blocking range OD6 Range: 299.0 - 320.1

Long wavelength Blocking range OD 5 Range: 328.3 - 380.7

Long wavelength Blocking range OD 6 Range: 329.9 - 357.5

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø12.5

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 355

Half bandwidth [nm]: 1.9± 0.6

Short wavelength Blocking range OD5 Range: 314.8-351.8

Short wavelength Blocking range OD6 Range: 326.6 - 349.7

Long wavelength Blocking range OD 5 Range: 358.6 - 422.5

Long wavelength Blocking range OD 6 Range: 360.3 - 390.5

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø25

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 355

Half bandwidth [nm]: 1.9± 0.6

Short wavelength Blocking range OD5 Range: 314.8-351.8

Short wavelength Blocking range OD6 Range: 326.6 - 349.7

Long wavelength Blocking range OD 5 Range: 358.6 - 422.5

Long wavelength Blocking range OD 6 Range: 360.3 - 390.5

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø12.5

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 364

Half bandwidth [nm]: 1.95±0.55

Short wavelength Blocking range OD5 Range: 321.7-360.2

Short wavelength Blocking range OD6 Range: 334.7 - 358.3

Long wavelength Blocking range OD 5 Range: 367.4 - 435.0

Long wavelength Blocking range OD 6 Range: 369.3 - 400.2

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø25

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 364

Half bandwidth [nm]: 1.95±0.55

Short wavelength Blocking range OD5 Range: 321.7-360.2

Short wavelength Blocking range OD6 Range: 334.7 - 358.3

Long wavelength Blocking range OD 5 Range: 367.4 - 435.0

Long wavelength Blocking range OD 6 Range: 369.3 - 400.2

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø12.5

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 372

Half bandwidth [nm]: 2.0±0.6

Short wavelength Blocking range OD5 Range: 328.1-368.3

Short wavelength Blocking range OD6 Range: 342.0 - 366.4

Long wavelength Blocking range OD 5 Range: 375.7 - 446.8

Long wavelength Blocking range OD 6 Range: 377.6 - 409.2

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø25

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 372

Half bandwidth [nm]: 2.0±0.6

Short wavelength Blocking range OD5 Range: 328.1-368.3

Short wavelength Blocking range OD6 Range: 342.0 - 366.4

Long wavelength Blocking range OD 5 Range: 375.7 - 446.8

Long wavelength Blocking range OD 6 Range: 377.6 - 409.2

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø12.5

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 442

Half bandwidth [nm]: 2.4±0.7

Short wavelength Blocking range OD5 Range: 381.0 - 437.2

Short wavelength Blocking range OD6 Range: 406.3 - 435.0

Long wavelength Blocking range OD 5 Range: 446.0 - 551.1

Long wavelength Blocking range OD 6 Range: 448.2 - 485.8

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø25

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 442

Half bandwidth [nm]: 2.4±0.7

Short wavelength Blocking range OD5 Range: 381.0 - 437.2

Short wavelength Blocking range OD6 Range: 406.3 - 435.0

Long wavelength Blocking range OD 5 Range: 446.0 - 551.1

Long wavelength Blocking range OD 6 Range: 448.2 - 485.8

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø12.5

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 458

Half bandwidth [nm]: 2.45±0.75

Short wavelength Blocking range OD5 Range: 393.1 - 453.3

Short wavelength Blocking range OD6 Range: 421.3 - 451.0

Long wavelength Blocking range OD 5 Range: 462.5 - 576.7

Long wavelength Blocking range OD 6 Range: 464.8 - 503.7

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø25

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 458

Half bandwidth [nm]: 2.45±0.75

Short wavelength Blocking range OD5 Range: 393.1 - 453.3

Short wavelength Blocking range OD6 Range: 421.3 - 451.0

Long wavelength Blocking range OD 5 Range: 462.5 - 576.7

Long wavelength Blocking range OD 6 Range: 464.8 - 503.7

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø12.5

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 488

Half bandwidth [nm]: 2.65±0.75

Short wavelength Blocking range OD5 Range: 415.1 - 483.1

Short wavelength Blocking range OD6 Range: 449.0 - 480.7

Long wavelength Blocking range OD 5 Range: 492.9 - 625.3

Long wavelength Blocking range OD 6 Range: 495.3 - 536.8

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø25

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 488

Half bandwidth [nm]: 2.65±0.75

Short wavelength Blocking range OD5 Range: 415.1 - 483.1

Short wavelength Blocking range OD6 Range: 449.0 - 480.7

Long wavelength Blocking range OD 5 Range: 492.9 - 625.3

Long wavelength Blocking range OD 6 Range: 495.3 - 536.8

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø12.5

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 491

Half bandwidth [nm]: 2.65±0.75

Short wavelength Blocking range OD5 Range: 417.2 - 486.1

Short wavelength Blocking range OD6 Range: 451.7 - 483.6

Long wavelength Blocking range OD 5 Range: 495.9 - 630.3

Long wavelength Blocking range OD 6 Range: 498.4 - 540.1

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø25

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 491

Half bandwidth [nm]: 2.65±0.75

Short wavelength Blocking range OD5 Range: 417.2 - 486.1

Short wavelength Blocking range OD6 Range: 451.7 - 483.6

Long wavelength Blocking range OD 5 Range: 495.9 - 630.3

Long wavelength Blocking range OD 6 Range: 498.4 - 540.1

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø12.5

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 515

Half bandwidth [nm]: 2.8±0.8

Short wavelength Blocking range OD5 Range: 434.1 - 509.4

Short wavelength Blocking range OD6 Range: 473.3 - 506.8

Long wavelength Blocking range OD 5 Range: 519.6 - 669.5

Long wavelength Blocking range OD 6 Range: 522.2 - 566.0

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø25

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 515

Half bandwidth [nm]: 2.8±0.8

Short wavelength Blocking range OD5 Range: 434.1 - 509.4

Short wavelength Blocking range OD6 Range: 473.3 - 506.8

Long wavelength Blocking range OD 5 Range: 519.6 - 669.5

Long wavelength Blocking range OD 6 Range: 522.2 - 566.0

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø12.5

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 532

Half bandwidth [nm]: 2.87±0.85

Short wavelength Blocking range OD5 Range: 447.0 - 527.0

Short wavelength Blocking range OD6 Range: 489.0 - 524.0

Long wavelength Blocking range OD 5 Range: 537.0 - 699.0

Long wavelength Blocking range OD 6 Range: 540.0 - 585.0

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø25

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 532

Half bandwidth [nm]: 2.87±0.85

Short wavelength Blocking range OD5 Range: 447.0 - 527.0

Short wavelength Blocking range OD6 Range: 489.0 - 524.0

Long wavelength Blocking range OD 5 Range: 537.0 - 699.0

Long wavelength Blocking range OD 6 Range: 540.0 - 585.0

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø12.5

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 544

Half bandwidth [nm]: 2.95±0.85

Short wavelength Blocking range OD5 Range: 454.6 - 538.1

Short wavelength Blocking range OD6 Range: 500.0 - 535.3

Long wavelength Blocking range OD 5 Range: 548.9 - 719.5

Long wavelength Blocking range OD 6 Range: 551.7 - 597.9

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø25

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 544

Half bandwidth [nm]: 2.95±0.85

Short wavelength Blocking range OD5 Range: 454.6 - 538.1

Short wavelength Blocking range OD6 Range: 500.0 - 535.3

Long wavelength Blocking range OD 5 Range: 548.9 - 719.5

Long wavelength Blocking range OD 6 Range: 551.7 - 597.9

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø12.5

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 561

Half bandwidth [nm]: 3.0±0.9

Short wavelength Blocking range OD5 Range: 467.0 - 555.8

Short wavelength Blocking range OD6 Range: 516.5 - 553.0

Long wavelength Blocking range OD 5 Range: 567.0 - 751.2

Long wavelength Blocking range OD 6 Range: 569.8 - 617.5

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø25

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 561

Half bandwidth [nm]: 3.0±0.9

Short wavelength Blocking range OD5 Range: 467.0 - 555.8

Short wavelength Blocking range OD6 Range: 516.5 - 553.0

Long wavelength Blocking range OD 5 Range: 567.0 - 751.2

Long wavelength Blocking range OD 6 Range: 569.8 - 617.5

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø12.5

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 568

Half bandwidth [nm]: 3.1±0.9

Short wavelength Blocking range OD5 Range: 471.7 - 562.5

Short wavelength Blocking range OD6 Range: 522.7 - 559.7

Long wavelength Blocking range OD 5 Range: 573.9 - 763.4

Long wavelength Blocking range OD 6 Range: 576.7 - 625.0

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø25

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 568

Half bandwidth [nm]: 3.1±0.9

Short wavelength Blocking range OD5 Range: 471.7 - 562.5

Short wavelength Blocking range OD6 Range: 522.7 - 559.7

Long wavelength Blocking range OD 5 Range: 573.9 - 763.4

Long wavelength Blocking range OD 6 Range: 576.7 - 625.0

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø12.5

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 633

Half bandwidth [nm]: 3.4±1.0

Short wavelength Blocking range OD5 Range: 515.4 - 626.5

Short wavelength Blocking range OD6 Range: 582.2 - 623.3

Long wavelength Blocking range OD 5 Range: 639.1 - 884.7

Long wavelength Blocking range OD 6 Range: 642.3 - 696.1

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø25

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 633

Half bandwidth [nm]: 3.4±1.0

Short wavelength Blocking range OD5 Range: 515.4 - 626.5

Short wavelength Blocking range OD6 Range: 582.2 - 623.3

Long wavelength Blocking range OD 5 Range: 639.1 - 884.7

Long wavelength Blocking range OD 6 Range: 642.3 - 696.1

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø12.5

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 647

Half bandwidth [nm]: 3.5±1.0

Short wavelength Blocking range OD5 Range: 524.8 - 640.6

Short wavelength Blocking range OD6 Range: 595.3 - 637.4

Long wavelength Blocking range OD 5 Range: 653.6 - 912.9

Long wavelength Blocking range OD 6 Range: 656.8 - 711.8

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø25

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 647

Half bandwidth [nm]: 3.5±1.0

Short wavelength Blocking range OD5 Range: 524.8 - 640.6

Short wavelength Blocking range OD6 Range: 595.3 - 637.4

Long wavelength Blocking range OD 5 Range: 653.6 - 912.9

Long wavelength Blocking range OD 6 Range: 656.8 - 711.8

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø12.5

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 671

Half bandwidth [nm]: 3.65±1.05

Short wavelength Blocking range OD5 Range: 540.4 - 664.3

Short wavelength Blocking range OD6 Range: 617.3 - 660.9

Long wavelength Blocking range OD 5 Range: 677.7 - 961.2

Long wavelength Blocking range OD 6 Range: 681.1 - 738.1

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø25

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 671

Half bandwidth [nm]: 3.65±1.05

Short wavelength Blocking range OD5 Range: 540.4 - 664.3

Short wavelength Blocking range OD6 Range: 617.3 - 660.9

Long wavelength Blocking range OD 5 Range: 677.7 - 961.2

Long wavelength Blocking range OD 6 Range: 681.1 - 738.1

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø12.5

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 780

Half bandwidth [nm]: 4.25±1.25

Short wavelength Blocking range OD5 Range: 609.0 - 772.2

Short wavelength Blocking range OD6 Range: 717.6 - 768.3

Long wavelength Blocking range OD 5 Range: 787.8 - 1201.8

Long wavelength Blocking range OD 6 Range: 791.7 - 858.0

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø25

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 780

Half bandwidth [nm]: 4.25±1.25

Short wavelength Blocking range OD5 Range: 609.0 - 772.2

Short wavelength Blocking range OD6 Range: 717.6 - 768.3

Long wavelength Blocking range OD 5 Range: 787.8 - 1201.8

Long wavelength Blocking range OD 6 Range: 791.7 - 858.0

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø12.5

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 785

Half bandwidth [nm]: 4.25±1.27

Short wavelength Blocking range OD5 Range: 612.0 - 777.0

Short wavelength Blocking range OD6 Range: 722.0 - 773.0

Long wavelength Blocking range OD 5 Range: 793.0 - 1214.0

Long wavelength Blocking range OD 6 Range: 797.0 - 864.0

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø25

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 785

Half bandwidth [nm]: 4.25±1.27

Short wavelength Blocking range OD5 Range: 612.0 - 777.0

Short wavelength Blocking range OD6 Range: 722.0 - 773.0

Long wavelength Blocking range OD 5 Range: 793.0 - 1214.0

Long wavelength Blocking range OD 6 Range: 797.0 - 864.0

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø12.5

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 808

Half bandwidth [nm]: 4.4±1.3

Short wavelength Blocking range OD5 Range: 625.9 - 799.9

Short wavelength Blocking range OD6 Range: 743.4 - 795.9

Long wavelength Blocking range OD 5 Range: 816.1 - 1039.4

Long wavelength Blocking range OD 6 Range: 820.1 - 888.8

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø25

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 808

Half bandwidth [nm]: 4.4±1.3

Short wavelength Blocking range OD5 Range: 625.9 - 799.9

Short wavelength Blocking range OD6 Range: 743.4 - 795.9

Long wavelength Blocking range OD 5 Range: 816.1 - 1039.4

Long wavelength Blocking range OD 6 Range: 820.1 - 888.8

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø12.5

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 830

Half bandwidth [nm]: 4.5±1.3

Short wavelength Blocking range OD5 Range: 639.1 - 821.7

Short wavelength Blocking range OD6 Range: 763.6 - 817.6

Long wavelength Blocking range OD 5 Range: 838.3 - 1067.9

Long wavelength Blocking range OD 6 Range: 842.5 - 913.0

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø25

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 830

Half bandwidth [nm]: 4.5±1.3

Short wavelength Blocking range OD5 Range: 639.1 - 821.7

Short wavelength Blocking range OD6 Range: 763.6 - 817.6

Long wavelength Blocking range OD 5 Range: 838.3 - 1067.9

Long wavelength Blocking range OD 6 Range: 842.5 - 913.0

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø12.5

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 852

Half bandwidth [nm]: 4.6±1.4

Short wavelength Blocking range OD5 Range: 652.0 - 843.5

Short wavelength Blocking range OD6 Range: 783.8 - 839.2

Long wavelength Blocking range OD 5 Range: 860.5 - 1106.6

Long wavelength Blocking range OD 6 Range: 864.8 - 937.2

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø25

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 852

Half bandwidth [nm]: 4.6±1.4

Short wavelength Blocking range OD5 Range: 652.0 - 843.5

Short wavelength Blocking range OD6 Range: 783.8 - 839.2

Long wavelength Blocking range OD 5 Range: 860.5 - 1106.6

Long wavelength Blocking range OD 6 Range: 864.8 - 937.2

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø12.5

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 976

Half bandwidth [nm]: 5.25±1.55

Short wavelength Blocking range OD5 Range: 722.2 - 966.2

Short wavelength Blocking range OD6 Range: 897.9 - 961.4

Long wavelength Blocking range OD 5 Range: 985.8 - 1325.2

Long wavelength Blocking range OD 6 Range: 990.6 - 1073.6

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø25

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 976

Half bandwidth [nm]: 5.25±1.55

Short wavelength Blocking range OD5 Range: 722.2 - 966.2

Short wavelength Blocking range OD6 Range: 897.9 - 961.4

Long wavelength Blocking range OD 5 Range: 985.8 - 1325.2

Long wavelength Blocking range OD 6 Range: 990.6 - 1073.6

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø12.5

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 980

Half bandwidth [nm]: 5.3±1.6

Short wavelength Blocking range OD5 Range: 724.4 - 970.2

Short wavelength Blocking range OD6 Range: 901.6 - 965.3

Long wavelength Blocking range OD 5 Range: 989.8 - 1332.6

Long wavelength Blocking range OD 6 Range: 994.7 - 1078.0

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø25

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 980

Half bandwidth [nm]: 5.3±1.6

Short wavelength Blocking range OD5 Range: 724.4 - 970.2

Short wavelength Blocking range OD6 Range: 901.6 - 965.3

Long wavelength Blocking range OD 5 Range: 989.8 - 1332.6

Long wavelength Blocking range OD 6 Range: 994.7 - 1078.0

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø12.5

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 1047

Half bandwidth [nm]: 5.65±1.65

Short wavelength Blocking range OD5 Range: 963.3 - 1036.6

Short wavelength Blocking range OD6 Range: 963.3 - 1031.4

Long wavelength Blocking range OD 5 Range: 1057.6 - 1398.6

Long wavelength Blocking range OD 6 Range: 1062.8 - 1151.8

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø25

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 1047

Half bandwidth [nm]: 5.65±1.65

Short wavelength Blocking range OD5 Range: 963.3 - 1036.6

Short wavelength Blocking range OD6 Range: 963.3 - 1031.4

Long wavelength Blocking range OD 5 Range: 1057.6 - 1398.6

Long wavelength Blocking range OD 6 Range: 1062.8 - 1151.8

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø12.5

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 1064

Half bandwidth [nm]: 5.75±1.71

Short wavelength Blocking range OD5 Range: 979.0 - 1053.0

Short wavelength Blocking range OD6 Range: 979.0 - 1048.0

Long wavelength Blocking range OD 5 Range: 1075.0 - 1429.0

Long wavelength Blocking range OD 6 Range: 1080.0 - 1170.0

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD

Surface Quality: 60-40

Diameter ØD [mm]: Ø25

Coating: Dielectric multi-layer coating

Center wavelength [nm]: 1064

Half bandwidth [nm]: 5.75±1.71

Short wavelength Blocking range OD5 Range: 979.0 - 1053.0

Short wavelength Blocking range OD6 Range: 979.0 - 1048.0

Long wavelength Blocking range OD 5 Range: 1075.0 - 1429.0

Long wavelength Blocking range OD 6 Range: 1080.0 - 1170.0

Incident angle: 0°

Downloads

OSE-vpfht.pdf

DOWNLOAD

VPFHT.zip

DOWNLOAD
