Reference number: GEE-GERE-FLAT-DOME

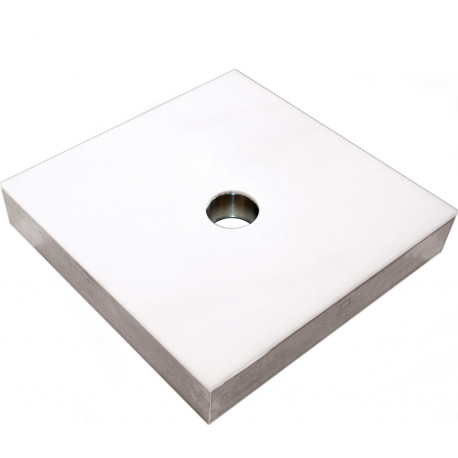

Genesi lighting panels for cameras and diffused light illuminators, continuous or strobe use, standard and custom dimensions
Need more info?
Contact our expert.
Machine Vision Team
Phone: +49 8153 405-11
Description
|
Lighting type |
Flat Dome |
|
Optical properties |
|
|
Lightcolor |
6K, 4K, 3K, IR850, IR940, UV365-405, Red, Blue, Green, RGB, custom |
|
Hole diameter [mm] |
30, 40, 60, custom |
|
Outer dimensions |
see datasheet |
|
Cover lens variants |
Opaline, transparent, collimating, polarized |
|
Typical luminous flux [lm] |
3,450 - 16,125 |
|
Electrical properties |
|
|
Supply voltage [V] |
24 +/- 10% |
|
Power consumption [W] |
25 - 107.5 |
|
Current per LED [mA] |
Standard, CC, 100, custom |
|
Supply connection |
Standard, M8, M12, S, M8S, M12S, 5M, 5MS, custom |
|
Mechanical properties |
|
|
dimensions |
see datasheet |
|
Working temperature range [°C] |
0 to +40 |
|
IP rating |
40, 54 |
