Reference number: PHT-PHOX

Fastest Camera Link fiber adapter for all camera link configurations. High transmission bandwith for distances up to 80 km.

alt

Need more info?
Contact our expert.

Machine Vision Team
Phone: +49 8153 405-11

Description

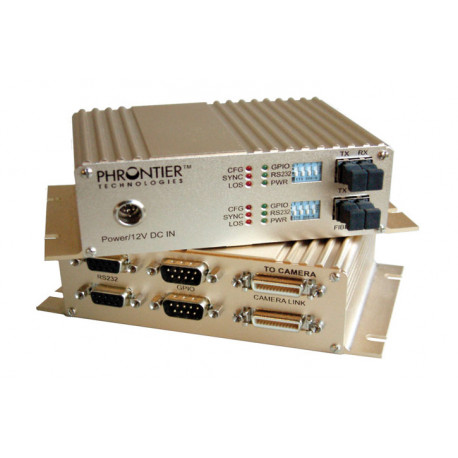

PHOX Camera Link Fiber Adapter

For all applications where a high transmission bandwith and/or long transmission distances are required. Several models are available to suit your Camera Links variant the best possible way. Transmission distances of the Camera Link signal of up to 80 km are no longer a problem.

Key features

  • Up to 10 Gb/s effective transmission bandwidth
  • Plug and play - No programming necessary
  • Optional 2- fiber LC duplex or 1-fiber LC simplex optical interface
  • Includes additional 4 GPIO channels (2 inputs and 2 outputs), a full duplex RS232 and a full duplex RS422 for external trigger and remote instrument control
  • 5 V - 24 V power supply
  • Transmission distances of up to 300 m (multi-mode) or 80 km (single mode)
  • CWDM-specific and single fiber options available upon request
  • Dimensions (LxWxH) - 147 mm x 88 mm x 41.25 mm

Available models

Full

10x8, 8x8 bit, 85 MHz

Model transmission distance
PHT-PHOX-FEM-300 300 m (Multi-mode duplex)
PHT-PHOX-FE-S10 10 km (Single-mode duplex)
PHT-PHOX-FE-S20 20 km (Single-mode duplex)
PHT-PHOX-FE-Cxx CWDM  (Single mode)
PHT-PHOX-FE-B10 10 km (Single mode simplex)
PHT-PHOX-FE-B20 20 km (Single mode simplex)

10x8, 8x10 bit, 85 MHz

Model transmission distance
PHT-PHOX-FD-M300 Up to 300 m (Multi-mode duplex)
PHT-PHOX-FD-S10 - S80 Up to 80km (Single-mode duplex)
PHT-PHOX-FD-B10 - B80 Up to 80 km (Single-mode simplex)
PHT-PHOX-FD-Cxx CWDM  (Single mode)


Included items

  • 1x PHOX-CM (transmitter)
  • 1x PHOX-FG (receiver)
  • 2x 12V DC output international wall mount AC/DC power adapters with cable assembly
