Motorized Beam Expander

Reference number: OGA-MEX18-6121

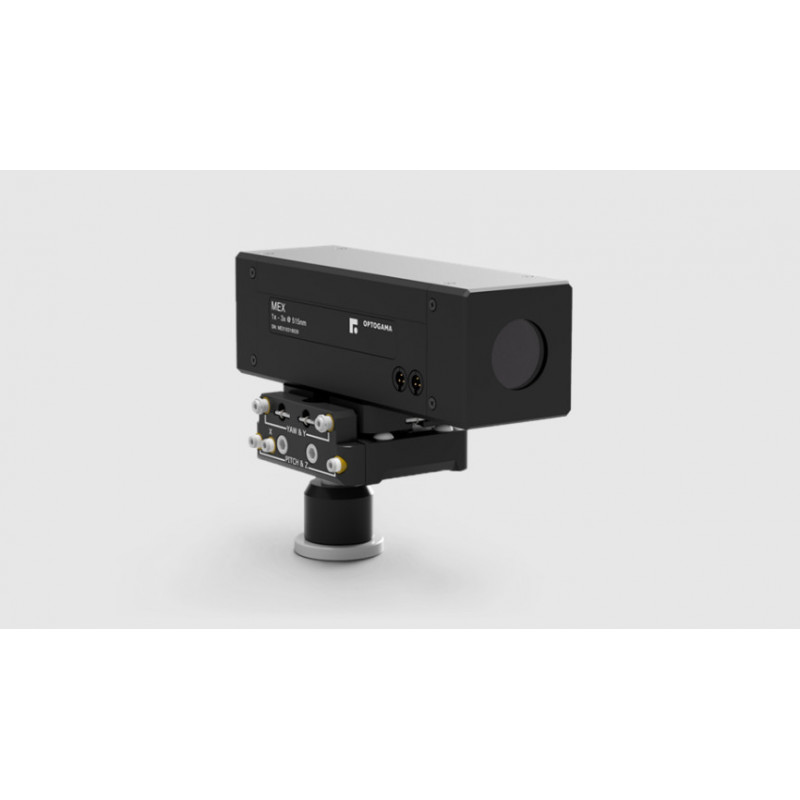

Compact motorized laser beam expander OGA-MEX

Expansion

Design wavelength in nm

Need more info?
Contact our expert.

Optics & Optomechanics Team
Phone: +49 8153 405-11

Description

Main features:

Highest beam pointing stability (< 0.1 mrad)
Fused silica optical elements
Integrated controllers
No homing after switch on/off
Diffraction limited performance for all magnifications

Application examples:

Precise laser micromachining
Life sciences
Research

Those products may also interest you

High Power Motorized Beam Expander

OGA-MEX-HP

ON DEMAND
Laser Power Attenuator

OGA-LPA

ON DEMAND
Advanced Laser Power Attenuator

OGA-LPA-A

ON DEMAND
Manual Laser Power Attenuator

OGA-LPA-M

ON DEMAND
Beam Delivery System

OGA-BDS

ON DEMAND

Compact motorized laser beam expander OGA-MEX

Main features:

Highest beam pointing stability (< 0.1 mrad)
Fused silica optical elements
Integrated controllers
No homing after switch on/off
Diffraction limited performance for all magnifications

Application examples:

Precise laser micromachining
Life sciences
Research

Specifications:

Adjustment: Motorized
Divergence: Adjustable
Clear Input Aperture: 11.5 mm
Lens Material: UVFS
Transmission: > 97 %
Controller: Integrated
Control Interface: USB or RS232
Housing material: Black anodized aluminium
LIDT: 10 J/cm² (10 ns @1064 nm)
Expansion: 1.0x - 8.0x
Design Wavelength: 343 - 355 nm
Pointing stability: < 0.5 mrad
Clear Input Aperture: 11.5 mm
Clear Output Aperture: 38 mm
Recommended MAX Input Beam Diameter (1/E2): Ø 7 mm (1x) - Ø 5 mm (5x) - Ø 3 mm (8x)
Dimensions (H x W x L): 45 x 45 x 237 mm

Downloads

Compact motorized laser beam expander OGA-MEX

Main features:

Highest beam pointing stability (< 0.1 mrad)
Fused silica optical elements
Integrated controllers
No homing after switch on/off
Diffraction limited performance for all magnifications

Application examples:

Precise laser micromachining
Life sciences
Research

Specifications:

Adjustment: Motorized
Divergence: Adjustable
Clear Input Aperture: 11.5 mm
Lens Material: UVFS
Transmission: > 97 %
Controller: Integrated
Control Interface: USB or RS232
Housing material: Black anodized aluminium
LIDT: 10 J/cm² (10 ns @1064 nm)
Expansion: 1.0x - 3.0x
Design Wavelength: 515 - 532 + 343 - 355 nm
Pointing stability: < 0.5 mrad
Clear Input Aperture: 11.5 mm
Clear Output Aperture: 23 mm
Recommended MAX Input Beam Diameter (1/E2): Ø 7 mm (1x) - Ø 6 mm (3x)
Dimensions (H x W x L): 45 x 45 x 140 mm

Downloads

CE_OGA_MEX13.pdf

DOWNLOAD

OGA_MEX_manual.pdf

DOWNLOAD

OGA_MEX13.step

DOWNLOAD

OGA_MEX13_drawing.pdf

DOWNLOAD

Katalog_OGA_2020___Laser_2000.pdf

DOWNLOAD

Compact motorized laser beam expander OGA-MEX

Main features:

Highest beam pointing stability (< 0.1 mrad)
Fused silica optical elements
Integrated controllers
No homing after switch on/off
Diffraction limited performance for all magnifications

Application examples:

Precise laser micromachining
Life sciences
Research

Specifications:

Adjustment: Motorized
Divergence: Adjustable
Clear Input Aperture: 11.5 mm
Lens Material: UVFS
Transmission: > 97 %
Controller: Integrated
Control Interface: USB or RS232
Housing material: Black anodized aluminium
LIDT: 10 J/cm² (10 ns @1064 nm)
Expansion: 1.0x - 3.0x
Design Wavelength: 1030 - 1064 nm
Pointing stability: < 0.5 mrad
Clear Input Aperture: 11.5 mm
Clear Output Aperture: 23 mm
Recommended MAX Input Beam Diameter (1/E2): Ø 7 mm (1x) - Ø 6 mm (3x)
Dimensions (H x W x L): 45 x 45 x 140 mm

Downloads

CE_OGA_MEX13.pdf

DOWNLOAD

OGA_MEX_manual.pdf

DOWNLOAD

OGA_MEX13.step

DOWNLOAD

OGA_MEX13_drawing.pdf

DOWNLOAD

Katalog_OGA_2020___Laser_2000.pdf

DOWNLOAD

Compact motorized laser beam expander OGA-MEX

Main features:

Highest beam pointing stability (< 0.1 mrad)
Fused silica optical elements
Integrated controllers
No homing after switch on/off
Diffraction limited performance for all magnifications

Application examples:

Precise laser micromachining
Life sciences
Research

Specifications:

Adjustment: Motorized
Divergence: Adjustable
Clear Input Aperture: 11.5 mm
Lens Material: UVFS
Transmission: > 97 %
Controller: Integrated
Control Interface: USB or RS232
Housing material: Black anodized aluminium
LIDT: 10 J/cm² (10 ns @1064 nm)
Expansion: 1.0x - 3.0x
Design Wavelength: 515 -532 nm
Pointing stability: < 0.5 mrad
Clear Input Aperture: 11.5 mm
Clear Output Aperture: 23 mm
Recommended MAX Input Beam Diameter (1/E2): Ø 7 mm (1x) - Ø 6 mm (3x)
Dimensions (H x W x L): 45 x 45 x 140 mm

Downloads

CE_OGA_MEX13.pdf

DOWNLOAD

OGA_MEX_manual.pdf

DOWNLOAD

OGA_MEX13.step

DOWNLOAD

OGA_MEX13_drawing.pdf

DOWNLOAD

Katalog_OGA_2020___Laser_2000.pdf

DOWNLOAD

Compact motorized laser beam expander OGA-MEX

Main features:

Highest beam pointing stability (< 0.1 mrad)
Fused silica optical elements
Integrated controllers
No homing after switch on/off
Diffraction limited performance for all magnifications

Application examples:

Precise laser micromachining
Life sciences
Research

Specifications:

Adjustment: Motorized
Divergence: Adjustable
Clear Input Aperture: 11.5 mm
Lens Material: UVFS
Transmission: > 97 %
Controller: Integrated
Control Interface: USB or RS232
Housing material: Black anodized aluminium
LIDT: 10 J/cm² (10 ns @1064 nm)
Expansion: 1.0x - 3.0x
Design Wavelength: 1030 - 1064 + 515 - 532 nm
Pointing stability: < 0.5 mrad
Clear Input Aperture: 11.5 mm
Clear Output Aperture: 23 mm
Recommended MAX Input Beam Diameter (1/E2): Ø 7 mm (1x) - Ø 6 mm (3x)
Dimensions (H x W x L): 45 x 45 x 140 mm

Downloads

CE_OGA_MEX13.pdf

DOWNLOAD

OGA_MEX_manual.pdf

DOWNLOAD

OGA_MEX13.step

DOWNLOAD

OGA_MEX13_drawing.pdf

DOWNLOAD

Katalog_OGA_2020___Laser_2000.pdf

DOWNLOAD

Compact motorized laser beam expander OGA-MEX

Main features:

Highest beam pointing stability (< 0.1 mrad)
Fused silica optical elements
Integrated controllers
No homing after switch on/off
Diffraction limited performance for all magnifications

Application examples:

Precise laser micromachining
Life sciences
Research

Specifications:

Adjustment: Motorized
Divergence: Adjustable
Clear Input Aperture: 11.5 mm
Lens Material: UVFS
Transmission: > 97 %
Controller: Integrated
Control Interface: USB or RS232
Housing material: Black anodized aluminium
LIDT: 10 J/cm² (10 ns @1064 nm)
Expansion: 1.0x - 3.0x
Design Wavelength: 343 - 355 nm
Pointing stability: < 0.5 mrad
Clear Input Aperture: 11.5 mm
Clear Output Aperture: 23 mm
Recommended MAX Input Beam Diameter (1/E2): Ø 7 mm (1x) - Ø 6 mm (3x)
Dimensions (H x W x L): 45 x 45 x 140 mm

Downloads

CE_OGA_MEX13.pdf

DOWNLOAD

OGA_MEX_manual.pdf

DOWNLOAD

OGA_MEX13.step

DOWNLOAD

OGA_MEX13_drawing.pdf

DOWNLOAD

Katalog_OGA_2020___Laser_2000.pdf

DOWNLOAD

Compact motorized laser beam expander OGA-MEX

Main features:

Highest beam pointing stability (< 0.1 mrad)
Fused silica optical elements
Integrated controllers
No homing after switch on/off
Diffraction limited performance for all magnifications

Application examples:

Precise laser micromachining
Life sciences
Research

Specifications:

Adjustment: Motorized
Divergence: Adjustable
Clear Input Aperture: 11.5 mm
Lens Material: UVFS
Transmission: > 97 %
Controller: Integrated
Control Interface: USB or RS232
Housing material: Black anodized aluminium
LIDT: 10 J/cm² (10 ns @1064 nm)
Expansion: 1.0x - 8.0x
Design Wavelength: 1030 - 1064 nm
Pointing stability: < 0.5 mrad
Clear Input Aperture: 11.5 mm
Clear Output Aperture: 38 mm
Recommended MAX Input Beam Diameter (1/E2): Ø 7 mm (1x) - Ø 5 mm (5x) - Ø 3 mm (8x)
Dimensions (H x W x L): 45 x 45 x 237 mm

Downloads

CE_OGA_MEX18.pdf

DOWNLOAD

OGA_MEX_manual.pdf

DOWNLOAD

OGA_MEX18.step

DOWNLOAD

OGA_MEX18_drawing.pdf

DOWNLOAD

Katalog_OGA_2020___Laser_2000.pdf

DOWNLOAD

Compact motorized laser beam expander OGA-MEX

Main features:

Highest beam pointing stability (< 0.1 mrad)
Fused silica optical elements
Integrated controllers
No homing after switch on/off
Diffraction limited performance for all magnifications

Application examples:

Precise laser micromachining
Life sciences
Research

Specifications:

Adjustment: Motorized
Divergence: Adjustable
Clear Input Aperture: 11.5 mm
Lens Material: UVFS
Transmission: > 97 %
Controller: Integrated
Control Interface: USB or RS232
Housing material: Black anodized aluminium
LIDT: 10 J/cm² (10 ns @1064 nm)
Expansion: 1.0x - 8.0x
Design Wavelength: 515 - 532 nm
Pointing stability: < 0.5 mrad
Clear Input Aperture: 11.5 mm
Clear Output Aperture: 38 mm
Recommended MAX Input Beam Diameter (1/E2): Ø 7 mm (1x) - Ø 5 mm (5x) - Ø 3 mm (8x)
Dimensions (H x W x L): 45 x 45 x 237 mm

Downloads

CE_OGA_MEX18.pdf

DOWNLOAD

OGA_MEX_manual.pdf

DOWNLOAD

OGA_MEX18.step

DOWNLOAD

OGA_MEX18_drawing.pdf

DOWNLOAD

Katalog_OGA_2020___Laser_2000.pdf

DOWNLOAD

Compact motorized laser beam expander OGA-MEX

Main features:

Highest beam pointing stability (< 0.1 mrad)
Fused silica optical elements
Integrated controllers
No homing after switch on/off
Diffraction limited performance for all magnifications

Application examples:

Precise laser micromachining
Life sciences
Research

Specifications:

Adjustment: Motorized
Divergence: Adjustable
Clear Input Aperture: 11.5 mm
Lens Material: UVFS
Transmission: > 97 %
Controller: Integrated
Control Interface: USB or RS232
Housing material: Black anodized aluminium
LIDT: 10 J/cm² (10 ns @1064 nm)
Expansion: 1.0x - 8.0x
Design Wavelength: 1030 - 1064 + 515 - 532 nm
Pointing stability: < 0.5 mrad
Clear Input Aperture: 11.5 mm
Clear Output Aperture: 38 mm
Recommended MAX Input Beam Diameter (1/E2): Ø 7 mm (1x) - Ø 5 mm (5x) - Ø 3 mm (8x)
Dimensions (H x W x L): 45 x 45 x 237 mm

Downloads

CE_OGA_MEX18.pdf

DOWNLOAD

OGA_MEX_manual.pdf

DOWNLOAD

OGA_MEX18.step

DOWNLOAD

OGA_MEX18_drawing.pdf

DOWNLOAD

Katalog_OGA_2020___Laser_2000.pdf

DOWNLOAD

Compact motorized laser beam expander OGA-MEX

Main features:

Highest beam pointing stability (< 0.1 mrad)
Fused silica optical elements
Integrated controllers
No homing after switch on/off
Diffraction limited performance for all magnifications

Application examples:

Precise laser micromachining
Life sciences
Research

Specifications:

Adjustment: Motorized
Divergence: Adjustable
Clear Input Aperture: 11.5 mm
Lens Material: UVFS
Transmission: > 97 %
Controller: Integrated
Control Interface: USB or RS232
Housing material: Black anodized aluminium
LIDT: 10 J/cm² (10 ns @1064 nm)
Expansion: 1.0x - 8.0x
Design Wavelength: 515 - 532 + 343 - 355 nm
Pointing stability: < 0.5 mrad
Clear Input Aperture: 11.5 mm
Clear Output Aperture: 38 mm
Recommended MAX Input Beam Diameter (1/E2): Ø 7 mm (1x) - Ø 5 mm (5x) - Ø 3 mm (8x)
Dimensions (H x W x L): 45 x 45 x 237 mm

Downloads

CE_OGA_MEX18.pdf

DOWNLOAD

OGA_MEX_manual.pdf

DOWNLOAD

OGA_MEX18.step

DOWNLOAD

OGA_MEX18_drawing.pdf

DOWNLOAD

Katalog_OGA_2020___Laser_2000.pdf

DOWNLOAD

Compact motorized laser beam expander OGA-MEX

Main features:

Highest beam pointing stability (< 0.1 mrad)
Fused silica optical elements
Integrated controllers
No homing after switch on/off
Diffraction limited performance for all magnifications

Application examples:

Precise laser micromachining
Life sciences
Research

Specifications:

Adjustment: Motorized
Divergence: Adjustable
Clear Input Aperture: 11.5 mm
Lens Material: UVFS
Transmission: > 97 %
Controller: Integrated
Control Interface: USB or RS232
Housing material: Black anodized aluminium
LIDT: 10 J/cm² (10 ns @1064 nm)
Expansion: 1.0x - 3.0x
Design Wavelength: 1030 - 1064 nm
Pointing stability: < 0.2 mrad
Clear Input Aperture: 11.5 mm
Clear Output Aperture: 23 mm
Recommended MAX Input Beam Diameter (1/E2): Ø 7 mm (1x) - Ø 6 mm (3x)
Dimensions (H x W x L): 45 x 45 x 140 mm

Downloads

CE_OGA_MEX13.pdf

DOWNLOAD

OGA_MEX_manual.pdf

DOWNLOAD

OGA_MEX13.step

DOWNLOAD

OGA_MEX13_drawing.pdf

DOWNLOAD

Katalog_OGA_2020___Laser_2000.pdf

DOWNLOAD

Compact motorized laser beam expander OGA-MEX

Main features:

Highest beam pointing stability (< 0.1 mrad)
Fused silica optical elements
Integrated controllers
No homing after switch on/off
Diffraction limited performance for all magnifications

Application examples:

Precise laser micromachining
Life sciences
Research

Specifications:

Adjustment: Motorized
Divergence: Adjustable
Clear Input Aperture: 11.5 mm
Lens Material: UVFS
Transmission: > 97 %
Controller: Integrated
Control Interface: USB or RS232
Housing material: Black anodized aluminium
LIDT: 10 J/cm² (10 ns @1064 nm)
Expansion: 1.0x - 3.0x
Design Wavelength: 515 - 532 nm
Pointing stability: < 0.2 mrad
Clear Input Aperture: 11.5 mm
Clear Output Aperture: 23 mm
Recommended MAX Input Beam Diameter (1/E2): Ø 7 mm (1x) - Ø 6 mm (3x)
Dimensions (H x W x L): 45 x 45 x 140 mm

Downloads

CE_OGA_MEX13.pdf

DOWNLOAD

OGA_MEX_manual.pdf

DOWNLOAD

OGA_MEX13.step

DOWNLOAD

OGA_MEX13_drawing.pdf

DOWNLOAD

Katalog_OGA_2020___Laser_2000.pdf

DOWNLOAD

Compact motorized laser beam expander OGA-MEX

Main features:

Highest beam pointing stability (< 0.1 mrad)
Fused silica optical elements
Integrated controllers
No homing after switch on/off
Diffraction limited performance for all magnifications

Application examples:

Precise laser micromachining
Life sciences
Research

Specifications:

Adjustment: Motorized
Divergence: Adjustable
Clear Input Aperture: 11.5 mm
Lens Material: UVFS
Transmission: > 97 %
Controller: Integrated
Control Interface: USB or RS232
Housing material: Black anodized aluminium
LIDT: 10 J/cm² (10 ns @1064 nm)
Expansion: 1.0x - 3.0x
Design Wavelength: 343 - 355 nm
Pointing stability: < 0.2 mrad
Clear Input Aperture: 11.5 mm
Clear Output Aperture: 23 mm
Recommended MAX Input Beam Diameter (1/E2): Ø 7 mm (1x) - Ø 6 mm (3x)
Dimensions (H x W x L): 45 x 45 x 140 mm

Downloads

CE_OGA_MEX13.pdf

DOWNLOAD

OGA_MEX_manual.pdf

DOWNLOAD

OGA_MEX13.step

DOWNLOAD

OGA_MEX13_drawing.pdf

DOWNLOAD

Katalog_OGA_2020___Laser_2000.pdf

DOWNLOAD

Compact motorized laser beam expander OGA-MEX

Main features:

Highest beam pointing stability (< 0.1 mrad)
Fused silica optical elements
Integrated controllers
No homing after switch on/off
Diffraction limited performance for all magnifications

Application examples:

Precise laser micromachining
Life sciences
Research

Specifications:

Adjustment: Motorized
Divergence: Adjustable
Clear Input Aperture: 11.5 mm
Lens Material: UVFS
Transmission: > 97 %
Controller: Integrated
Control Interface: USB or RS232
Housing material: Black anodized aluminium
LIDT: 10 J/cm² (10 ns @1064 nm)
Expansion: 1.0x - 3.0x
Design Wavelength: 1030 - 1064 + 515 - 532 nm
Pointing stability: < 0.2 mrad
Clear Input Aperture: 11.5 mm
Clear Output Aperture: 23 mm
Recommended MAX Input Beam Diameter (1/E2): Ø 7 mm (1x) - Ø 6 mm (3x)
Dimensions (H x W x L): 45 x 45 x 140 mm

Downloads

CE_OGA_MEX13.pdf

DOWNLOAD

OGA_MEX_manual.pdf

DOWNLOAD

OGA_MEX13.step

DOWNLOAD

OGA_MEX13_drawing.pdf

DOWNLOAD

Katalog_OGA_2020___Laser_2000.pdf

DOWNLOAD

Compact motorized laser beam expander OGA-MEX

Main features:

Highest beam pointing stability (< 0.1 mrad)
Fused silica optical elements
Integrated controllers
No homing after switch on/off
Diffraction limited performance for all magnifications

Application examples:

Precise laser micromachining
Life sciences
Research

Specifications:

Adjustment: Motorized
Divergence: Adjustable
Clear Input Aperture: 11.5 mm
Lens Material: UVFS
Transmission: > 97 %
Controller: Integrated
Control Interface: USB or RS232
Housing material: Black anodized aluminium
LIDT: 10 J/cm² (10 ns @1064 nm)
Expansion: 1.0x - 3.0x
Design Wavelength: 515- 532 + 343- 355 nm
Pointing stability: < 0.2 mrad
Clear Input Aperture: 11.5 mm
Clear Output Aperture: 23 mm
Recommended MAX Input Beam Diameter (1/E2): Ø 7 mm (1x) - Ø 6 mm (3x)
Dimensions (H x W x L): 45 x 45 x 140 mm

Downloads

CE_OGA_MEX13.pdf

DOWNLOAD

OGA_MEX_manual.pdf

DOWNLOAD

OGA_MEX13.step

DOWNLOAD

OGA_MEX13_drawing.pdf

DOWNLOAD

Katalog_OGA_2020___Laser_2000.pdf

DOWNLOAD

Compact motorized laser beam expander OGA-MEX

Main features:

Highest beam pointing stability (< 0.1 mrad)
Fused silica optical elements
Integrated controllers
No homing after switch on/off
Diffraction limited performance for all magnifications

Application examples:

Precise laser micromachining
Life sciences
Research

Specifications:

Adjustment: Motorized
Divergence: Adjustable
Clear Input Aperture: 11.5 mm
Lens Material: UVFS
Transmission: > 97 %
Controller: Integrated
Control Interface: USB or RS232
Housing material: Black anodized aluminium
LIDT: 10 J/cm² (10 ns @1064 nm)
Expansion: 1.0x - 8.0x
Design Wavelength: 350 - 800 nm
Pointing stability: < 0.5 mrad
Clear Input Aperture: 11.5 mm
Clear Output Aperture: 38 mm
Recommended MAX Input Beam Diameter (1/E2): Ø 7 mm (1x) - Ø 5 mm (5x) - Ø 3 mm (8x)
Dimensions (H x W x L): 45 x 45 x 237 mm
