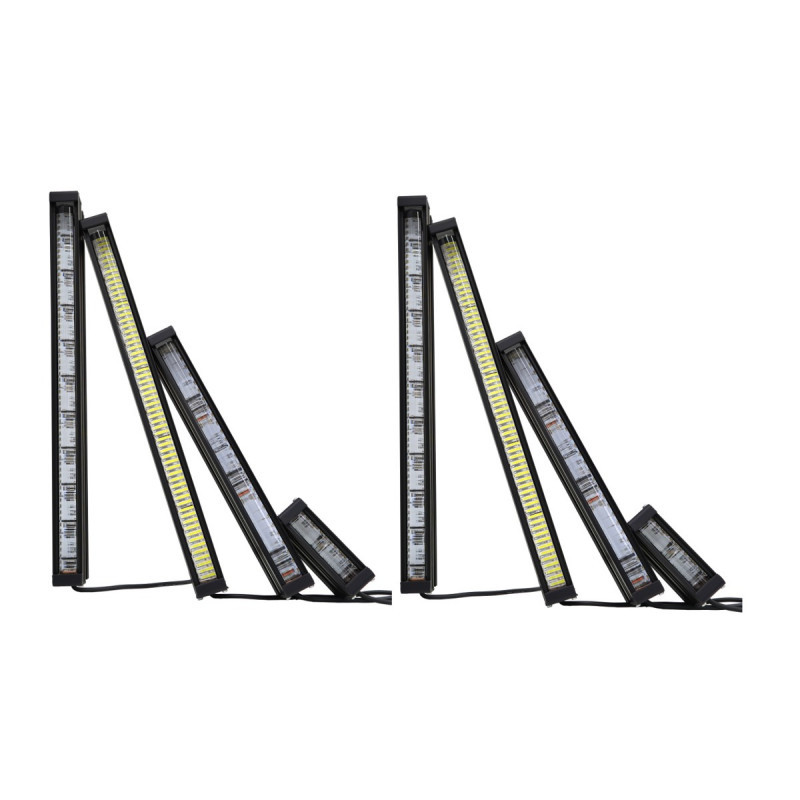

LED-Bar/ Line-light GEVX
Reference number: GEE-GEVX
Customizable Genesi lamp for linear and area cameras.
Need more info?
Contact our expert.
Machine Vision Team
Phone: +49 8153 405-11
Description
| Lighting type | Line / Bar Focalized |
| Optical properties | |
| Lightcolor | 6K, 4K, 3K, IR850, IR940, IR1200-1550, UV365-405, RGB, custom |
| Useful length [mm] | see datasheet |
| Beam angle [°] | 5 |
| Cover lens variants | standard, transparent |
| Typical luminous flux [lm] | 1,260 - 36,000 |
| Electrical properties | |
| Supply voltage [V] | 24 +/- 10% |
| Power consumption [W] | 8.4 - 240 |
| Supply connection | Standard, M8, M12, S, M8S, M12S, 5M, 5MS, custom |
| Mechanical properties | |
| dimensions | see datasheet |
| Working temperature range [°C] | -35 to +55 |
| IP rating | 54, 65 |
Downloads
Customizable Genesi lamp for linear and area cameras.
