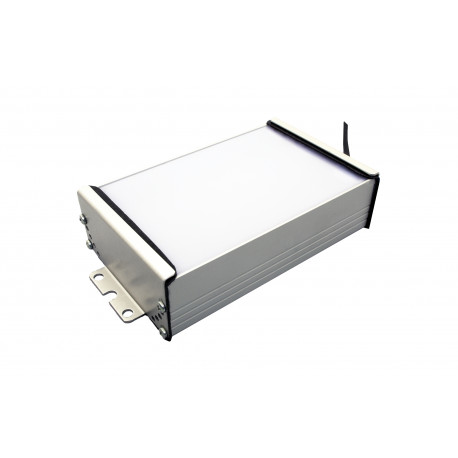

LED-Barlight GEVA

GEE-GEVA LED-Barlight
search
  • GEE-GEVA LED-Barlight

Reference number: GEE-GEVA

Local lighting of medium and large areas and internal illumination of industrial machines. Genesi illuminator or backlight for vision systems with cameras.

alt

Need more info?
Contact our expert.

Machine Vision Team
Phone: +49 8153 405-11

Description

Lighting type

Bar



Optical properties



Lightcolor

6K, 4K,3K, IR850, IR940, UV365-405, Red, Blue, Green, RGB, Custom

Useful length [mm]

see datasheet

Beam angle [°]

80 - 120

Cover lens variants

Transparent, Opaline

Typical luminous flux [lm]

765 - 10,700



Electrical  properties



Supply voltage [V]

24 +/- 10%

Power consumption [W]

5.4 -76.5

Supply connection

Standard, M8, M12, S, M8S, M12S, 5M, 5MS, custom



Mechanical properties



dimensions

see datasheet

Working temperature range [°C]

-35 to +55

IP rating

54
