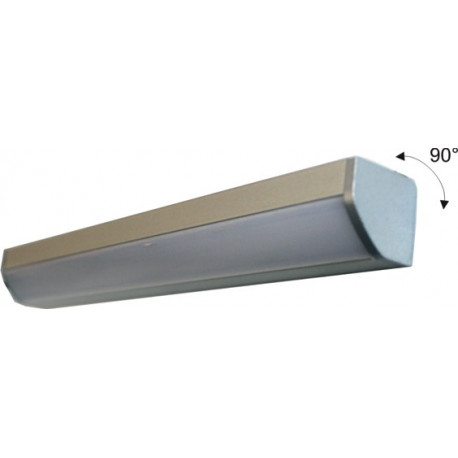

LED-Barlight GETAL
Reference number: GEE-GETAL
Lighting of small, medium and large areas, as an alternative to neon light, internal illumination of industrial machines and installations. Genesi illuminator for vision systems with cameras.
Reference number: GEE-GETAL
Lighting of small, medium and large areas, as an alternative to neon light, internal illumination of industrial machines and installations. Genesi illuminator for vision systems with cameras.
Need more info?
Contact our expert.
Machine Vision Team
Phone: +49 8153 405-11
Description
Lighting type |
Bar |
Optical properties |
|
Lightcolor |
6K, 4K, 3K, IR850, IR940, UV365-405, Red, Blue, Green, RGB, Custom |
Useful length [mm] |
see datasheet |
Beam angle [°] |
80 - 100 |
Cover lens variants |
Transparent, Opaline |
Typical luminous flux [lm] |
255 -9,840 |
Electrical properties |
|
Supply voltage [V] |
24 +/- 10% |
Power consumption [W] |
1.7 - 65.6 |
Supply connection |
Standard, M8, M12, S, M8S, M12S, 5M, 5MS, custom |
Mechanical properties |
|
dimensions |
see datasheet |
Working temperature range [°C] |
-35 to +55 |
IP rating |
54 |
