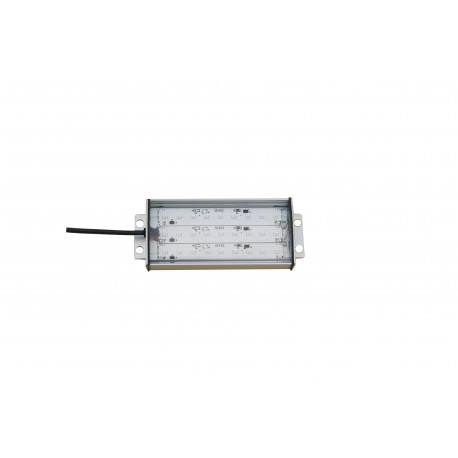

  • GEE-GEL LED-Barlight

Reference number: GEE-GEL

Lighting of small, medium and large areas, as an alternative to neon light, internal illumination of industrial machines and installations. Genesi illuminator for vision systems with cameras.

alt

Need more info?
Contact our expert.

Machine Vision Team
Phone: +49 8153 405-11

Description

Lighting type

Bar



Optical properties



Lightcolor

6K, 4K, 3K, IR850, IR940, UV365-405, Red, Blue, Green, RGB, Custom

Useful length [mm]

see datasheet

Beam angle [°]

120

Cover lens variants

Transparent, Opaline, Polarized

Typical luminous flux [lm]

650 - 14,250



Electrical  properties



Supply voltage [V]

24 +/- 10%

Power consumption [W]

4.3 - 95.0

Supply connection

Standard, M8, M12, S, M8S, M12S, 5M, 5MS, custom



Mechanical properties



dimensions

see datasheet

Working temperature range [°C]

- 35 to +55

IP rating

50, 65
