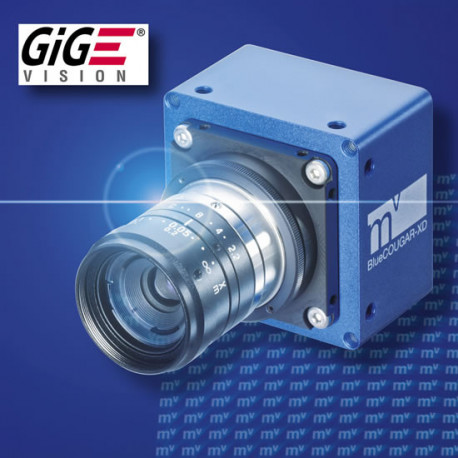

Reference number: MAV-mvBlueCOUGAR-XD1012bC
Dual Gigabit Ethernet (GigE Vision) Machine Vision Camera;
4112 x 3008 Pixel; 23.4 fps; Color; Sensor format 1.1
Need more info?
Contact our expert.
Machine Vision Team
Phone: +49 8153 405-11
Description
| Product name | Dual Gigabit Ethernet Machine Vision Camera, 12.4 MP, Color |
| Short description | Dual Gigabit Ethernet (GigE Vision) Machine Vision Camera; 4112 x 3008 Pixel; 23.4 fps; Color; Sensor format 1.1 |
| Reference | MAV-mvBlueCOUGAR-XD1012bC |
| Camera Interface | Dual Gigabit Ethernet (GigE Vision) |
| Camera type | Standard Camera |
| Sensor | Sony IMX304 |
| Resolution in Mp | 12.4 |
| Resolution | 4112 x 3008 |
| Frame rate in fps | 23.4 |
| Sensor format | 1.1 |
| Pixel size in µm | 3.45 x 3.45 |
| Chromatics | Color |
| Lens mount | C |
| Optical filter | IR-cut; DL-cut; Clear glass window |
| Trigger modes | Rising edge, Falling edge, Software trigger, Configurable exposure delay |
| Weight in g | 200 |
| Dimensions | 32 mm x 50 mm x 50 mm |
| Operating temperature | 0 °C- 45 °C |
| Storage temperature | -20 °C- 60 °C |
| Technical certificate | CE |
| Environmental certificate | RoHS; WEEE |
