Reference number: GEE-GERE

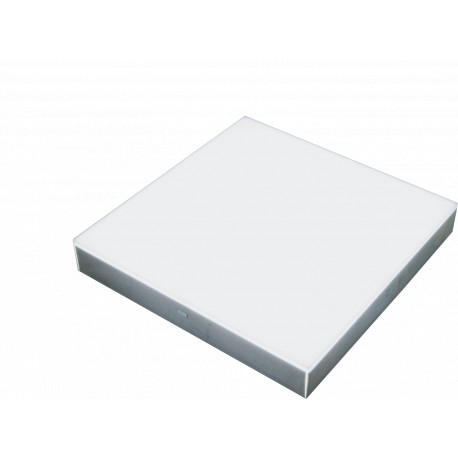

Genesi backlight panels for cameras and diffused light illuminators, continuous or strobe use, standard and custom dimensions. Also available with three RGB channels.
Need more info?
Contact our expert.
Machine Vision Team
Phone: +49 8153 405-11
Description
|
Lighting type |
Backlight |
|
Optical properties |
|
|
Lightcolor |
6K, 4K, 3K, IR850, IR940, UV365-405, Red, Blue, Green, RGB, custom |
|
Useful length [mm] |
see datasheet |
|
Beam angle [°] |
- |
|
Cover lens variants |
Opaline, transparent, collimating, polarized |
|
Typical luminous flux [lm] |
225 – 16,500 |
|
Electrical properties |
|
|
Supply voltage [V] |
24 +/- 10% |
|
Power consumption [W] |
1.5 - 110 W |
|
Current per LED [mA] |
Standard, CC, 100, custom |
|
Supply connection |
Standard, M8, M12, S, M8S, M12S, 5M, 5MS, custom |
|
Mechanical properties |
|
|
dimensions |
see datasheet |
|
Working temperature range [°C] |
0 to +40 |
|
IP rating |
40, 54 |
