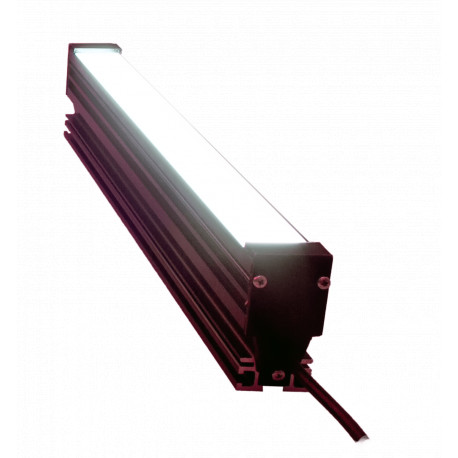

LED-Backlight GEVXB
Reference number: GEE-GEVXB
Customizable Genesi lamp for Backlight applications.
Need more info?
Contact our expert.
Machine Vision Team
Phone: +49 8153 405-11
Description
|
Lighting type |
Backlight |
|
Optical properties |
|
|
Lightcolor |
6K, 4K, 3K, IR850, IR940, IR1200-1550, UV365-405, custom |
|
Useful length [mm] |
see datasheet |
|
Beam angle [°] |
- |
|
Cover lens variants |
Satin, Opaline |
|
Typical luminous flux [lm] |
1,260 -15,000 |
|
Electrical properties |
|
|
Supply voltage [V] |
24 +/- 10% |
|
Power consumption [W] |
7.7 – 98.0 |
|
Supply connection |
Standard, M8, M12, S, M8S, M12S, 5M, 5MS, custom |
|
Mechanical properties |
|
|
dimensions |
see datasheet |
|
Working temperature range [°C] |
-35 to +55 |
|
IP rating |
54, 65 |
Downloads
Customizable Genesi lamp for Backlight applications.
