Artikel-Nr.: CUT-FRM220-xx
Multi-Service-Plattformlösung für High-Density-Medien-Wandler-Modul-Installationen.
Applikationen: Telekom-Netzbetrieb, Großunternehmen, Langstrecken-Übertragung und Fabrikautomation.
Vorteile: Zuverlässig, Universell, Wirtschaftlich, Modular
Für mehr Infos
Experten kontaktieren
Netzwerktechnik Team
Tel.: +49 8153 405-11
Beschreibung

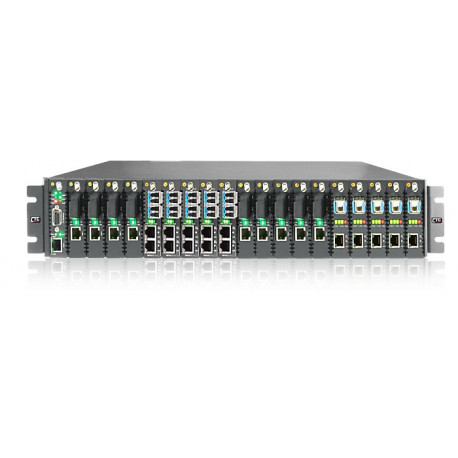

Modulare Multi-Service-Chassis-Plattform
Medienkonverter-Lösung: Die Module sind zuverlässig, universell, wirtschaftlich und von hoher Dichte.
Anwendungen: Telekommunikation, Großunternehmen, Langstrecken-Übertragung und Fabrikautomation.
Technologien: Glasfaser (MM, SM, WDM, CWDM) mit Konvertern und Ethernet-Switches über Modems bis hin zu intelligenten Sprach- / Datenmultiplexern.
Eigenschaften
Es gibt 3 Chassis-Varianten
Stromversorgung
Stromversorgungsoptionen: Eingebauter AC, DC oder eingebauter AC + DC, AC + AC, DC + DC redundant.
Mögliche Lösungen
Die Multi-Service-Plattform von iAccess™ bietet eine umfassende Palette von Lösungen für Service-Provider und Unternehmen.40-G / 16G-Konnektivität mit hoher Dichte, DWDM, CWDM, Entfernungserweiterung, Ethernet-Switch / NID, Glasfasermodem, Glasfaser-Multiplexer und Medienkonverter.
Folgende Eigenschaften:
Smart View™ Management Software (EMS)
Optionale Verwaltungslösung via SNMP Protokoll und SQL Storage. Hauptfunktionen:
Applikationen
FRM220-Plattform: Varianten, Details und Produktcodes
|
FRM220 -Chassis- Varianten |
Produktcode |
Details |
|
2U 20-Slot |
CUT-FRM220-CH20 |
Multi-Service-Plattformgehäuse, 2 HE, 19 Zoll, 20 Steckplätze, 0 bis 60 ° C Betriebstemperatur |
|
1U 8-Slot |
CUT-FRM220-CH08 |
Multi-Service-Plattform-Chassis, 1 HE 19 '', 8 Steckplätze, 0 ... 60 ° C Betriebstemperatur |
|
1U 4-Slot |
CUT-FRM220-CH04A |
Multi-Service-Plattform-Chassis, 1U 12 '', 4 Steckplätze, integriertes doppelt redundantes 90-264-VAC-Leistungsmodul, 0..60 ° C Betriebstemperatur |
|
Network Management Controller |
CUT-FRM220-NMC |
Muss in den ersten Gehäuseschlitz eingesetzt werden. Konfigurieren und überwachen Sie den Status der Blades. |
|
FRM220 Standalone Chassis |
Auf Anfrage |
Chassis-Versionen mit 1, 2 oder 4 Steckplätzen mit verschiedenen Optionen für Stromversorgung und Kühlung |
Modulkarten sind erhältlich für:
Fast/Gigabit Ethernet, E1/T1, V35/X21/RS-530, Serial RS-485/RS-422, Voice FXO/FXS, Repeater, Fiber Multiplexer, E1 Inverse Multiplexer, CWDM Mux/DeMUX EDFA Booster und 40G/16G/10G 3R Transponder.
Modulkarten-Übersicht, grafisch
Modulkarten-Übersichten, Tabellen
|
Kartentyp |
Produktcode |
Kartendetails |
|
Muxponder-Karte |
CUT-FRM220-MP7G1X |
7x 1GE (SFP) to 10G (SFP+) Muxponder-Karte (optional 10G SFP+ / GE SFP Modul) |
|
Kartentyp |
Produktcode |
Kartendetails |
|
Transponder-Karten |
CUT-FRM220-40G-2Q |
40G QSFP⁺ to 40G QSFP⁺3R Transponder, der Medienkonvertierung und Entfernungserweiterung für 40G-Ethernet-Verbindungen bietet |
|
|
CUT-FRM220-40G-1Q4S |
40G QSFP⁺ to 4x 10G SFP⁺ Transponder, der Medienkonvertierung und Entfernungserweiterung für 40G über 10G-Verbindungen bietet |
|
|
CUT-FRM220-16G-3R |
4 SFP+ Steckplätze, die als zweikanaliger 16G 3R-Transponder mit mehreren Übertragungsraten oder im 1-zu-2-Port-Schutzmodus konfiguriert werden können |
|
|
CUT-FRM220-10G-3R |
4 SFP⁺ Steckplätze, die als zweikanaliger 10G 3R-Transponder mit mehreren Übertragungsraten oder im 1-zu-2-Port-Schutzmodus konfiguriert werden können |
|
|
CUT-FRM220-4G-3R |
4 Steckplätze, die als zweikanaliger 4G 3R-Transponder mit mehreren Übertragungsraten oder im 1-zu-2-Port-Schutzmodus konfiguriert werden können |
|
|
CUT-FRM220-1000DS |
Transparenter FE oder GbE Faser Medienkonverter / Repeater. Datenrate bis zu 1G. Verlängern Sie die Übertragung von 2 km auf 120 km über Glasfaser |
|
|
CUT-FRM220-10G-SXX |
3R 10G Mehrraten-Transponder. SFP⁺ zu XFP (SX) oder XFP zu XFP (XX) Glasfaserverbindungen. Unterstützt 1 + 1 optischen Leitungsschutz, Schaltzeit <50ms |
|
|
CUT-FRM220-10G-SS |
3R 10G Glasfaser-Repeater und Transponder. SFP⁺ zu SFP⁺ (SS) Glasfaserverbindungen. Protokolltransparente 3R-Regeneration (Re-Amplification, Re-Shaping und Re-Timing) zwischen verschiedenen optischen Modultypen. |
|
|
CUT-FRM220-4G-3S |
2R 4G Optische Regenerationseinrichtung, bestehend aus Re-Amplification und Re-Shaping. Faserschutz. |
|
|
CUT-FRM220-4G-2S |
2R 4G Optische Regenerationseinrichtung, bestehend aus Re-Amplification und Re-Shaping. |
|
Kartentyp |
Produktcode |
Kartendetails |
|
CWDM & DWDM Karten |
CUT-FRM220-DWDM |
DWDM Mux/DeMux: 2 modules with 100GHz channel spacing including 4, 8, 16 channels. |
|
|
CUT-FRM220-CWDM |
CWDM Mux/DeMux: 2 modular designed cards that support ITU-T G.694.2 wavelengths between 1271nm to 1611nm in 20nm increments. |
|
|
CUT-FRM220-OADM |
Optical Add-Drop Multiplexer: 2 modular designed cards that support ITU-T G.694.2 wavelengths between 1270nm to 1610nm in 20nm increments. |
|
Kartentyp |
Produktcode |
Kartendetails |
|
Booster EDFA Card |
CUT-FRM220-OAB15 |
FRM220 chassis single channel Erbium Doped Fiber Amplifier (EDFA) booster line card for C-band. Rack management or RS-232 console interface. |
|
Kartentyp |
Produktcode |
Kartendetails |
|
Optical Protection Switch Cards |
CUT-FRM220-OPS51M |
1:1 Multi-mode fiber Optical Line Protection Switch card, dual fiber on WAN port, LC/PC connector. Switches traffic in less than 50ms. |
|
|
CUT-FRM220-OPS51 |
1:1 Optical Line Protection Switch card, dual fiber on WAN port, LC/PC connector. Monitoring through SNMP Management. |
|
|
CUT-FRM220-OPS52 |
1+1 Optical Line Protection Switch card, dual fiber on WAN port, LC/PC connector. Monitoring through SNMP Management. |
|
Kartentyp |
Produktcode |
Kartendetails |
|
10G Converter Card |
CUT-FRM220-10GC-TS |
10G Base-T RJ45 to 10G Base-R SFP+ media converter card, with DIP switch (optional SFP+). MUST be placed in CH02 standalone chassis. For standalone SNMP management, place this card in CH02/NMC or CH04A chassis. |
|
Kartentyp |
Produktcode |
Kartendetails |
|
NID/EDD Card |
CUT-FRM220-MX210 |
Network Interface Device (NID) = Netzabschlussgerät: 10/100/1000Base-T + 2x 100/1000/2500Base-X + 100/1000Base-X OAM Managed Switch. |
|
Kartentyp |
Produktcode |
Kartendetails |
|
Ethernet Switch Cards |
CUT-FRM220A-GSW40S |
4-port 100/1000Base-X SFP-LC managed switch Card (optional SFP module) |
|
|
CUT-FRM220A-GSW40T |
4-port 10/100/1000Base-T RJ45 managed switch Card |
|
|
CUT-FRM220A-1002ES |
2-Port 10/100/1000Base-T and 2-Port 100/1000Base-SX/LX SFP Gigabit Ethernet Switch card (Optional SFP) |
|
|
CUT-FRM220A-1000EAS/X |
2-Port 10/100/1000Base-T and 2-Port 100/1000Base-X switch card with OAM/IP management, (optional SFP) |
|
|
CUT-FRM220-100AS-1 |
10/100Base-TX to 100Base-FX with OAM/IP-Based managed FE Media Converter card (optional SFP) |
|
|
CUT-FRM220-10/100AS-2 |
2x 10/100Base-TX + 2x 100Base-FX with OAM/IP Based Managed FE Switch card (optional SFP) |
|
Kartentyp |
Produktcode |
Kartendetails |
|
Media Converter Cards |
CUT-FRM220-100AS-1 |
1 10/100Base-TX to 100Base-FX with OAM/IP-Based managed FE Media Converter card (optional SFP) |
|
|
CUT-FRM220-10/100AS-2 |
2x 10/100Base-TX + 2x 100Base-FX with OAM/IP Based Managed FE Switch card (optional SFP) |
|
|
CUT-FRM220-10/100 |
10/100Base-TX to 100Base-FX unmanaged media converter card |
|
Vorsicht Konnektoren: SC, ST , FC und Distanzen: 2-120km |
||
|
Beispiel: CUT-FRM220 – 10/100 – SC002 |
||
|
|
CUT-FRM220-1000TS |
1000Base-T to 1000Base-X SFP media converter card (Optional SFP) |
|
|
CUT-FRM220-1000M |
10/100/1000Base-T to 1000Base-X, Web Smart OAM managed media converter card. SC Konnektoren: 2-50 km |
|
|
CUT-FRM220-1000MS |
10/100/1000Base-T to 100/1000Base-X SFP Web smart OAM managed media converter. (Optional SFP) |
|
|
CUT-FRM220-1000EAS/X-1 |
10/100/1000Base-T to 100/1000Base-X with OAM/IP-Based managed GbE Media Converter card (optional SFP) |
|
|
CUT-FRM220-10/100i |
10/100Base-TX to 100Base-FX In-band managed converter card |
|
|
CUT-FRM220-10/100iS-2 |
Dual converter 10/100Base-TX to 100Base-FX SFP converter card with In-band management (optional SFP) |
|
Kartentyp |
Produktcode |
Kartendetails |
|
Voice over Fiber Cards |
CUT-FRM220-FXO-4 |
4-port FXO fiber converter card (SFP-LC) |
|
|
CUT-FRM220-FXS-4 |
4-port FXS fiber converter card (SFP-LC) |
|
|
CUT-FRM220-FXO/FXS |
FXO / FXS fiber converter card mit SC, ST, FC Konnektoren: 2-50 km |
|
|
CUT-FRM220-FXO/FXS-SFP |
FXO / FXS fiber converter card (SFP-LC) mit SC, ST, FC Konnektoren: 2-50 km |
|
Kartentyp |
Produktcode |
Kartendetails |
|
Inverse Mux Cards |
CUT-FRM220A-iMux16T-R |
10/100Base-TX to 16 E1 mux card with 16E1 RJ45 cable |
|
|
CUT-FRM220A-iMux16T-B |
10/100Base-TX to 16 E1 mux card with 16E1 BNC cable |
|
|
CUT-FRM220A-iMux8T-R |
10/100Base-TX to 8 E1 mux card with 8 E1 RJ45 cable |
|
|
CUT-FRM220A-iMux8T-B |
10/100Base-TX to 8 E1 mux card with 8 E1 BNC cable |
|
|
CUT-FRM220A-iMux4T-R |
10/100Base-TX to 4 E1 mux card with 4E1 RJ45 cable |
|
|
CUT-FRM220A-iMux4T-B |
10/100Base-TX to 4 E1 mux card with 4E1 BNC cable |
|
Kartentyp |
Produktcode |
Kartendetails |
|
Fiber Multiplexer Cards |
CUT-FRM220-GFOM08-SR |
8x E1/T1 RJ45 and 1000Mbps Ethernet Fiber Mux card with 4x2E1 RJ45 cable (optional SFP module, Model : SFS-70xx-xx) |
|
|
CUT-FRM220-GFOM08-SB |
8x E1 BNC and 1000Mbps Ethernet Fiber Mux card with 4x2E1 BNC cable (optional SFP module, Model : SFS-70xx-xx) |
|
|
CUT-FRM220-GFOM04-SR |
4 x E1/T1 RJ-45 and 10/100/1000Base-T Ethernet Fiber Optic Multiplexer card (optional SFP module) |
|
|
CUT-FRM220-GFOM04-SB |
4x E1 BNC and 10/100/1000Base-T Ethernet Fiber Optic Multiplexer card (optional SFP module) |
|
|
CUT-FRM220-FOM04-SR |
R 4 x E1/T1 RJ-45 and 100Mbps Ethernet Fiber Optic Multiplexer card (optional SFP module) |
|
|
CUT-FRM220-FOM04-SB |
4x E1 BNC and 100Mbps Ethernet Fiber Optic Multiplexer card (optional SFP module) |
|
|
CUT-FRM220-FOM01-SR |
E1/T1 RJ-45 and 100Mbps Ethernet Fiber Optic Multiplexer card (optional SFP module) |
|
|
CUT-FRM220-FOM01-SB |
E1 BNC and 100Mbps Ethernet Fiber Optic Multiplexer card (optional SFP module) |
|
Kartentyp |
Produktcode |
Kartendetails |
|
E1/T1 Cross Rate Converter Card |
CUT-FRM220-FTEC |
E1/T1 Cross rate converter card. T1 (US Standard) /E1 (European Standard) |
|
Kartentyp |
Produktcode |
Kartendetails |
|
E1/T1 to Data Converter Card |
CUT-FRM220- E1/V35-R |
V35 to framed E1 RJ-45 card with HP26M to MB34F cable |
|
|
CUT-FRM220- E1/V35-B |
V35 to framed E1 BNC card with HP26M to MB34F cable |
|
|
CUT-FRM220- E1/X21-R |
X21 to framed E1 RJ-45 card with HP26M to DB15M cable |
|
|
CUT-FRM220- E1/X21-B |
X21 to framed E1 BNC card with HP26M to DB15M cable |
|
|
CUT-FRM220- E1/RS530-R |
RS530 to framed E1 RJ-45 card with HP26M to DB25M cable |
|
|
CUT-FRM220- E1/RS530-B |
RS530 to framed E1 BNC card with HP26M to DB25M cable |
|
|
CUT-FRM220- E1/RS449-R |
RS449 to framed E1 RJ-45 card with HP26M to DB37M cable |
|
|
CUT-FRM220- E1/RS449-B |
RS449 to framed E1 BNC card with HP26M to DB37M cable |
|
|
CUT-FRM220- E1/RS232-R |
RS232 to framed E1 RJ-45 card with HP26M to DB25M cable |
|
|
CUT-FRM220- E1/RS232-B |
RS232 to framed E1 BNC card with HP26M to DB25M cable |
|
Kartentyp |
Produktcode |
Kartendetails |
|
Ethernet over E1 Converter Cards |
CUT-FRM220A-Eoe1 |
10/100Base-TX to E1 HDLC bridge card |
|
|
CUT-FRM220A-Eoe1/G |
10/100Base-TX to E1 GFP (Generic Framing Procedure) bridge operates at WAN |
|
|
CUT-FRM220A-Eoe1/GS |
100Base-FX SFP to E1 GFP bridge operates at WAN (Optical SFP module) |
|
Kartentyp |
Produktcode |
Kartendetails |
|
PDH/Data/ |
CUT-FRM220-DS3/E3 |
DS3/E3 Coax (BNC) to Fiber SFP fiber media converter card |
|
|
CUT-FRM220-E1R |
E1 RJ-45 to fiber card |
|
|
CUT-FRM220-E1B |
E1 BNC to fiber card |
|
|
CUT-FRM220-E1R-SFP |
E1 RJ-45 to fiber card (SFP module not included) |
|
|
CUT-FRM220-E1B-SFP |
E1 BNC to fiber card (SFP module not included) |
|
|
CUT-FRM220-T1R |
T1 RJ-45 to fiber card |
|
|
CUT-FRM220-T1R-SFP |
T1 RJ-45 to fiber card (SFP module not included) |
|
|
CUT-FRM220-V35 |
V.35 to fiber card with HD26M to MB34F cable (1m) |
|
|
CUT-FRM220-X21 |
X.21 to fiber card with HD26M to DB15M cable (1m) |
|
|
CUT-FRM220-RS530 |
RS530 to fiber card with HD26M to DB25M cable (1m) |
|
|
CUT-FRM220-RS449 |
RS449 to fiber card with HD26M to DB37M cable (1m) |
|
|
CUT-FRM220-RS232 |
RS232 to fiber card with HD26M to DB25M cable (1m) |
|
|
CUT-FRM220-V35-SFP |
V.35 to fiber card with HD26M to MB34F cable (1m) (SFP module not included) |
|
|
CUT-FRM220-X21-SFP |
X.21 to fiber card with HD26M to DB15M cable (1m) (SFP module not included) |
|
|
CUT-FRM220-RS530-SFP |
RS530 to fiber card with HD26M to DB25M cable (1m) (SFP module not included) |
|
|
CUT-FRM220-RS449-SFP |
RS449 to fiber card with HD26M to DB37M cable (1m) (SFP module not included) |
|
|
CUT-FRM220-RS232-SFP |
RS232 to fiber card with HD26M to DB25M cable (1m) (SFP module not included) |
|
|
CUT-FRM220-Serial |
RS-232/485 fiber converter |
|
|
CUT-FRM220-Serial-SFP |
RS-232/485 fiber converter (SFP module not included) |
|
|
CUT-FRM220-ET100 |
10/100Base-TX to E1 fiber modem |
|
Kartentyp |
Produktcode |
Kartendetails |
|
Contact Closure Converter |
CUT-FRM220-CCF40 |
4ch Contact closure fiber converter |
|
|
CUT-FRM220-CCF20 |
2ch Contact closure fiber converter |
