Reference number: FIL-C-BLUE-ONE-UV

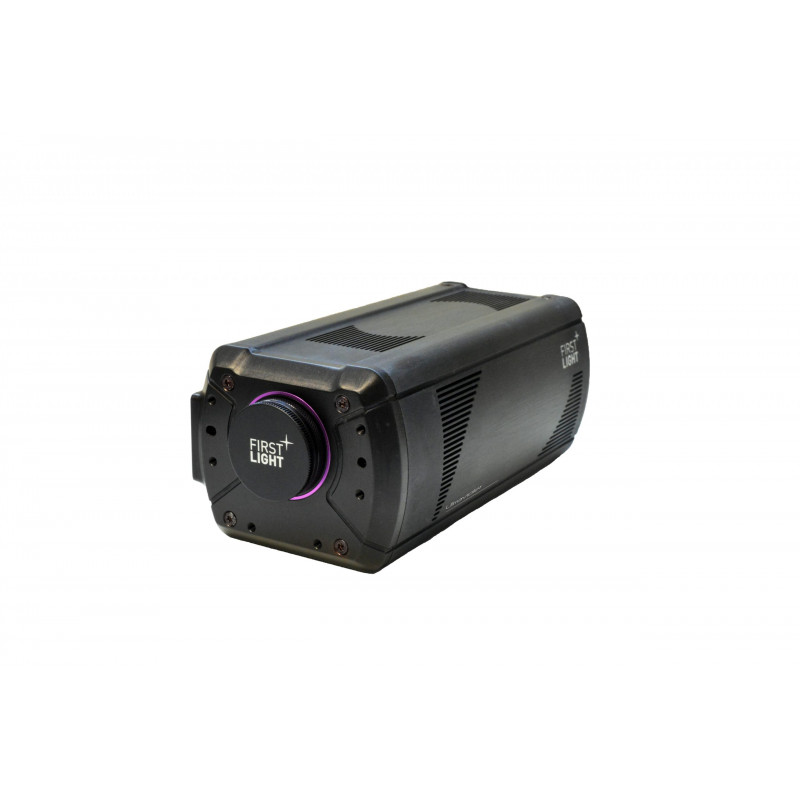

C-BLUE One UV is an industrial-grade Ultraviolet-optimized scientific camera which opens new possibilities for high-speed CMOS imaging. The camera offers a spectral sensitivity from 200 to 1000nm.
Need more info?
Contact our expert.
Our Team
Description
C-BLUE One UV is an industrial-grade Ultraviolet-optimized scientific camera which opens new possibilities for high-speed CMOS imaging. The camera offers a spectral sensitivity from 200 to 1000nm.
Equipped with a high-performance monochrome CMOS global shutter sensor with a very high resolution of 8.1MP (2848 x 2848 pixels, 2.74µm pitch), the camera is optimized for the 200-400nm wavelength range with more than 50% quantum efficiency at 300nm, and 30% at 220nm.
C-BLUE One is a GigE Vision camera and GenICam compatible.
APPLICATIONS
ASTRONOMY
LIFE SCIENCES / RESEARCH
INDUSTRY
SURVEILLANCE / SAFETY
MAIN FEATURES
Back illuminated stacked sensor
GLOBAL SHUTTER CMOS monochrome sensor
up to 170 FPS full frame in 8 bits with CoaXPress interface
1.40 e- RMS (typ)
GigE Vision compliant
GenICam compatible
80 dB linear dynamic range and true 16 bits image
2.74 µm pixel pitch
HDR
OTHER FEATURES
2848 x 2848 Back illuminated stacked CMOS sensor
QE sensitivity from 200 to 1000 nm, UV-optimization from 200 to 400 nm
Outputs :
CoaXPress 2.0 (CXP-12)
High speed SFP+ 10 GigE interface with Ethernet or Fiber
Stabilization with Delta T° of 25°C between case and sensor (typ. 0°C for 25°C environment)
Optional liquid cooling plate
C-Mount / CS-Mount
SWaP: L 154.3 mm x W 76.2 mm x H 64.1 mm, Weight: 1.1 Kg
SOFTWARE
First Light Vision GUI
SDK (C, C++, C#, Python, MatLab) / LabVIEW / μManager / Halcon
