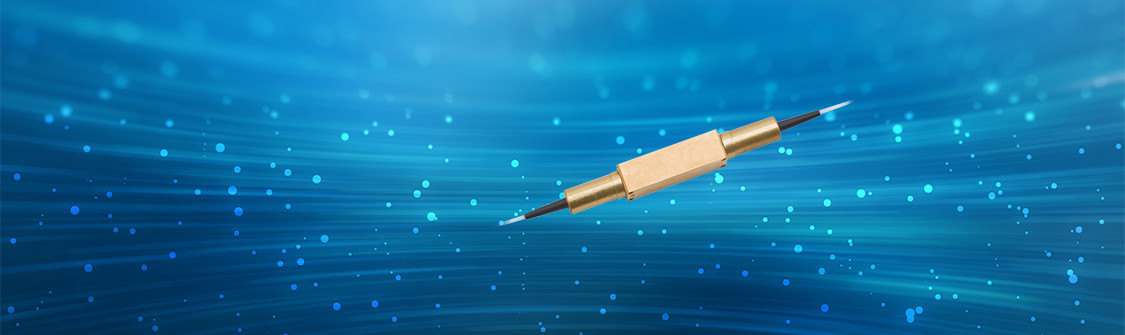

Passive network components are network components that usually do not require any electrical power input. Key passive components include couplers/splitters, wavelength-selective splitters (WDM, CWDM, and DWDM), circulators/isolators, and optical switches. They are available for both single-mode (SM) and multi-mode (MM) applications. These parts are crucial for building a powerful and error-free network. Using unsuitable passive components at key locations in a network could have a quick and noticeable detrimental effect on system performance.
A suite of advanced polarization test instruments specially designed for testing the quality of fiber coils ensures the consistent production of high performance coils. GPCs' PM coils can be wound with different winding patterns such as quadrupole, octupole, or other types to minimize the Shupe effect, which degrades the performance of a fiber gyro under temperature-varying conditions.
Winding a large fiber spool is easy, but making compact, low loss fiber coils requires attention, precision, and skill.
These connectorized couplers are free of fiber pigtails and ready to be inserted in optical systems without the headaches of tinkering with fragile and messy fiber pigtails.
The polarization maintaining filter coupler can either split the light from an input PM fiber between 2 output PM fibers, or can combine light signals from 2 PM input fibers into a single PM output fiber.
This device can be used either as a polarization beam combiner to combine light beams from two PM input fibers into a single output fiber, or as a polarization beamsplitter to split light from an input fiber into two output fibers of orthogonal polarization states.
The Faraday rotator mirror is a fiber optic polarization rotation mirror designed for fiber optic networks and measurement applications. The state of polarization (SOP) of the reflected light is rotated 90 degrees from that of the input light.
These isolators are the smallest in size but the highest in quality in the market. They are ruggedly built to function reliably in a wide variety of environments.
General Photonics’ fiber optic circulators are compact, high-performance light-wave components that separate signals traveling in opposite directions along fibers by transmitting signals from port 1 to port 2 and port 2 to port 3, while blocking signals traveling in the opposite directions.
GPCs' motorized variable optical delay line provides precision optical path length adjustment of up to 560 ps, single-pass. Driven by a DC motor with an integrated encoder, the MDL-002 has a resolution of less than 0.3μm (1 fs).
This laser beam profiler features a CMOS sensor that guarantees frame rates of up to 60 Hz with high dynamics and is suitable for large beam diameters up to 11 mm.
The beam analysis camera WinCamD-IR-BB with integrated microbolometer array enables analyzes on long-wave lasers in the range of 2 μm to 16 μm.
DataRay's ILM system is used for beam profile monitoring of high power lasers consisting of an attenuator for high powers, an imaging lens system and a camera system. The measurement of very small laser beams with diameters of less than micrometers is possible despite often high laser powers.
A main feature of the WinCamD is the optional M2 Stage. Thus, it can be easily extended to a complete M2 measurement system.
