FJW-84499C
IR-Vision Device 350 - 1350 nm C-Mount
Display device for adjustment of infrared lasers that are not in the visible range.

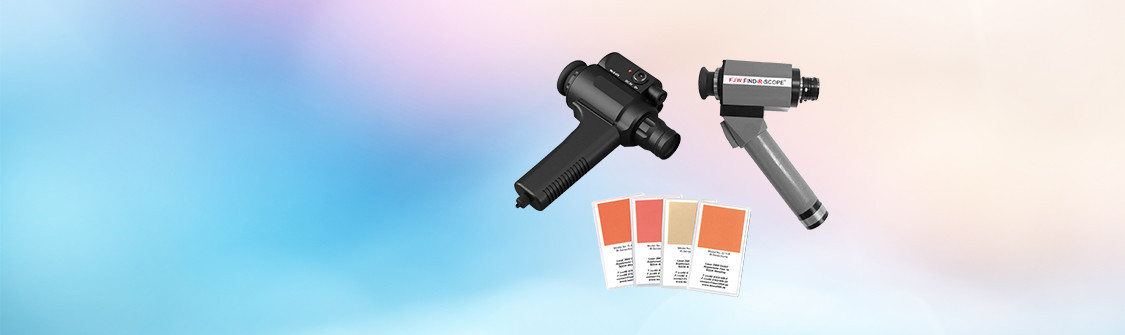

Infrared vision devices and sensor cards
Infrared vision devices and sensor cards
UV and IR sensor cards (also known as transducer cards) are indispensable tools in any optical laboratory. They are ideal for the adjustment and visualization of invisible laser radiation. Even low laser powers of a few μW can be displayed with the aid of the cards. High-temperature cards are available for higher laser power levels; their sensitive surfaces consist of temperature-resistant ceramics. Special types of sensor cards for Nd:YAG or CO2 lasers as well as printed cards and adhesive films complement the product range.
FJW-84499C-5
IR-Vision Device 350 - 1550 nm C-Mount
Display device for adjustment of infrared lasers that are not in the visible range.
IRV-Abris-M-1300-1X
IR-Viewer, 1x, 350-1300 nm
High performance image conversion infrared (IR) viewers based on high-grade image converter are designed to observe indirect radiation of infrared laser, light emitting diodes (LED), dye and other IR-sources in 350 – 2000 nm spectral range.
IRV-Abris-M-1300-2X
IR-Viewer, 2x, 350-1300 nm
High performance image conversion infrared (IR) viewers based on high-grade image converter are designed to observe indirect radiation of infrared laser, light emitting diodes (LED), dye and other IR-sources in 350 – 2000 nm spectral range.
IRV-Abris-M-1700-1X
IR-Viewer, 1x, 350-1700 nm
High performance image conversion infrared (IR) viewers based on high-grade image converter are designed to observe indirect radiation of infrared laser, light emitting diodes (LED), dye and other IR-sources in 350 – 2000 nm spectral range.
IRV-Abris-M-1700-2X
IR-Viewer, 2x, 350-1700 nm
High performance image conversion infrared (IR) viewers based on high-grade image converter are designed to observe indirect radiation of infrared laser, light emitting diodes (LED), dye and other IR-sources in 350 – 2000 nm spectral range.
IRV-Abris-M-2000-1X
IR-Viewer, 1x, 350-2000 nm
High performance image conversion infrared (IR) viewers based on high-grade image converter are designed to observe indirect radiation of infrared laser, light emitting diodes (LED), dye and other IR-sources in 350 – 2000 nm spectral range.
IRV-VIR-2000-2
IR-VIewer, 2x, 350-2000 nm
High performance image conversion infrared (IR) viewers based on high-grade image converter are designed to observe indirect radiation of infrared laser, light emitting diodes (LED), dye and other IR-sources in 350 – 2000 nm spectral range.
QTX Sensor cards
IR-/UV-Sensor cards
UV and IR sensor cards (also called transducer cards) are indispensable tools in every optical laboratory. They are ideal for adjusting and visualizing invisible laser radiation.
