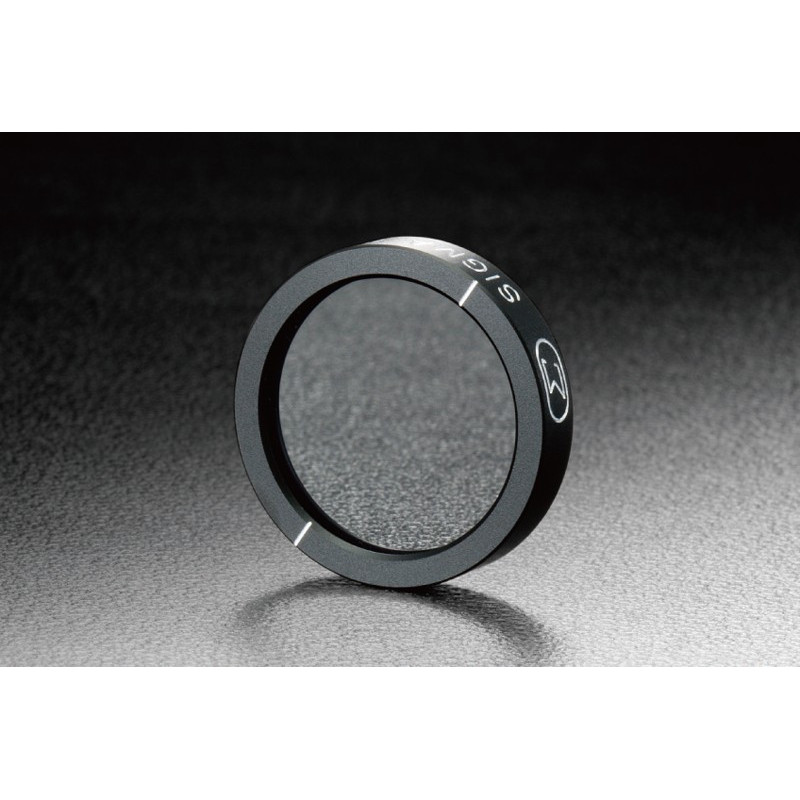

Sheet Polarizer, 320 - 400 nm

search

Reference number: OSE-NSPFU-30C

By using a dichroic dye sheet, good linear polarization can be achieved over a wide range.

alt

Need more info?
Contact our expert.

Our Team

Description

  • Wavelength Range [nm]: 320 - 400nm
  • Material: Dichroic dye film, Quartz glass, Film laminated between optical glasses
  • Material of frame: Aluminum Finishing: Black anodized
  • Coating: Anti-reflection coating on both surfaces
  • Clear aperture [mm]: 24
  • Thickness t [mm]: 2.4
  • Diameter of frame ØA [mm]: 30
