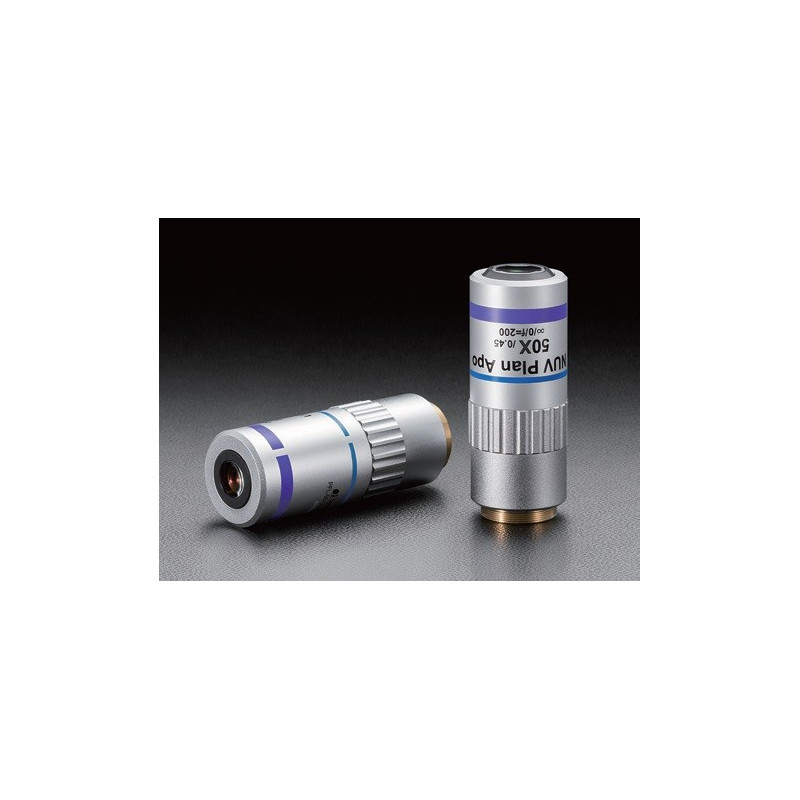

NUV Objective Lenses

Reference number: OSE-PAL-20-NUV-A

With its long working infinity correction function, this objective can be used for a laser system and coaxial observation. It is also used for near UV light observation.

Item Name

Magnification

Item Name

Magnification

Need more info?
Contact our expert.

Our Team

Description

NUV Objective Lenses

Magnification: 20
Wavelength Range [nm]: 355 / 532
Focal length f [mm]: 10
Focal depth [µm]: ± 1,7
Numerical aperture (NA): 0.4
Working distance (WD) [mm]: 17.25
Resolution [µm]: 0.69
Weight [kg]: 0.35

Magnification: 50
Wavelength Range [nm]: 355 / 532
Focal length f [mm]: 4
Focal depth [µm]: ± 1,4
Numerical aperture (NA): 0.45
Working distance (WD) [mm]: 15.1
Resolution [µm]: 0.61
Weight [kg]: 0.36

Magnification: 100
Wavelength Range [nm]: 355 / 532
Focal length f [mm]: 2
Focal depth [µm]: ± 0,8
Numerical aperture (NA): 0.57
Working distance (WD) [mm]: 11.23
Resolution [µm]: 0.48
Weight [kg]: 0.51

Magnification: 50
Wavelength Range [nm]: 355 / 532
Focal length f [mm]: 4
Focal depth [µm]: ± 0,65
Numerical aperture (NA): 0.65
Working distance (WD) [mm]: 10
Resolution [µm]: 0.42
Weight [kg]: 0.38

Magnification: 100
Wavelength Range [nm]: 355 / 532
Focal length f [mm]: 2
Focal depth [µm]: ± 0,6
Numerical aperture (NA): 0.7
Working distance (WD) [mm]: 10
Resolution [µm]: 0.39
Weight [kg]: 0.53

Magnification: 20
Wavelength Range [nm]: 360 / 532
Focal length f [mm]: 10
Focal depth [µm]: ± 1,7
Numerical aperture (NA): 0.4
Working distance (WD) [mm]: 17,35
Resolution [µm]: 0.69
Weight [kg]: 0.35

Magnification: 50
Wavelength Range [nm]: 360 / 532
Focal length f [mm]: 4
Focal depth [µm]: ± 1,4
Numerical aperture (NA): 0.45
Working distance (WD) [mm]: 15,05
Resolution [µm]: 0.61
Weight [kg]: 0.36

Magnification: 100
Wavelength Range [nm]: 360 / 532
Focal length f [mm]: 2
Focal depth [µm]: ± 0,8
Numerical aperture (NA): 0.57
Working distance (WD) [mm]: 11,17
Resolution [µm]: 0.48
Weight [kg]: 0.39

Magnification: 20
Wavelength Range [nm]: 360 / 532
Focal length f [mm]: 10
Focal depth [µm]: ± 1,7
Numerical aperture (NA): 0.4
Working distance (WD) [mm]: 17,4
Resolution [µm]: 0.69
Weight [kg]: 0.35

Magnification: 50
Wavelength Range [nm]: 360 / 532
Focal length f [mm]: 4
Focal depth [µm]: ± 1,4
Numerical aperture (NA): 0.45
Working distance (WD) [mm]: 15,01
Resolution [µm]: 0.61
Weight [kg]: 0.36

Magnification: 100
Wavelength Range [nm]: 360 / 532
Focal length f [mm]: 2
Focal depth [µm]: ± 0,8
Numerical aperture (NA): 0.57
Working distance (WD) [mm]: 11,13
Resolution [µm]: 0.48
Weight [kg]: 0.39

Magnification: 50
Wavelength Range [nm]: 360 / 532
Focal length f [mm]: 4
Focal depth [µm]: ± 0,7
Numerical aperture (NA): 0.65
Working distance (WD) [mm]: 9,91
Resolution [µm]: 0.42
Weight [kg]: 0.51

Magnification: 50
Wavelength Range [nm]: 360 / 532
Focal length f [mm]: 4
Focal depth [µm]: ± 0,7
Numerical aperture (NA): 0.65
Working distance (WD) [mm]: 9,89
Resolution [µm]: 0.42
Weight [kg]: 0.51
