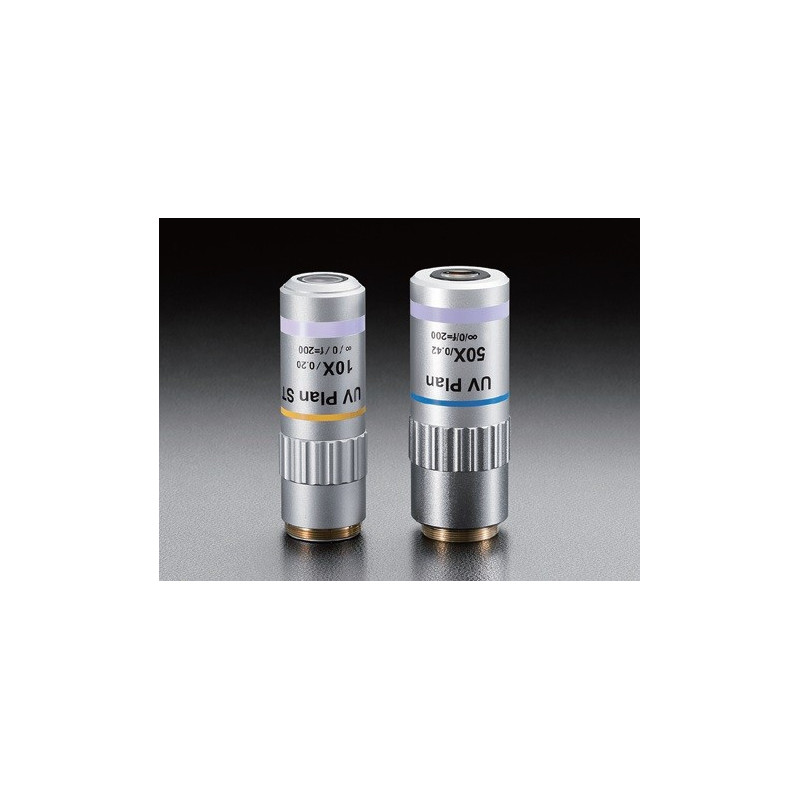

UV Objective Lenses

Reference number: OSE-PFL-10-UV-AG

With its long working distance and field curvature correction, a natural observation image is achieved to the periphery of the field of view.

Item Name

Magnification

Item Name

Magnification

Need more info?
Contact our expert.

Our Team

Description

UV Objective Lenses

Magnification: 10
Wavelength Range [nm]: 266 / 532
Focal length f [mm]: 20
Focal depth [µm]: ± 6,9
Numerical aperture (NA): 0.2
Working distance (WD) [mm]: 13,5
Resolution [µm]: 1.4
Weight [kg]: 0.3

Magnification: 20

Wavelength Range [nm]: 267 / 532

Focal length f [mm]: 10

Focal depth [µm]: ± 2,1

Numerical aperture (NA): 0.36

Working distance (WD) [mm]: 15,07

Resolution [µm]: 0.76

Weight [kg]: 0.35

Magnification: 50
Wavelength Range [nm]: 268 / 532
Focal length f [mm]: 4
Focal depth [µm]: ± 1,6
Numerical aperture (NA): 0.42
Working distance (WD) [mm]: 12
Resolution [µm]: 0.65
Weight [kg]: 0.41

Magnification: 80
Wavelength Range [nm]: 269 / 532
Focal length f [mm]: 2.5
Focal depth [µm]: ± 0,9
Numerical aperture (NA): 0.55
Working distance (WD) [mm]: 10
Resolution [µm]: 0.5
Weight [kg]: 0.35

Magnification: 20
Wavelength Range [nm]: 270 / 532
Focal length f [mm]: 10
Focal depth [µm]: ± 2,1
Numerical aperture (NA): 0.36
Working distance (WD) [mm]: 15,15
Resolution [µm]: 0.76
Weight [kg]: 0.35

Magnification: 50
Wavelength Range [nm]: 271 / 532
Focal length f [mm]: 4
Focal depth [µm]: ± 1,6
Numerical aperture (NA): 0.42
Working distance (WD) [mm]: 11,99
Resolution [µm]: 0.65
Weight [kg]: 0.4

Magnification: 80
Wavelength Range [nm]: 272 / 532
Focal length f [mm]: 2.5
Focal depth [µm]: ± 0,9
Numerical aperture (NA): 0.55
Working distance (WD) [mm]: 9,78
Resolution [µm]: 0.5
Weight [kg]: 0.35

Magnification: 20
Wavelength Range [nm]: 273 / 532
Focal length f [mm]: 10
Focal depth [µm]: ± 2,1
Numerical aperture (NA): 0.36
Working distance (WD) [mm]: 15,2
Resolution [µm]: 0.76
Weight [kg]: 0.35

Magnification: 50
Wavelength Range [nm]: 274 / 532
Focal length f [mm]: 4
Focal depth [µm]: ± 1,6
Numerical aperture (NA): 0.42
Working distance (WD) [mm]: 12,02
Resolution [µm]: 0.65
Weight [kg]: 0.4

Magnification: 80
Wavelength Range [nm]: 275 / 532
Focal length f [mm]: 2.5
Focal depth [µm]: ± 0,9
Numerical aperture (NA): 0.55
Working distance (WD) [mm]: 9,65
Resolution [µm]: 0.5
Weight [kg]: 0.35
