Part number: OSE-TFMS-30C05-4/11

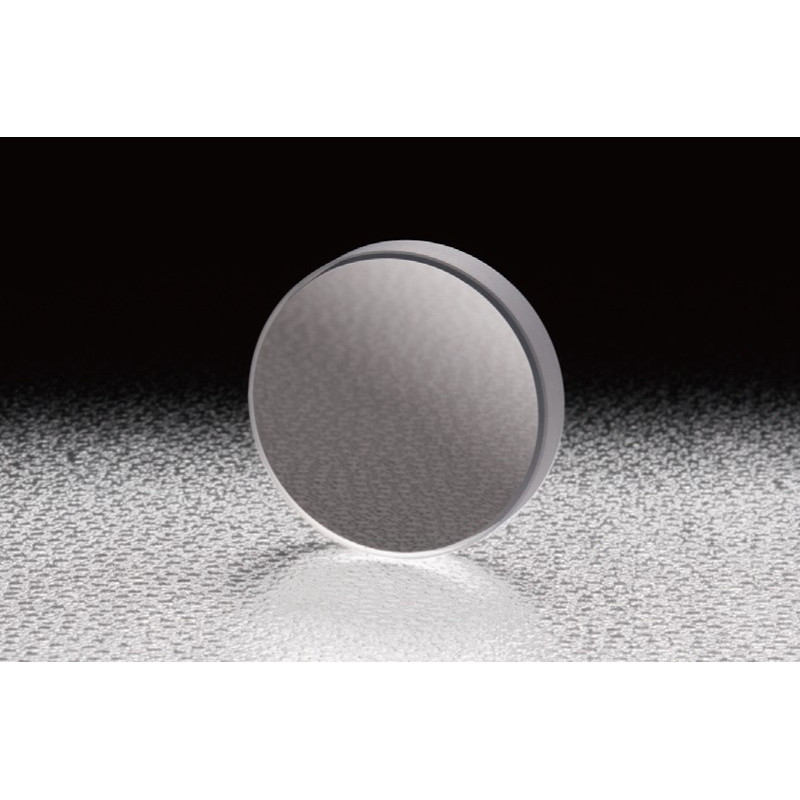

Type: Ultra Broadband Dielectric Mirrors
Wavelength range [nm]: 400 - 1100
Angle of incidence [°]: 45
Reflectivity [%]: 98
Coating: Dielctric
Laser Damage Threshold (J/cm²): 0.5
Diameter [mm]: 30
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFMS-50C08-4/11
Type: Ultra Broadband Dielectric Mirrors
Wavelength range [nm]: 400 - 1100
Angle of incidence [°]: 45
Reflectivity [%]: 98
Coating: Dielctric
Laser Damage Threshold (J/cm²): 0.5
Diameter [mm]: 50
Thickness of the optic [mm]: 8
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFMS-25.4C05-4/11
Type: Ultra Broadband Dielectric Mirrors
Wavelength range [nm]: 400 - 1100
Angle of incidence [°]: 45
Reflectivity [%]: 98
Coating: Dielctric
Laser Damage Threshold (J/cm²): 0.5
Diameter [mm]: 25.4
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFMS-30C05-4/20
Type: Ultra Broadband Dielectric Mirrors
Wavelength range [nm]: 400 - 2000
Angle of incidence [°]: 45
Reflectivity [%]: 98
Coating: Dielctric
Laser Damage Threshold (J/cm²): 0.5
Diameter [mm]: 30
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFMS-50C08-4/20
Type: Ultra Broadband Dielectric Mirrors
Wavelength range [nm]: 400 - 2000
Angle of incidence [°]: 45
Reflectivity [%]: 98
Coating: Dielctric
Laser Damage Threshold (J/cm²): 0.5
Diameter [mm]: 50
Thickness of the optic [mm]: 8
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFMS-25.4C05-4/20
Type: Ultra Broadband Dielectric Mirrors
Wavelength range [nm]: 400 - 2000
Angle of incidence [°]: 45
Reflectivity [%]: 98
Coating: Dielctric
Laser Damage Threshold (J/cm²): 0.5
Diameter [mm]: 25.4
Thickness of the optic [mm]: 8
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFMS-30C05-3/20
Type: Ultra Broadband Dielectric Mirrors
Wavelength range [nm]: 300 - 2000
Angle of incidence [°]: 45
Reflectivity [%]: 97
Coating: Dielctric
Laser Damage Threshold (J/cm²): 0.5
Diameter [mm]: 30
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFMS-50C08-3/20
Type: Ultra Broadband Dielectric Mirrors
Wavelength range [nm]: 300 - 2000
Angle of incidence [°]: 45
Reflectivity [%]: 97
Coating: Dielctric
Laser Damage Threshold (J/cm²): 0.5
Diameter [mm]: 50
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFMS-25.4C05-3/20
Type: Ultra Broadband Dielectric Mirrors
Wavelength range [nm]: 300 - 2000
Angle of incidence [°]: 45
Reflectivity [%]: 97
Coating: Dielctric
Laser Damage Threshold (J/cm²): 0.5
Diameter [mm]: 25.4
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFMS-30C05-2/7
Type: Ultra Broadband Dielectric Mirrors
Wavelength range [nm]: 245 - 700
Angle of incidence [°]: 45
Reflectivity [%]: 97
Coating: Dielctric
Laser Damage Threshold (J/cm²): 0.5
Diameter [mm]: 30
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 40-20
Part number: OSE-TFMS-25.4C05-2/7
Type: Ultra Broadband Dielectric Mirrors
Wavelength range [nm]: 245 - 700
Angle of incidence [°]: 45
Reflectivity [%]: 97
Coating: Dielctric
Laser Damage Threshold (J/cm²): 0.5
Diameter [mm]: 25.4
Thickness of the optic [mm]: 5
Curvature [mm]: ∞
Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 40-20
