Reference number: OSE-TFM-30C05-193

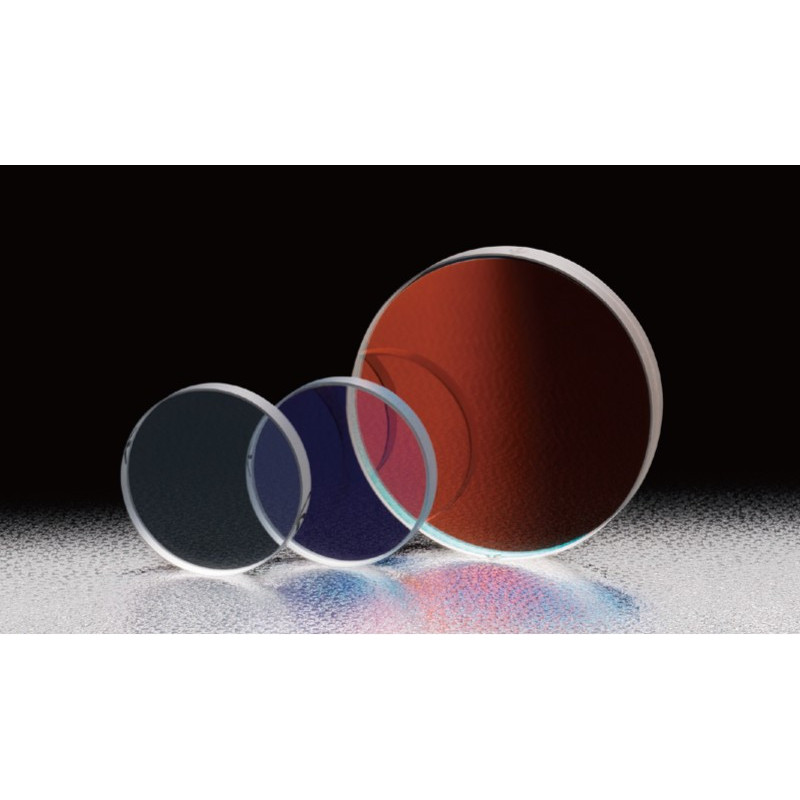

These laser mirrors are designed for laser applications with specific wavelengths, where low wavefront distortion, low scattering and high reflectivity are usually important.
Need more info?
Contact our expert.
Our Team
Write your question
check_circle Question sent
error Your question cannot be sent!
Description
Type: Laser Line Mirror
Flatness: λ/10
Type: Laser Line Mirror
Wavelength range [nm]: 193 - 0Laser Damage Threshold (J/cm²): 1
Diameter [mm]: 30Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Type: Laser Line Mirror
Wavelength range [nm]: 193 - 0Laser Damage Threshold (J/cm²): 1
Diameter [mm]: 50Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Type: Laser Line Mirror
Wavelength range [nm]: 248.4 - 0Laser Damage Threshold (J/cm²): 1
Diameter [mm]: 30Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Type: Laser Line Mirror
Wavelength range [nm]: 248.4 - 0Laser Damage Threshold (J/cm²): 1
Diameter [mm]: 50Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Type: Ultra Broadband Dielectric Mirrors
Wavelength range [nm]: 200 - 400Laser Damage Threshold (J/cm²): 0.5
Diameter [mm]: 30Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Type: Ultra Broadband Dielectric Mirrors
Wavelength range [nm]: 200 - 400Laser Damage Threshold (J/cm²): 0.5
Diameter [mm]: 25.4Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Type: Laser Line Mirror
Wavelength range [nm]: 281.8 - 0Laser Damage Threshold (J/cm²): 2
Diameter [mm]: 30Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Type: Laser Line Mirror
Wavelength range [nm]: 281.8 - 0Laser Damage Threshold (J/cm²): 2
Diameter [mm]: 50Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Type: Laser Line Mirror
Wavelength range [nm]: 281.8 - 0Laser Damage Threshold (J/cm²): 2
Diameter [mm]: 25.4Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Type: Laser Line Mirror
Wavelength range [nm]: 308 - 0Laser Damage Threshold (J/cm²): 3
Diameter [mm]: 30Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Type: Laser Line Mirror
Wavelength range [nm]: 308 - 0Laser Damage Threshold (J/cm²): 3
Diameter [mm]: 50Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Type: Laser Line Mirror
Wavelength range [nm]: 532 - 0Laser Damage Threshold (J/cm²): 8
Diameter [mm]: 25Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Type: Laser Line Mirror
Wavelength range [nm]: 532 - 0Laser Damage Threshold (J/cm²): 8
Diameter [mm]: 30Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Type: Laser Line Mirror
Wavelength range [nm]: 532 - 0Laser Damage Threshold (J/cm²): 8
Diameter [mm]: 40Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Type: Laser Line Mirror
Wavelength range [nm]: 532 - 0Laser Damage Threshold (J/cm²): 8
Diameter [mm]: 50Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Type: Laser Line Mirror
Wavelength range [nm]: 1064 - 0Laser Damage Threshold (J/cm²): 20
Diameter [mm]: 30Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Type: Laser Line Mirror
Wavelength range [nm]: 1064 - 0Laser Damage Threshold (J/cm²): 20
Diameter [mm]: 40Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Type: Laser Line Mirror
Wavelength range [nm]: 1064 - 0Laser Damage Threshold (J/cm²): 20
Diameter [mm]: 50Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Type: Laser Line Mirror
Wavelength range [nm]: 157 - 0Laser Damage Threshold (J/cm²): 0.5
Diameter [mm]: 30Material: CaF2
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Type: Laser Line Mirror
Wavelength range [nm]: 157 - 0Laser Damage Threshold (J/cm²): 0.5
Diameter [mm]: 50Material: CaF2
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Type: Laser Line Mirror
Wavelength range [nm]: 325 - 337Laser Damage Threshold (J/cm²): 3
Diameter [mm]: 30Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Type: Laser Line Mirror
Wavelength range [nm]: 325 - 337Laser Damage Threshold (J/cm²): 3
Diameter [mm]: 25.4Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Type: Laser Line Mirror
Wavelength range [nm]: 325 - 337Laser Damage Threshold (J/cm²): 3
Diameter [mm]: 50Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Type: Laser Line Mirror
Wavelength range [nm]: 352 - 355Laser Damage Threshold (J/cm²): 5
Diameter [mm]: 30Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Type: Laser Line Mirror
Wavelength range [nm]: 352 - 355Laser Damage Threshold (J/cm²): 5
Diameter [mm]: 25.4Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Type: Laser Line Mirror
Wavelength range [nm]: 352 - 355Laser Damage Threshold (J/cm²): 5
Diameter [mm]: 50Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Type: Laser Line Mirror
Wavelength range [nm]: 266 - 0Laser Damage Threshold (J/cm²): 2
Diameter [mm]: 30Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
Type: Laser Line Mirror
Wavelength range [nm]: 266 - 0Laser Damage Threshold (J/cm²): 2
Diameter [mm]: 50Material: BK7
Flatness: λ/10
Surface Quality (Scratch-Dig): 10-5
These laser mirrors are designed for laser applications with specific wavelengths, where low wavefront distortion, low scattering and high reflectivity are usually important.
