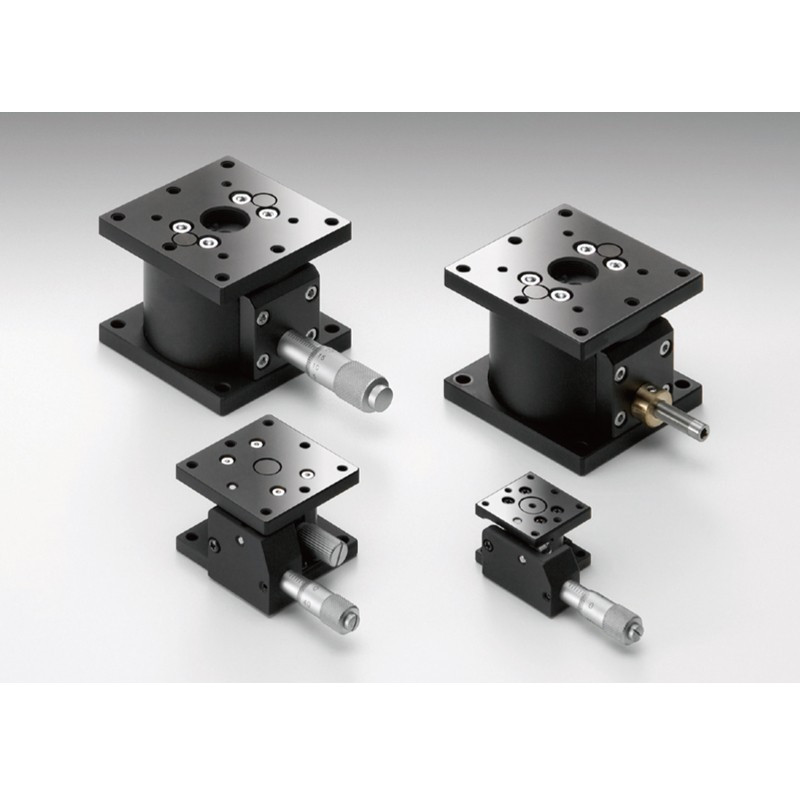

OSE-TSD-UD: Z axis, 60 x 60 mm

search

Reference number: OSE-TSD-653UD-M6

Table Size in mm
Version
Table Size in mm
Version
alt

Need more info?
Contact our expert.

Our Team

Description

  • Type: Z axis
  • Tabel Size [mm]: 60 x 60
  • Maximum XYZ-travel [mm]: 5
  • Travel z-axis [± mm]: +5. ?0
  • Lead of Actuator [mm]: 0.5
  • Micrometer Readable Resolution [mm]: 0.01
  • Bearing type: Extended contact ball guide
  • Primary Material: Steel (Upper and lower plate: Aluminum)
  • Finish: Black matte / Black anodized
  • Load Capacity [N]: 98
  • Travel Accuracy / Straightness [µm]: 2.5
  • Max. Moment Capacity / Pitch [Nm]: 6.9
  • Max. Moment Capacity / Roll [Nm]: 6.9
  • Moment Stiffness / Pitch [´´/Ncm]: 0.41
  • Moment Stiffness / Roll [´´/Ncm]: 0.41
  • Parallelism [µm]: 80
  • Running Parallelism: 20
  • Gewicht in kg: 1
