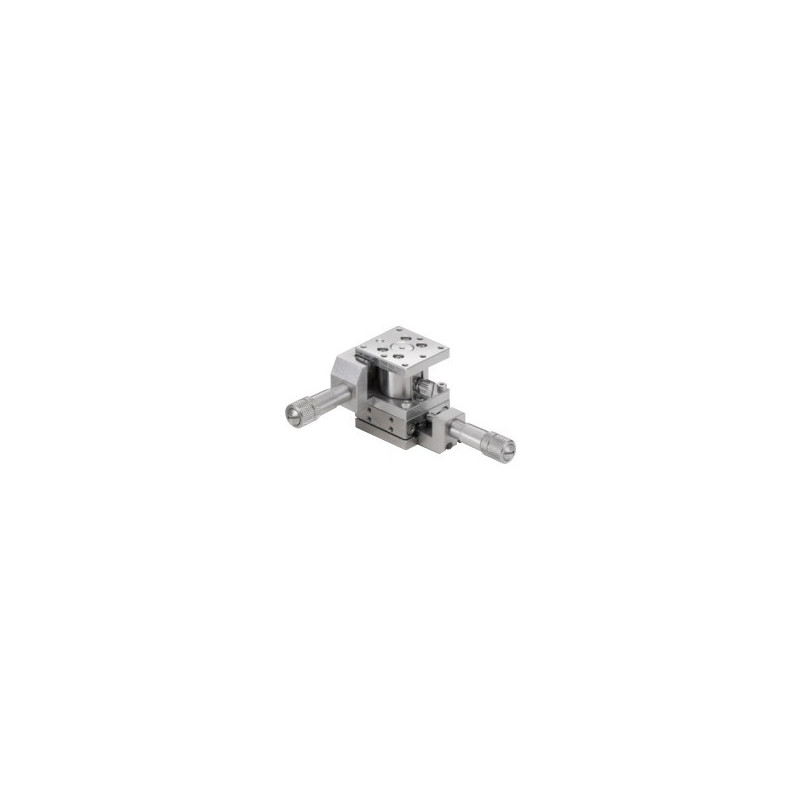

OSE-TSDS-4: XZ axis, 25 x 25 mm

Reference number: OSE-TSDS-254C

Table Size in mm

Version

Travel in mm

Micrometer Position

Table Size in mm

Version

Travel in mm

Micrometer Position

Need more info?
Contact our expert.

Our Team

Description

Type: XZ axis
Tabel Size [mm]: 25×25
Maximum XYZ-travel [mm]: 3
Travel x-axis [±mm]: 3
Travel z-axis [± mm]: 3
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 29.4
Travel Accuracy / Straightness [µm]: 5
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1
Moment Stiffness / Pitch [´´/Ncm]: 8.95
Moment Stiffness / Roll [´´/Ncm]: 8.75
Parallelism [µm]: 110
Gewicht in kg: 0.17

Downloads

OSE-TSDS-4.pdf

OSE-TSDS-254C_STP.zip

ManualStages.zip

Actuators.pdf

Type: XZ axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 3
Travel x-axis [±mm]: 6.5
Travel z-axis [± mm]: 3
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 88.3
Travel Accuracy / Straightness [µm]: 2.5
Max. Moment Capacity / Pitch [Nm]: 3.9
Max. Moment Capacity / Roll [Nm]: 3.9
Moment Stiffness / Pitch [´´/Ncm]: 2.2
Moment Stiffness / Roll [´´/Ncm]: 2.15
Parallelism [µm]: 110
Gewicht in kg: 0.45

Downloads

OSE-TSDS-4.pdf

OSE-TSDS-404C_STP.zip

ManualStages.zip

Actuators.pdf

Type: XZ axis
Tabel Size [mm]: 60×60
Maximum XYZ-travel [mm]: 5
Travel x-axis [±mm]: 6.5
Travel z-axis [± mm]: 5
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 147
Travel Accuracy / Straightness [µm]: 2.5
Max. Moment Capacity / Pitch [Nm]: 6.9
Max. Moment Capacity / Roll [Nm]: 6.9
Moment Stiffness / Pitch [´´/Ncm]: 0.75
Moment Stiffness / Roll [´´/Ncm]: 0.75
Parallelism [µm]: 110
Gewicht in kg: 1.5

Downloads

OSE-TSDS-4.pdf

OSE-TSDS-604C_STP.zip

ManualStages.zip

Actuators.pdf

Type: XZ axis
Tabel Size [mm]: 25×25
Maximum XYZ-travel [mm]: 3
Travel x-axis [±mm]: 3
Travel z-axis [± mm]: 3
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 29.4
Travel Accuracy / Straightness [µm]: 5
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1
Moment Stiffness / Pitch [´´/Ncm]: 8.95
Moment Stiffness / Roll [´´/Ncm]: 8.75
Parallelism [µm]: 110
Gewicht in kg: 0.17

Downloads

OSE-TSDS-4.pdf

OSE-TSDS-254S_STP.zip

ManualStages.zip

Actuators.pdf

Type: XZ axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 3
Travel x-axis [±mm]: 6.5
Travel z-axis [± mm]: 3
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 88.3
Travel Accuracy / Straightness [µm]: 2.5
Max. Moment Capacity / Pitch [Nm]: 3.9
Max. Moment Capacity / Roll [Nm]: 3.9
Moment Stiffness / Pitch [´´/Ncm]: 2.2
Moment Stiffness / Roll [´´/Ncm]: 2.15
Parallelism [µm]: 110
Gewicht in kg: 0.45

Downloads

OSE-TSDS-4.pdf

OSE-TSDS-404S_STP.zip

ManualStages.zip

Actuators.pdf

Type: XZ axis
Tabel Size [mm]: 60×60
Maximum XYZ-travel [mm]: 5
Travel x-axis [±mm]: 6.5
Travel z-axis [± mm]: 5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 147
Travel Accuracy / Straightness [µm]: 2.5
Max. Moment Capacity / Pitch [Nm]: 6.9
Max. Moment Capacity / Roll [Nm]: 6.9
Moment Stiffness / Pitch [´´/Ncm]: 0.75
Moment Stiffness / Roll [´´/Ncm]: 0.75
Parallelism [µm]: 110
Gewicht in kg: 1.5

Downloads

OSE-TSDS-5.pdf

OSE-TSDS-604CL_STP.zip

ManualStages.zip

Actuators.pdf

Type: XZ axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Travel z-axis [± mm]: 3
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 88.3
Travel Accuracy / Straightness [µm]: 2.5
Max. Moment Capacity / Pitch [Nm]: 3.9
Max. Moment Capacity / Roll [Nm]: 3.9
Moment Stiffness / Pitch [´´/Ncm]: 2.2
Moment Stiffness / Roll [´´/Ncm]: 2.15
Parallelism [µm]: 110
Gewicht in kg: 0.45

Downloads

OSE-TSDS-4.pdf

OSE-TSDS-404CUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: XZ axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Travel z-axis [± mm]: 3
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 88.3
Travel Accuracy / Straightness [µm]: 2.5
Max. Moment Capacity / Pitch [Nm]: 3.9
Max. Moment Capacity / Roll [Nm]: 3.9
Moment Stiffness / Pitch [´´/Ncm]: 2.2
Moment Stiffness / Roll [´´/Ncm]: 2.15
Parallelism [µm]: 110
Gewicht in kg: 0.45

Downloads

OSE-TSDS-4.pdf

OSE-TSDS-404SUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: XZ axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Travel z-axis [± mm]: 5
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 147
Travel Accuracy / Straightness [µm]: 2.5
Max. Moment Capacity / Pitch [Nm]: 6.9
Max. Moment Capacity / Roll [Nm]: 6.9
Moment Stiffness / Pitch [´´/Ncm]: 0.75
Moment Stiffness / Roll [´´/Ncm]: 0.75
Parallelism [µm]: 110
Gewicht in kg: 1.65

Downloads

OSE-TSDS-4.pdf

OSE-TSDS-654C-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: XZ axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Travel z-axis [± mm]: 5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 147
Travel Accuracy / Straightness [µm]: 2.5
Max. Moment Capacity / Pitch [Nm]: 6.9
Max. Moment Capacity / Roll [Nm]: 6.9
Moment Stiffness / Pitch [´´/Ncm]: 0.75
Moment Stiffness / Roll [´´/Ncm]: 0.75
Parallelism [µm]: 110
Gewicht in kg: 1.65

Downloads

OSE-TSDS-4.pdf

OSE-TSDS-654S-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: XZ axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Travel z-axis [± mm]: 5
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 147
Travel Accuracy / Straightness [µm]: 2.5
Max. Moment Capacity / Pitch [Nm]: 6.9
Max. Moment Capacity / Roll [Nm]: 6.9
Moment Stiffness / Pitch [´´/Ncm]: 0.75
Moment Stiffness / Roll [´´/Ncm]: 0.75
Parallelism [µm]: 110
Gewicht in kg: 1.65

Downloads

OSE-TSDS-4.pdf

OSE-TSDS-654CUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: XZ axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Travel z-axis [± mm]: 5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 147
Travel Accuracy / Straightness [µm]: 2.5
Max. Moment Capacity / Pitch [Nm]: 6.9
Max. Moment Capacity / Roll [Nm]: 6.9
Moment Stiffness / Pitch [´´/Ncm]: 0.75
Moment Stiffness / Roll [´´/Ncm]: 0.75
Parallelism [µm]: 110
Gewicht in kg: 1.65

Downloads

OSE-TSDS-4L.pdf

OSE-TSDS-654SUU_STP.zip

ManualStages.zip

Actuators.pdf
