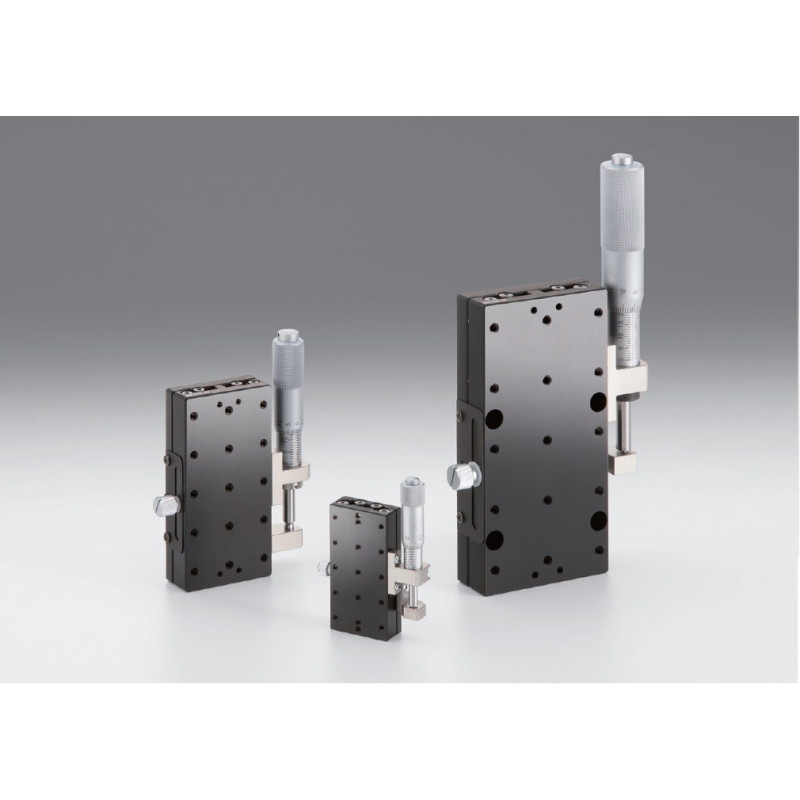

OSE-TSD-LONG-SZ: Z axis, 25 x 50 mm

Reference number: OSE-TSD-25501SZ

Table Size in mm

Version

Table Size in mm

Version

Need more info?
Contact our expert.

Our Team

Description

Type: Z axis
Tabel Size [mm]: 25×50
Maximum XYZ-travel [mm]: 6.5
Travel z-axis [± mm]: 6.5
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 9.8
Travel Accuracy / Straightness [µm]: 2
Max. Moment Capacity / Pitch [Nm]: 2
Max. Moment Capacity / Roll [Nm]: 1.4
Moment Stiffness / Pitch [´´/Ncm]: 1.12
Running Parallelism: 10
Gewicht in kg: 0.1

Downloads

OSE-Long-SZ.pdf

OSE-TSD-25501SZ_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 40×80
Maximum XYZ-travel [mm]: 12.5
Travel z-axis [± mm]: 12.5
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 19.6
Travel Accuracy / Straightness [µm]: 2
Max. Moment Capacity / Pitch [Nm]: 2.6
Max. Moment Capacity / Roll [Nm]: 2.6
Moment Stiffness / Pitch [´´/Ncm]: 0.15
Running Parallelism: 10
Gewicht in kg: 0.4

Downloads

OSE-Long-SZ.pdf

OSE-TSD-40801SZ_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 60×120
Maximum XYZ-travel [mm]: 20
Travel z-axis [± mm]: 20
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 29.4
Travel Accuracy / Straightness [µm]: 2
Max. Moment Capacity / Pitch [Nm]: 3
Max. Moment Capacity / Roll [Nm]: 3
Moment Stiffness / Pitch [´´/Ncm]: 0.1
Running Parallelism: 10
Gewicht in kg: 1

Downloads

OSE-TSD-SZ.pdf

OSE-TSD-60121SZ_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 40×80
Maximum XYZ-travel [mm]: 12.5
Travel z-axis [± mm]: 12.5
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 19.6
Travel Accuracy / Straightness [µm]: 2
Max. Moment Capacity / Pitch [Nm]: 2.6
Max. Moment Capacity / Roll [Nm]: 2.6
Moment Stiffness / Pitch [´´/Ncm]: 0.15
Running Parallelism: 10
Gewicht in kg: 0.4

Downloads

OSE-Long-SZ.pdf

OSE-TSD-40801SZUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 65×120
Maximum XYZ-travel [mm]: 20
Travel z-axis [± mm]: 20
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 29.4
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 3
Max. Moment Capacity / Roll [Nm]: 3
Moment Stiffness / Pitch [´´/Ncm]: 0.1
Running Parallelism: 10
Gewicht in kg: 1.2

Downloads

OSE-Long-SZ.pdf

OSE-TSD-65121SZ-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 65×120
Maximum XYZ-travel [mm]: 20
Travel z-axis [± mm]: 20
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 29.4
Travel Accuracy / Straightness [µm]: 3
Max. Moment Capacity / Pitch [Nm]: 3
Max. Moment Capacity / Roll [Nm]: 3
Moment Stiffness / Pitch [´´/Ncm]: 0.1
Running Parallelism: 10
Gewicht in kg: 1.2

Downloads

OSE-TSD-65121SZUU_STP.zip

ManualStages.zip

Actuators.pdf
