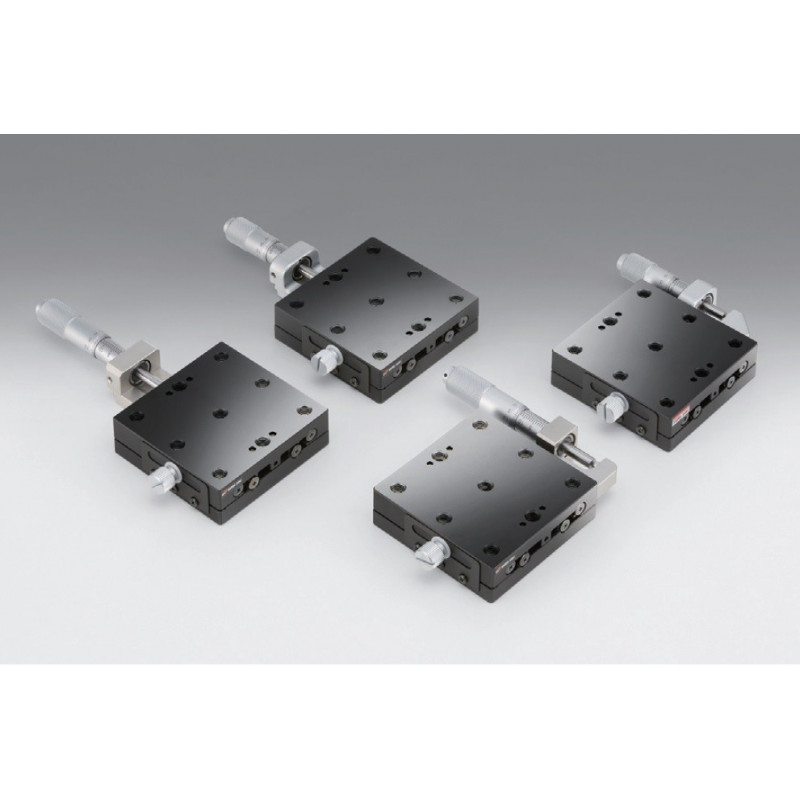

OSE-TSD-651: X axis, 65 x 65 mm

Reference number: OSE-TSD-651C-M6

Model

Version

Travel in mm

Micrometer Position

Model

Version

Travel in mm

Micrometer Position

Need more info?
Contact our expert.

Our Team

Description

Type: X axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 294
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 13.2
Max. Moment Capacity / Roll [Nm]: 14.7
Max. Moment Capacity / Yaw [Nm]: 10
Moment Stiffness / Pitch [´´/Ncm]: 0.08
Moment Stiffness / Roll [´´/Ncm]: 0.05
Moment Stiffness / Yaw [´´/Ncm]: 0.08
Parallelism [µm]: 15
Running Parallelism: 7
Gewicht in kg: 0.6

Downloads

OSE-TSD-1201.pdf

OSE-TSD-651C-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 294
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 13.2
Max. Moment Capacity / Roll [Nm]: 14.7
Max. Moment Capacity / Yaw [Nm]: 10
Moment Stiffness / Pitch [´´/Ncm]: 0.08
Moment Stiffness / Roll [´´/Ncm]: 0.05
Moment Stiffness / Yaw [´´/Ncm]: 0.08
Parallelism [µm]: 15
Running Parallelism: 7
Gewicht in kg: 0.6

Downloads

OSE-TSD-1201.pdf

OSE-TSD-651S-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 12.5
Travel x-axis [±mm]: 12.5
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 294
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 13.2
Max. Moment Capacity / Roll [Nm]: 14.7
Max. Moment Capacity / Yaw [Nm]: 10
Moment Stiffness / Pitch [´´/Ncm]: 0.08
Moment Stiffness / Roll [´´/Ncm]: 0.05
Moment Stiffness / Yaw [´´/Ncm]: 0.08
Parallelism [µm]: 15
Running Parallelism: 7
Gewicht in kg: 0.6

Downloads

OSE-TSD-652-M6_UU.pdf

OSE-TSD-651C25-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 12.5
Travel x-axis [±mm]: 12.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 294
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 13.2
Max. Moment Capacity / Roll [Nm]: 14.7
Max. Moment Capacity / Yaw [Nm]: 10
Moment Stiffness / Pitch [´´/Ncm]: 0.08
Moment Stiffness / Roll [´´/Ncm]: 0.05
Moment Stiffness / Yaw [´´/Ncm]: 0.08
Parallelism [µm]: 15
Running Parallelism: 7
Gewicht in kg: 0.6

Downloads

OSE-TSD-652.pdf

OSE-TSD-651S25-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 294
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 13.2
Max. Moment Capacity / Roll [Nm]: 14.7
Max. Moment Capacity / Yaw [Nm]: 10
Moment Stiffness / Pitch [´´/Ncm]: 0.08
Moment Stiffness / Roll [´´/Ncm]: 0.05
Moment Stiffness / Yaw [´´/Ncm]: 0.08
Parallelism [µm]: 15
Running Parallelism: 7
Gewicht in kg: 0.6

Downloads

OSE-TSD-651.pdf

OSE-TSD-651SR-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 294
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 13.2
Max. Moment Capacity / Roll [Nm]: 14.7
Max. Moment Capacity / Yaw [Nm]: 10
Moment Stiffness / Pitch [´´/Ncm]: 0.08
Moment Stiffness / Roll [´´/Ncm]: 0.05
Moment Stiffness / Yaw [´´/Ncm]: 0.08
Parallelism [µm]: 15
Running Parallelism: 7
Gewicht in kg: 0.6

Downloads

OSE-TSD-651.pdf

OSE-TSD-651CUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 294
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 13.2
Max. Moment Capacity / Roll [Nm]: 14.7
Max. Moment Capacity / Yaw [Nm]: 10
Moment Stiffness / Pitch [´´/Ncm]: 0.08
Moment Stiffness / Roll [´´/Ncm]: 0.05
Moment Stiffness / Yaw [´´/Ncm]: 0.08
Parallelism [µm]: 15
Running Parallelism: 7
Gewicht in kg: 0.6

Downloads

OSE-TSD-651.pdf

OSE-TSD-651SUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 294
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 13.2
Max. Moment Capacity / Roll [Nm]: 14.7
Max. Moment Capacity / Yaw [Nm]: 10
Moment Stiffness / Pitch [´´/Ncm]: 0.08
Moment Stiffness / Roll [´´/Ncm]: 0.05
Moment Stiffness / Yaw [´´/Ncm]: 0.08
Parallelism [µm]: 15
Running Parallelism: 7
Gewicht in kg: 0.6

Downloads

OSE-TSD-651.pdf

OSE-TSD-651SRUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 12.5
Travel x-axis [±mm]: 12.5
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 294
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 13.2
Max. Moment Capacity / Roll [Nm]: 14.7
Max. Moment Capacity / Yaw [Nm]: 10
Moment Stiffness / Pitch [´´/Ncm]: 0.08
Moment Stiffness / Roll [´´/Ncm]: 0.05
Moment Stiffness / Yaw [´´/Ncm]: 0.08
Parallelism [µm]: 15
Running Parallelism: 7
Gewicht in kg: 0.6

Downloads

OSE-TSD-651.pdf

OSE-TSD-651C25UU_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 12.5
Travel x-axis [±mm]: 12.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 294
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 13.2
Max. Moment Capacity / Roll [Nm]: 14.7
Max. Moment Capacity / Yaw [Nm]: 10
Moment Stiffness / Pitch [´´/Ncm]: 0.08
Moment Stiffness / Roll [´´/Ncm]: 0.05
Moment Stiffness / Yaw [´´/Ncm]: 0.08
Parallelism [µm]: 15
Running Parallelism: 7
Gewicht in kg: 0.6

Downloads

OSE-TSD-652.pdf

OSE-TSD-651S25UU_STP.zip

ManualStages.zip

Actuators.pdf
