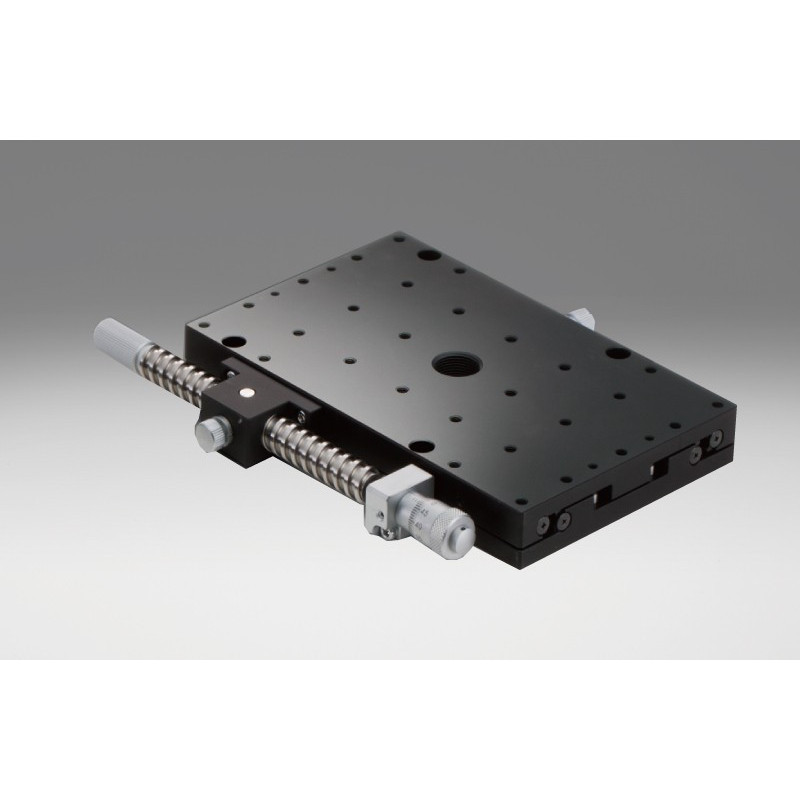

OSE-TSD-60161SDM: X axis, 60 x 160 mm

search

Reference number: OSE-TSD-60161SDM

alt

Need more info?
Contact our expert.

Our Team

Description

  • Type: X axis
  • Tabel Size [mm]: 60 x 160
  • Maximum XYZ-travel [mm]: 35
  • Travel x-axis [± mm]: Coars: 35 Fine: 3
  • Micrometer Position: Side
  • Lead of Actuator [mm]: Coars: 5 Fine: 0.5
  • Micrometer Readable Resolution [mm]: Coars: ? Fine: 0.01
  • Bearing type: Extended contact ball guide
  • Primary Material: Steel
  • Finish: Super black chrome
  • Load Capacity [N]: 490
  • Travel Accuracy / Straightness [µm]: 1
  • Travel Accuracy / Pitch [´´]: 25
  • Travel Accuracy / Yaw [´´]: 15
  • Max. Moment Capacity / Pitch [Nm]: 29.4
  • Max. Moment Capacity / Roll [Nm]: 9.8
  • Max. Moment Capacity / Yaw [Nm]: 14.7
  • Moment Stiffness / Pitch [´´/Ncm]: 0.07
  • Moment Stiffness / Roll [´´/Ncm]: 0.2
  • Moment Stiffness / Yaw [´´/Ncm]: 0.09
  • Parallelism [µm]: 50
  • Running Parallelism: 15
  • Gewicht in kg: 1.3
