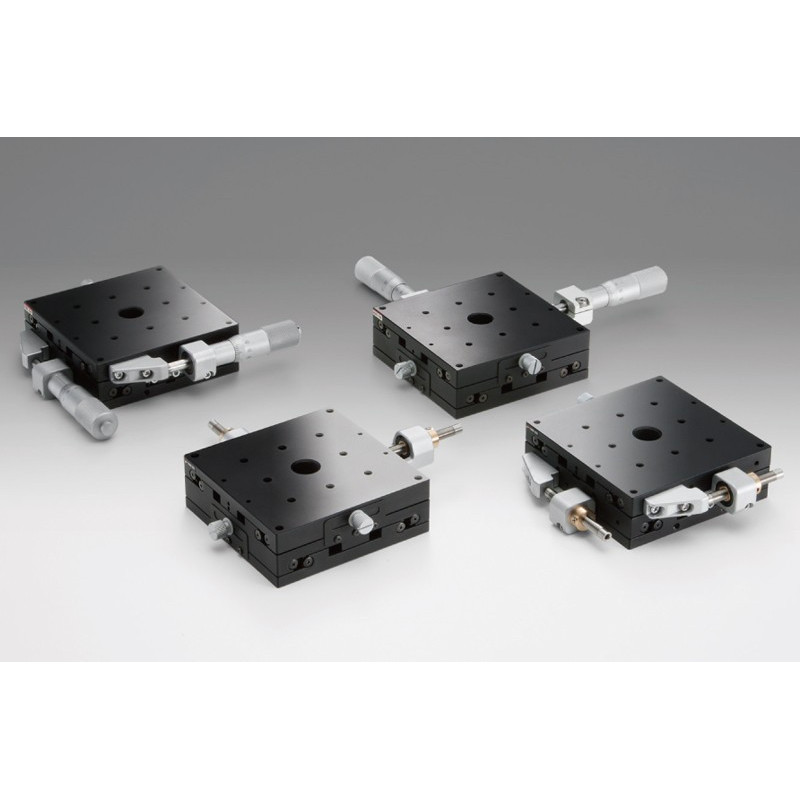

OSE-TSD-1002: XY axis, 100 x 100 mm

Reference number: OSE-TSD-1002C

Model

Micrometer Position

Need more info?
Contact our expert.

Our Team

Description

Type: XY axis
Tabel Size [mm]: 100×100
Maximum XYZ-travel [mm]: 12.5
Travel x-axis [± mm]: 12.5
Travel y-axis [± mm]: 12.5
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 588
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch [´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 35
Max. Moment Capacity / Roll [Nm]: 35
Max. Moment Capacity / Yaw [Nm]: 32
Moment Stiffness / Pitch [´´/Ncm]: 0.03
Moment Stiffness / Roll [´´/Ncm]: 0.03
Moment Stiffness / Yaw [´´/Ncm]: 0.04
Parallelism [µm]: 40
Running Parallelism: 15
Orthogonality [µm]: 10
Gewicht in kg: 2.6
