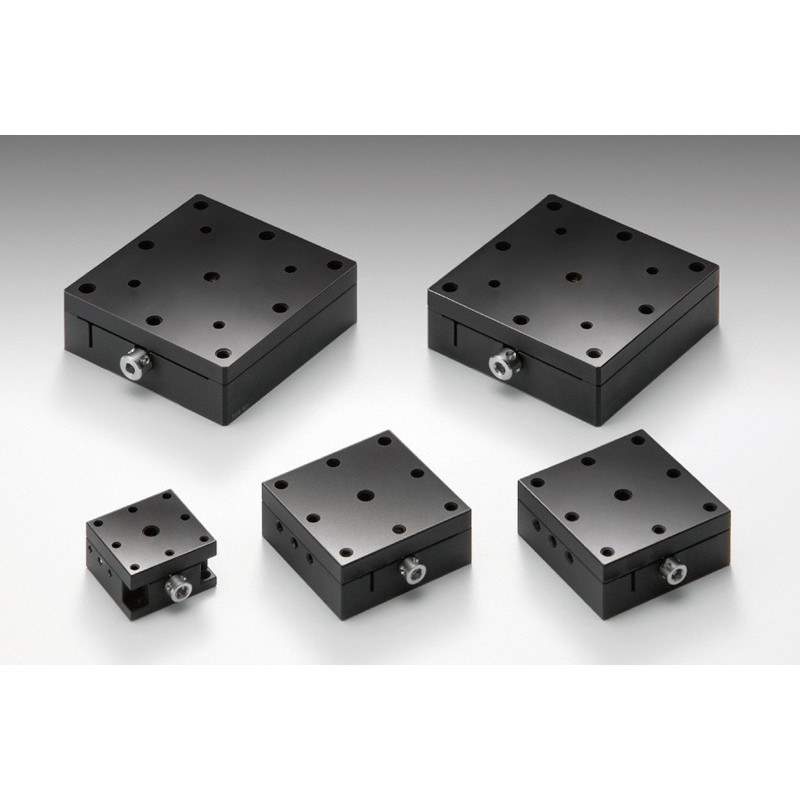

OSE-TASB-1: X axis, 15 x 15 mm

Reference number: OSE-TASB-151

Table Size in mm

Version

Table Size in mm

Version

Need more info?
Contact our expert.

Our Team

Description

Type: X axis
Tabel Size [mm]: 25×25
Maximum XYZ-travel [mm]: 3
Travel x-axis [±mm]: 3
Bearing type: Dovetail method
Primary Material: Brass
Finish: Black matte
Screw Pitch [mm]: 0.5
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 10
Max. Moment Capacity / Pitch [Nm]: 2
Max. Moment Capacity / Roll [Nm]: 2
Max. Moment Capacity / Yaw [Nm]: 1
Moment Stiffness / Pitch [´´/Ncm]: 2
Moment Stiffness / Roll [´´/Ncm]: 1.5
Parallelism [µm]: 50
Gewicht in kg: 0.06
