Optics & Optomechanics
Manual Positioning Systems

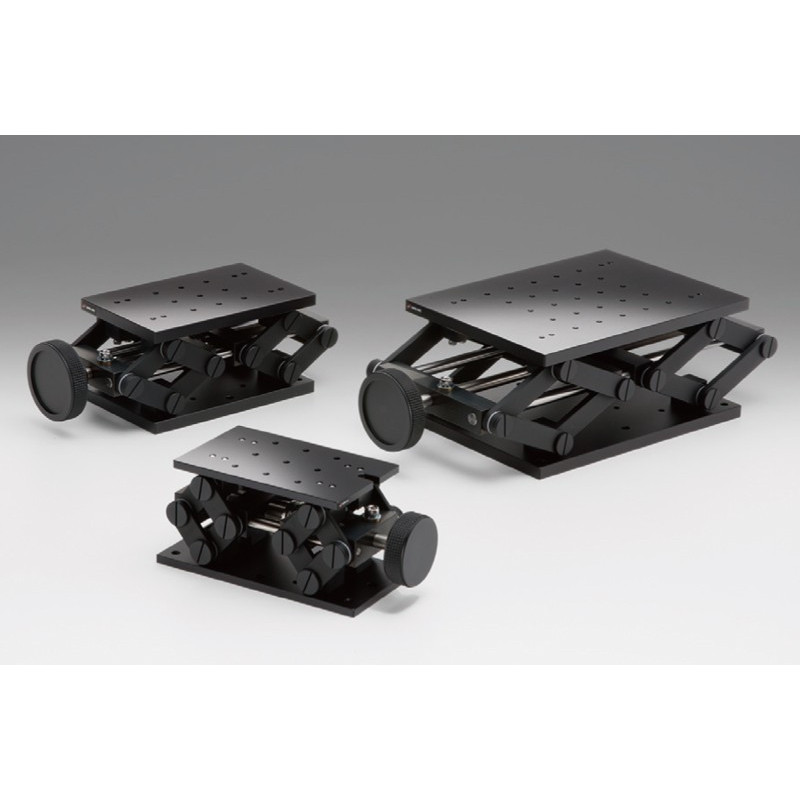

OSE-LJA: Z axis, 80 x 132 mm

OSE-LJA: Z axis, 80 x 132 mm

Reference number: OSE-LJA-80133

Table Size in mm

Table Size in mm

Need more info?
Contact our expert.

Our Team

I am interested in:

an offer

information material

a call and advice

*Required field

reCAPTCHA

Write your question

Email address^*

Message^*

^* Required fields

Question sent

Your question has been sent!

Your question cannot be sent!

Description

Type: Z axis
Tabel Size [mm]: 80×132
Maximum XYZ-travel [mm]: 22
Travel z-axis [± mm]: 22
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 196
Max. Moment Capacity / Pitch [Nm]: 29.4
Max. Moment Capacity / Roll [Nm]: 2.9
Parallelism [µm]: 100
Gewicht in kg: 2.3

Downloads

OSE-LJ_LJA.pdf

OSE-LJA-80133_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 100×160
Maximum XYZ-travel [mm]: 40
Travel z-axis [± mm]: 40
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 245
Max. Moment Capacity / Pitch [Nm]: 38
Max. Moment Capacity / Roll [Nm]: 4
Parallelism [µm]: 100
Gewicht in kg: 3.4

Downloads

OSE-LJ_LJA.pdf

OSE-LJA-10163_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 160×220
Maximum XYZ-travel [mm]: 70
Travel z-axis [± mm]: 70
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 294
Max. Moment Capacity / Pitch [Nm]: 49
Max. Moment Capacity / Roll [Nm]: 6
Parallelism [µm]: 100
Gewicht in kg: 5.9

Downloads

OSE-LJA-M6_LJA-UU.pdf

OSE-LJA-16223_STP.zip

ManualStages.zip

Actuators.pdf
