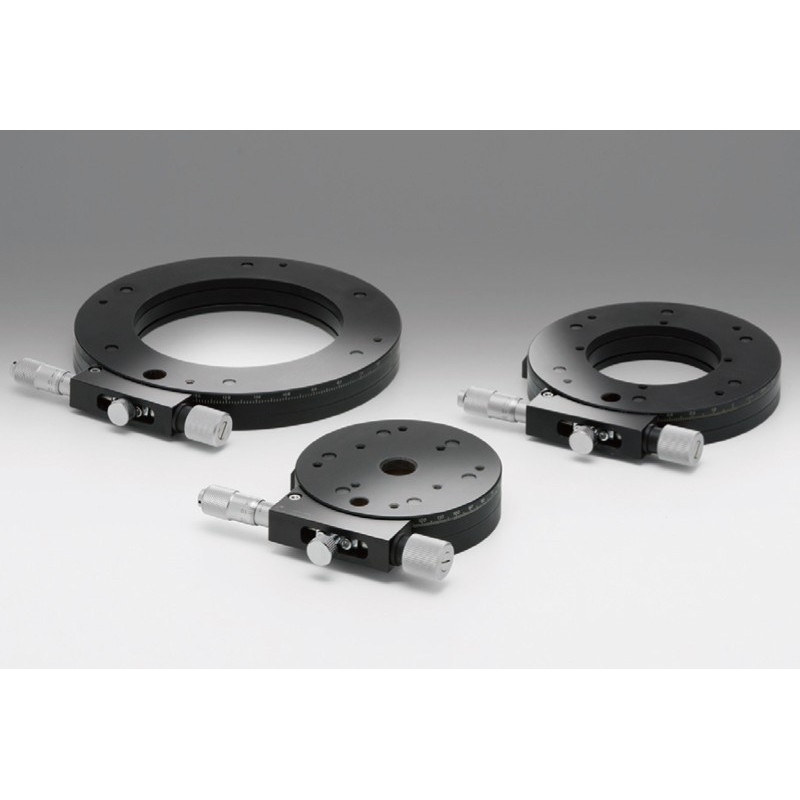

OSE-KSPB: Rotation stages, Diameter90 mm

Reference number: OSE-KSPB-906M

Option

Table Size in mm

Load Capacity in N

Version

Option

Table Size in mm

Load Capacity in N

Version

Need more info?
Contact our expert.

Our Team

Description

Type: Rotation stages
Tabel Size [mm]: ?90
Rotation Range [°]: Coarse: 360 Fine: ±5
Scale Readable Resolution: 5´
Micrometer Readable Resolution [mm]: about 41.25´´
Bearing type: Crossed roller
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 147
Max. Moment Capacity / Pitch [Nm]: 5
Moment Stiffness / Pitch [´´/Ncm]: 0.2
Parallelism [µm]: 50
Eccentricity [µm]: 20
Wobble [µm]: 20
Gewicht in kg: 1.3

Downloads

OSE-KSPA.pdf

OSE-KSPB-906M_STP.zip

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: ?120
Rotation Range [°]: Coarse: 360 Fine: ±4
Scale Readable Resolution: 5´
Micrometer Readable Resolution [mm]: about 31.8´´
Bearing type: Crossed roller
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 196
Max. Moment Capacity / Pitch [Nm]: 7.8
Moment Stiffness / Pitch [´´/Ncm]: 0.1
Parallelism [µm]: 50
Eccentricity [µm]: 30
Wobble [µm]: 20
Gewicht in kg: 1.1

Downloads

OSE-KSPB.pdf

OSE-KSPB-1206MH_STP.zip

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: ?160
Rotation Range [°]: Coarse: 360 Fine: ±3
Scale Readable Resolution: 5´
Micrometer Readable Resolution [mm]: about 23.7´´
Bearing type: Crossed roller
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 196
Max. Moment Capacity / Pitch [Nm]: 9.8
Moment Stiffness / Pitch [´´/Ncm]: 0.15
Parallelism [µm]: 50
Eccentricity [µm]: 30
Wobble [µm]: 30
Gewicht in kg: 1.5

Downloads

OSE-KSPA.pdf

OSE-KSPB-1606MH_STP.zip

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: ?120
Rotation Range [°]: Coarse: 360 Fine: ±4
Scale Readable Resolution: 5´
Micrometer Readable Resolution [mm]: about 31.8´´
Bearing type: Crossed roller
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 196
Max. Moment Capacity / Pitch [Nm]: 7.8
Moment Stiffness / Pitch [´´/Ncm]: 0.1
Parallelism [µm]: 50
Eccentricity [µm]: 30
Wobble [µm]: 20
Gewicht in kg: 1.1

Downloads

OSE-KSPB.pdf

OSE-KSPB-1206MH-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: ?160
Rotation Range [°]: Coarse: 360 Fine: ±3
Scale Readable Resolution: 5´
Micrometer Readable Resolution [mm]: about 23.7´´
Bearing type: Crossed roller
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 196
Max. Moment Capacity / Pitch [Nm]: 9.8
Moment Stiffness / Pitch [´´/Ncm]: 0.15
Parallelism [µm]: 50
Eccentricity [µm]: 30
Wobble [µm]: 30
Gewicht in kg: 1.5

Downloads

OSE-KSPB-1606MH-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: ?120
Rotation Range [°]: Coarse: 360 Fine: ±4
Scale Readable Resolution: 5´
Micrometer Readable Resolution [mm]: about 31.8´´
Bearing type: Crossed roller
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 196
Max. Moment Capacity / Pitch [Nm]: 7.8
Moment Stiffness / Pitch [´´/Ncm]: 0.1
Parallelism [µm]: 50
Eccentricity [µm]: 30
Wobble [µm]: 20
Gewicht in kg: 1.1

Downloads

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: ?160
Rotation Range [°]: Coarse: 360 Fine: ±3
Scale Readable Resolution: 5´
Micrometer Readable Resolution [mm]: about 23.7´´
Bearing type: Crossed roller
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 196
Max. Moment Capacity / Pitch [Nm]: 9.8
Moment Stiffness / Pitch [´´/Ncm]: 0.15
Parallelism [µm]: 50
Eccentricity [µm]: 30
Wobble [µm]: 30
Gewicht in kg: 1.5

Downloads

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: ?90
Rotation Range [°]: Coars:360°?Fine:±5°
Scale Readable Resolution: 5´
Micrometer Readable Resolution [mm]: about 41.25´´
Bearing type: Crossed roller
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 147
Max. Moment Capacity / Pitch [Nm]: 5
Moment Stiffness / Pitch [´´/Ncm]: 0.2
Parallelism [µm]: 50
Eccentricity [µm]: 20
Wobble [µm]: 20
Gewicht in kg: 1.3

Downloads

OSE-KSPS.pdf

OSE-KSPB-906MUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: ?90
Rotation Range [°]: Coarse: 360 Fine: ±5
Scale Readable Resolution: 5´
Knob Rotation Angle[°/1 rotation]: about 41.25´´
Bearing type: Crossed roller
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 147
Max. Moment Capacity / Pitch [Nm]: 5
Moment Stiffness / Pitch [´´/Ncm]: 0.2
Parallelism [µm]: 50
Eccentricity [µm]: 20
Wobble [µm]: 20
Gewicht in kg: 1.3

Downloads

OSE-KSW.pdf

OSE-KSPB-906M-M6_STP.zip

ManualStages.zip

Actuators.pdf
