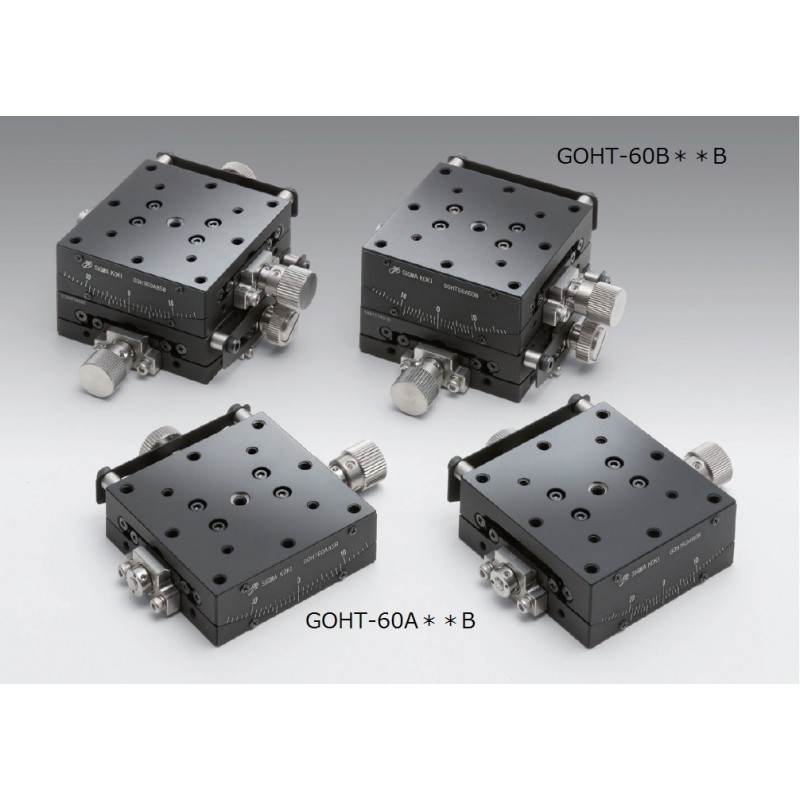

OSE-GOHT-60A: Goniometers, 60 x 60 mm

Reference number: OSE-GOHT-60A35B

Model

Rotation Center Height in mm

Need more info?
Contact our expert.

Our Team

Description

Type: Goniometers
Tabel Size [mm]: 60×60
Rotation Center Height [mm]: 35±0.1
Angle Range (Lower) Alpha axis [ ° ] : ±20
Vernier Readable Resolution: 0.1
Travel per Knob Rotation [°] : about 2.2
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 3
Max. Moment Capacity / Roll [Nm]: 6
Max. Moment Capacity / Yaw [Nm]: 3
Moment Stiffness / Roll [´´/Ncm]: 0.25
Moment Stiffness / Yaw [´´/Ncm]: 0.1
Parallelism [µm]: 30
Gewicht in kg: 0.6

Downloads

OSE-GOHT-60A_GOHT-60B.pdf

OSE-GOHT-60A35B_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 60×60
Rotation Center Height [mm]: 60±0.1
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 0.1
Travel per Knob Rotation [°] : about 1.46
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 3
Max. Moment Capacity / Roll [Nm]: 6
Max. Moment Capacity / Yaw [Nm]: 3
Moment Stiffness / Roll [´´/Ncm]: 0.25
Moment Stiffness / Yaw [´´/Ncm]: 0.1
Parallelism [µm]: 30
Gewicht in kg: 0.6

Downloads

OSE-GOHT-60A_GOHT-60B.pdf

OSE-GOHT-60A60B_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 60×60
Rotation Center Height [mm]: 85±0.1
Angle Range (Lower) Alpha axis [ ° ] : ±10
Vernier Readable Resolution: 0.1
Travel per Knob Rotation [°] : about 1.15
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 3
Max. Moment Capacity / Roll [Nm]: 6
Max. Moment Capacity / Yaw [Nm]: 3
Moment Stiffness / Roll [´´/Ncm]: 0.25
Moment Stiffness / Yaw [´´/Ncm]: 0.1
Parallelism [µm]: 30
Gewicht in kg: 0.6

Downloads

OSE-GOHT-60A_GOHT-60B.pdf

OSE-GOHT-60A85B_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 60×60
Rotation Center Height [mm]: 105±0.1
Angle Range (Lower) Alpha axis [ ° ] : ±8
Vernier Readable Resolution: 0.1
Travel per Knob Rotation [°] : about 0.95
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 3
Max. Moment Capacity / Roll [Nm]: 6
Max. Moment Capacity / Yaw [Nm]: 3
Moment Stiffness / Roll [´´/Ncm]: 0.25
Moment Stiffness / Yaw [´´/Ncm]: 0.1
Parallelism [µm]: 30
Gewicht in kg: 0.6

Downloads

OSE-GOHT-60A105B_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 60×60
Rotation Center Height [mm]: 35±0.1
Angle Range (Lower) Alpha axis [ ° ] : ±20
Vernier Readable Resolution: 0.1
Travel per Knob Rotation [°] : about 2.2
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 3
Max. Moment Capacity / Roll [Nm]: 6
Max. Moment Capacity / Yaw [Nm]: 3
Moment Stiffness / Roll [´´/Ncm]: 0.25
Moment Stiffness / Yaw [´´/Ncm]: 0.1
Parallelism [µm]: 30
Gewicht in kg: 0.6

Downloads

OSE-GOHT-60A_GOHT-60B.pdf

OSE-GOHT-60A35BR_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 60×60
Rotation Center Height [mm]: 60±0.1
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 0.1
Travel per Knob Rotation [°] : about 1.46
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 3
Max. Moment Capacity / Roll [Nm]: 6
Max. Moment Capacity / Yaw [Nm]: 3
Moment Stiffness / Roll [´´/Ncm]: 0.25
Moment Stiffness / Yaw [´´/Ncm]: 0.1
Parallelism [µm]: 30
Gewicht in kg: 0.6

Downloads

OSE-GOHT-60A_GOHT-60B.pdf

OSE-GOHT-60A60BR_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 60×60
Rotation Center Height [mm]: 85±0.1
Angle Range (Lower) Alpha axis [ ° ] : ±10
Vernier Readable Resolution: 0.1
Travel per Knob Rotation [°] : about 1.15
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 3
Max. Moment Capacity / Roll [Nm]: 6
Max. Moment Capacity / Yaw [Nm]: 3
Moment Stiffness / Roll [´´/Ncm]: 0.25
Moment Stiffness / Yaw [´´/Ncm]: 0.1
Parallelism [µm]: 30
Gewicht in kg: 0.6

Downloads

OSE-GOHT-60A_GOHT-60B.pdf

OSE-GOHT-60A85BR_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 60×60
Rotation Center Height [mm]: 105±0.1
Angle Range (Lower) Alpha axis [ ° ] : ±8
Vernier Readable Resolution: 0.1
Travel per Knob Rotation [°] : about 0.95
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 3
Max. Moment Capacity / Roll [Nm]: 6
Max. Moment Capacity / Yaw [Nm]: 3
Moment Stiffness / Roll [´´/Ncm]: 0.25
Moment Stiffness / Yaw [´´/Ncm]: 0.1
Parallelism [µm]: 30
Gewicht in kg: 0.6

Downloads

OSE-GOHT-60A105BR_STP.zip

ManualStages.zip

Actuators.pdf
