Optics & Optomechanics
Manual Positioning Systems

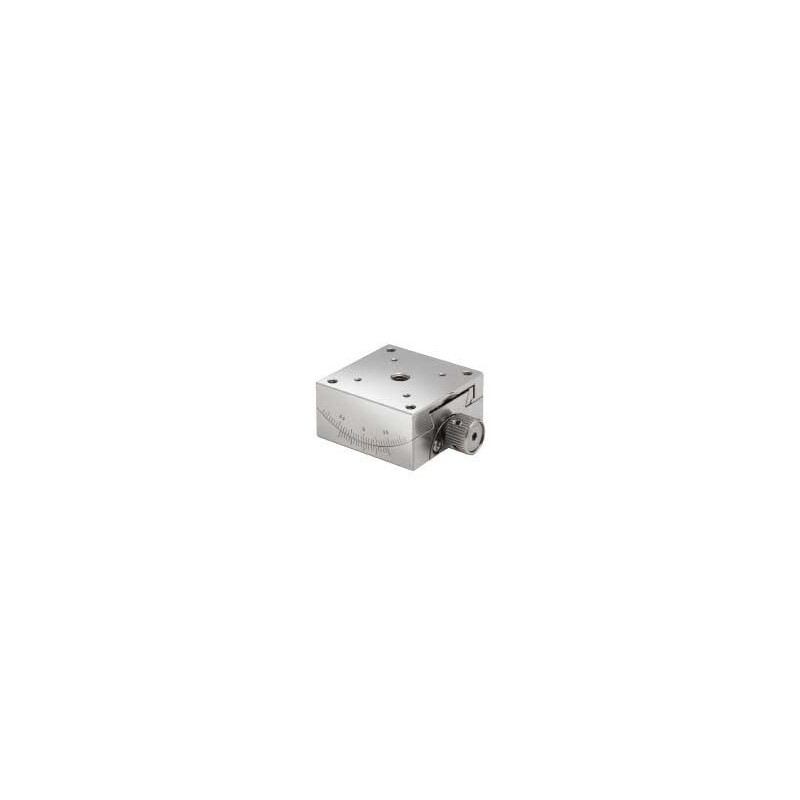

OSE-GOHS-40A: Vacuum, 40 x 40 mm

OSE-GOHS-40A: Vacuum, 40 x 40 mm

Reference number: OSE-GOHS-40A15

Rotation Center Height in mm

Rotation Center Height in mm

Need more info?
Contact our expert.

Our Team

I am interested in:

an offer

information material

a call and advice

*Required field

reCAPTCHA

Write your question

Email address^*

Message^*

^* Required fields

Question sent

Your question has been sent!

Your question cannot be sent!

Description

Type: Vacuum
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 15±0.1
Angle Range (Lower) Alpha axis [ ° ] : ±20
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 2.83
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?2 or less
Bearing type: Dovetail slide method
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 68.7
Max. Moment Capacity / Pitch [Nm]: 0.9
Max. Moment Capacity / Roll [Nm]: 1.2
Moment Stiffness / Roll [´´/Ncm]: 0.51
Parallelism [µm]: 50
Gewicht in kg: 0.25

Downloads

OSE-GOHS-40A_GOHS-40B.pdf

OSE-GOHS-40A15_STP.zip

ManualStages.zip

Actuators.pdf

Type: Vacuum
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 35±0.1
Angle Range (Lower) Alpha axis [ ° ] : ±20
Vernier Readable Resolution: 12"
Travel per Knob Rotation Alpha axis : about 1.74
Travel per Knob Rotation Beta axis : -
Rotation Center Displacement [mm]: ?2 or less
Bearing type: Dovetail slide method
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 68.7
Max. Moment Capacity / Pitch [Nm]: 0.9
Max. Moment Capacity / Roll [Nm]: 1.2
Moment Stiffness / Roll [´´/Ncm]: 0.51
Parallelism [µm]: 50
Gewicht in kg: 0.2

Downloads

OSE-GOHS-40A_GOHS-40B.pdf

OSE-GOHS-40A35_STP.zip

ManualStages.zip

Actuators.pdf
