Reference number: UNV-PW-QK

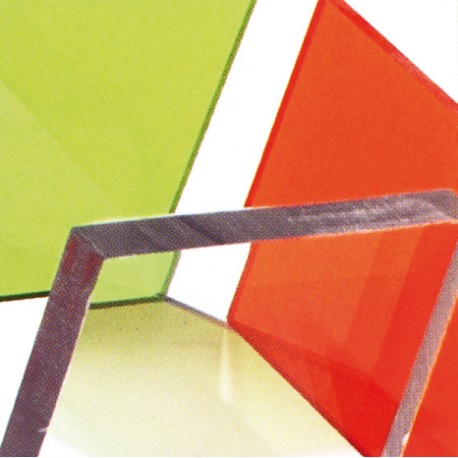

The laser protection windows 800-1085 nm made of acrylic, with a daylight transmission of 53 % protect with a filter thickness of 3.0 mm.

alt

Need more info?
Contact our expert.

Our Team

Description

Laser protection window (800-1085 nm)

The laser protection windows enable the observation of processes or work in the laboratory, without having to classify the entire area as a laser area. Depending on the required protection level or window size, you can choose between windows made of glass or plastic. In addition to a large number of standard sizes, customer-specific blanks are also possible.

Optical Density/ Wavelength:


190-315 nm OD 7
315-380 nm OD 5
800-1085 nm OD 5
815-1080 nm OD 6
830-1070 nm OD 7
850-1065 nm OD 8

Protection Levels (EN207):
190-315 nm D LB7 + IR LB4
315-380 nm D LB4 + IR LB5
800-1085 nm DIRM LB5
815-1080 nm DIR LB6 + M LB6Y
830-1070 nm D LB6 + IR LB7 + M LB7Y
850-1065 nm D LB6 + IR LB8 + M LB8Y

Protection Levels (EN12254):
190-315 nm D AB7 + IR AB3
315-380 nm DIR AB5
800-1085 nm DIRM AB5
815-1080 nm D AB5 + IRM AB6
830-1070 nm D AB5 + IR AB7 + M AB7Y
850-1065 nm D AB5 + I AB8 + R AB7 M AB8Y

  • CE
  • VLT: 53 %
  • Colour: Green
  • Material: Acrylic
  • Thickness: 3.0 mm

Standard Sizes:
100 x 200 mm
200 x 200 mm
210 x 297 mm
200 x 300 mm
300 x 450 mm
450 x 600 mm
914 x 609 mm
