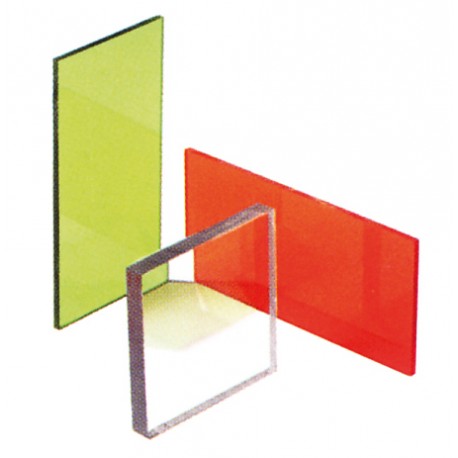

Laser Safety Window, 190-535 nm + 815-1085 nm, acrylic

search
  • unv_fenster_plastik3(1).jpg
  • unv_fenster_plastik1(2).jpg
  • unv_fenster_plastik2(2).jpg

Reference number: UNV-PW-FK

The laser protection windows 190-535 nm + 815-1085 nm made of acrylic, with a daylight transmission of 34 % protect with a filter thickness of 3.2 mm.

alt

Need more info?
Contact our expert.

Our Team

Description

Laser protection window (190-535 nm + 815-1085 nm)

The laser protection windows enable the observation of processes or work in the laboratory, without having to classify the entire area as a laser area. Depending on the required protection level or window size, you can choose between windows made of glass or plastic. In addition to a large number of standard sizes, customer-specific blanks are also possible.

Optical Density / Wavelength:


190-315 nm OD 6
315-535 nm OD 5
500-532 nm OD 7
815-1085 nm OD 3
845-1075 nm OD 4
885-1064 nm OD 5

Protection Levels (EN207:2009):

190-315 nm D LB6 IR LB3
315-535 nm DIR LB5
500-532 nm D LB5 IR LB7
815-1085 nm DIR LB3
845-1075 nm DIR LB4
885-1064 nm DIR LB5

  • VLT: 34 %
  • Colour: Orange
  • Filter Material: Acrylic
  • Thickness: 3.2mm
  • CE

Standard Sizes:
100 x 200 mm
200 x 200 mm
210 x 297 mm
200 x 300 mm
300 x 450 mm
450 x 600 mm
