In-Line Isolator 1300nm
Reference number: GPC-ISO-1300nm
In-Line Isolator 1300nm
Need more info?
Contact our expert.
Our Team
Description

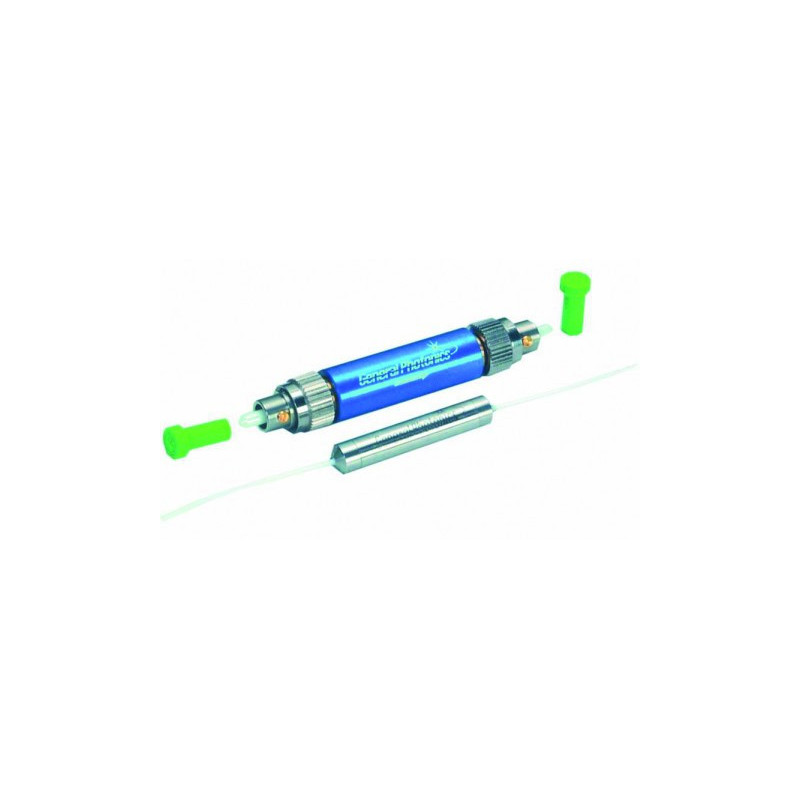

In-Line IsolatorThese isolators are the smallest in size but the highest in quality in the market. They are ruggedly built to function reliably in a wide variety of environments. The small size, low loss, and low reflection combine to make these isolators ideal for integration in many fiber optic systems. We also offer the NoTail version to eliminate the problems that pigtails can cause. The short optical path (~ 7 cm) of the NoTail isolator is desirable for ultra-short pulse and interferometric applications.
Specifications
Singe Isolator
| Peak Isolation: | > 40 dB |
| Min. Isolation: | > 32 dB |
| Insertion Loss (Typical): | 0,4 dB |
| Insertion Loss (Max.) | 0,5 dB max. |
| Operating Bandwidth: | +/- 15 nm |
| PMD: | < 0,1 ps |
Double Isolator
| Peak Isolation: | > 52 dB |
| Min. Isolation: | > 45 dB |
| Insertion Loss (Typical): | 0,5 dB |
| Insertion Loss (Max.) | 0,7 dB max. |
| Operating Bandwidth: | +/- 30 nm |
| PMD: | < 0,05 ps |
Same Specifications
| Return Loss (Input/Output): | >60/55 dB |
| PDL: | < 0,1 dB |
| Operating Center Wavelength: | 1300 |
| Operating Temperature: | -20 °C - 70° |
| Optical Power Handling: | 200 mW |
