Reference number: BRI-TLS200

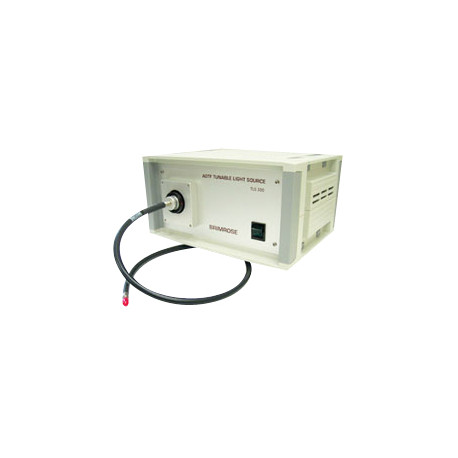

Fast Tunable Light Source based on AOTF Technology

alt

Need more info?
Contact our expert.

Our Team

Description

Fast Tunable Light Source based on AOTF Technology

The TLS200 is a newly developed state-of-the-art product by Brimrose which consists of white light source (Brimrose or customer provided), AOTF device, beam forming optics and AOTF driver. It is designed for time-resolvable microscopy applications if the customer would like to switch wavelengths within 20µs or pump multifrequency RF power to the AOTF to get multi-lines simultaneously. The AOTF driver is computer controlled using a Windows based software.

Brimrose offers several versions of the mechanical design in order to interface with different microscopes such as: Zeiss Axioskop 6, Axioplan, Axiotron, and Nikon Diaphot 200/300. TLS-200 can also be available for other microscopes.

Advantages of the TLS 200 include High Speed Microsecond Switching, Solid-State, No Moving Parts, Fiber Coupled and Compact Size. The TLS 200 is great for Fluorescence Spectroscopy. Also Normal, Fluorescence and Raman Time-Resloved Spectral Imaging in the Biomedical Industry. Quality and Process Control in the Microelectronics Sector. We offer Laboratory and OEM Solutions.

Applications

  • Fluorescence Spectroscopy
  • Normal, Fluorescence, and Raman Time-Resolved
  • Spectral Imaging in Biomedical Industry
  • Quality and Process Control in Microelectronic Industry
  • Laboratory and OEM Applications

Features

  • AOTF Solid-State Switching, NO MECHANICAL FILTER WHEEL
  • Up to 20µsec switching speeds
  • Rapid Continuous or Individual Wavelength Hopping
  • Wavelength Range covered 450-1700 nm (three versions)
  • Adjustable Electronic Neutral Density Filter for each Wavelength
  • Simultaneous Multi-Wavelength Switching also Available

Specifications

  • Wavelength Ranges: 450-700nm, 600-1000nm, 900-1700nm
  • Spectral Resolutions: 2-5nm, 10nm, 5-20nm
  • Light Source: 35 Watt Pre-Aligned Tungsten Lamp
  • Optical Output: Fiber Light Guide ø 1/4 Inch (Brimrose provided)
  • Output Optical Power: > 0.1mW @ 800nm
  • Internal Driver Electronics Options:
    SPS model: scanning 15msec fmin to fmax or hopping 15msec.
    SPF model: scanning 20 µsec fmin to fmax or hopping 1msec
  • Standard PC Interface: RS232 modular cable with DB9 connector via serial port
  • Computer Requirements: Pentium Type Computer (> 500MHz) with Win 98SE/2000/XP
  • Software: Windows based control software
  • Power Requirements: 90-240 VAC 50/60 Hz
  • Weight: 7.6 Kg/16.7 lbs
  • Dimensions: W x H x D: 330mm x 180mm x 330mm
  • Options: USB computer interface available


For more details please see the datasheet in the download section on the right hand side.
