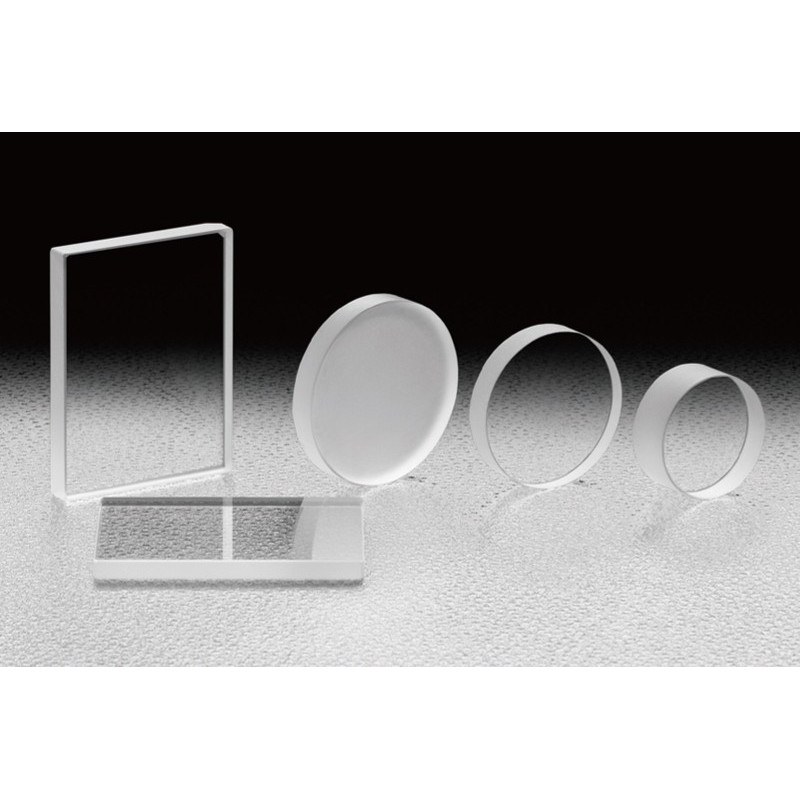

Reasonable Optical Flats, Polished

Reference number: OSE-S-OPB-25.4C03-10-5

These lower cost optical flats have minimal reduction in surface quality and are suitable for most applications.

Diameter in mm

Thickness in mm

Need more info?
Contact our expert.

Our Team

Description

Material: BK7
Surface flatness: λ/10
Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
Parallelism [´´]: <5´´
Surface Quality (Scratch-Dig): 60-40

Those products may also interest you

Concave Mirror Substrate, BK7

OSE-TCBS

€58.70
Concave Mirror substrate for laser, BK7

OSE-LCBS

€122.10
Optical Circle Parallel, BK7, Uncoated

OSE-OPB-C

€64.80
Optical Square Parallel, BK7, Uncoated

OSE-OPB-S

€81.00
Optical Circle Parallel, SiO2, Uncoated

OSE-OPSQ-C

€113.40

Type: Reasonable Optical parallel Flats
Diameter ØD [mm]: Ø25.4
Thickness t [mm]: 3
Material: BK7
Surface flatness: λ/10
Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
Parallelism [´´]: <5´´
Surface Quality (Scratch-Dig): 60-40

Downloads

OSE-S-OFB_S-OFBP_S-OPB_S-WSB.pdf

DOWNLOAD

Opt_Substratesundamp_Windows_.zip

DOWNLOAD

Type: Reasonable Optical parallel Flats
Diameter ØD [mm]: Ø25.4
Thickness t [mm]: 5
Material: BK7
Surface flatness: λ/10
Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
Parallelism [´´]: <5´´
Surface Quality (Scratch-Dig): 60-40

Downloads

OSE-S-OFB_S-OFBP_S-OPB_S-WSB.pdf

DOWNLOAD

Opt_Substratesundamp_Windows_.zip

DOWNLOAD

Type: Reasonable Optical parallel Flats
Diameter ØD [mm]: Ø30
Thickness t [mm]: 3
Material: BK7
Surface flatness: λ/10
Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
Parallelism [´´]: <5´´
Surface Quality (Scratch-Dig): 60-40

Downloads

OSE-S-OFB_S-OFBP_S-OPB_S-WSB.pdf

DOWNLOAD

Opt_Substratesundamp_Windows_.zip

DOWNLOAD

Type: Reasonable Optical parallel Flats
Diameter ØD [mm]: Ø30
Thickness t [mm]: 5
Material: BK7
Surface flatness: λ/10
Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
Parallelism [´´]: <5´´
Surface Quality (Scratch-Dig): 60-40

Downloads

OSE-S-OFB_S-OFBP_S-OPB_S-WSB.pdf

DOWNLOAD

Opt_Substratesundamp_Windows_.zip

DOWNLOAD

Type: Reasonable Optical parallel Flats
Diameter ØD [mm]: Ø40
Thickness t [mm]: 4
Material: BK7
Surface flatness: λ/10
Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
Parallelism [´´]: <5´´
Surface Quality (Scratch-Dig): 60-40

Downloads

OSE-S-OFB_S-OFBP_S-OPB_S-WSB.pdf

DOWNLOAD

Opt_Substratesundamp_Windows_.zip

DOWNLOAD

Type: Reasonable Optical parallel Flats
Diameter ØD [mm]: Ø40
Thickness t [mm]: 6
Material: BK7
Surface flatness: λ/10
Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
Parallelism [´´]: <5´´
Surface Quality (Scratch-Dig): 60-40

Downloads

OSE-S-OFB_S-OFBP_S-OPB_S-WSB.pdf

DOWNLOAD

Opt_Substratesundamp_Windows_.zip

DOWNLOAD

Type: Reasonable Optical parallel Flats
Diameter ØD [mm]: Ø50
Thickness t [mm]: 5
Material: BK7
Surface flatness: λ/10
Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
Parallelism [´´]: <5´´
Surface Quality (Scratch-Dig): 60-40

Downloads

OSE-S-OFB_S-OFBP_S-OPB_S-WSB.pdf

DOWNLOAD

Opt_Substratesundamp_Windows_.zip

DOWNLOAD

Type: Reasonable Optical parallel Flats
Diameter ØD [mm]: Ø50
Thickness t [mm]: 8
Material: BK7
Surface flatness: λ/10
Clear Aperture: 90% of actual aperture, or a circle or ellipse inscribed in the rectangle of 90% Dimensions
Parallelism [´´]: <5´´
Surface Quality (Scratch-Dig): 60-40
