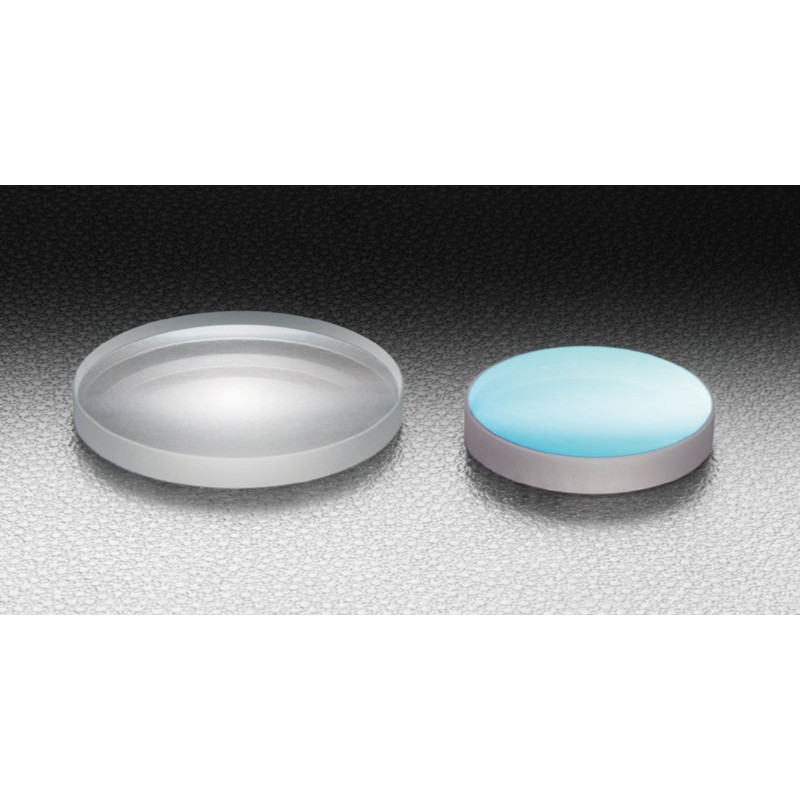

Concave Mirror substrate for laser, BK7

search

Reference number: OSE-LCBS-10C05-10

  • Type: Concave Mirror substrates for laser

Diameter in mm
Focal length in mm
alt

Need more info?
Contact our expert.

Our Team

Description

These concave substrates are the primary substrate used by mirrors for the laser cavity.

  • Type: Concave Mirror substrates for laser
  • Radius Tolerance: ±1%
  • Material: BK7
  • Surface accuracy: Front (concave) λ/4 Rear (flat) λ/4
  • Clear Aperture: 90% of actual diameter
  • Coating: Uncoated
  • Surface Quality (Scratch-Dig): 20-10
