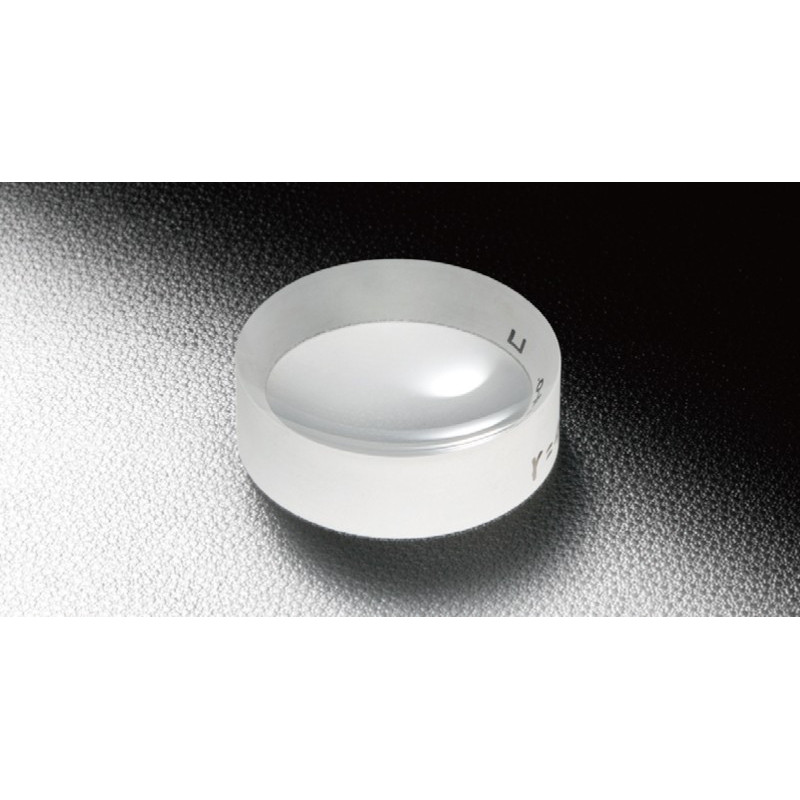

Concave Mirror Substrate, BK7
Reference number: OSE-TCBS-10C05-10
- Type: Concave Mirror Substrates
Need more info?
Contact our expert.
Our Team
Write your question
check_circle Question sent
Your question has been sent!
error Your question cannot be sent!
Description
These substrates are mainly used as the main mirror in a reflecting telescope or as a reflection of a light source of a collimating optical system.
- Type: Concave Mirror Substrates
- Radius Tolerance: ±2%
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Coating: Al+MgF2
- Surface Quality (Scratch-Dig): 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø10
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 3.7
- Radius of curvature r [mm]: 10
- Focal length f [mm]: 5
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø10
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.1
- Radius of curvature r [mm]: 15
- Focal length f [mm]: 7.5
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø10
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.4
- Radius of curvature r [mm]: 20
- Focal length f [mm]: 10
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø10
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.5
- Radius of curvature r [mm]: 25
- Focal length f [mm]: 12.5
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø10
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.6
- Radius of curvature r [mm]: 30
- Focal length f [mm]: 15
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø10
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.7
- Radius of curvature r [mm]: 40
- Focal length f [mm]: 20
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø10
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.7
- Radius of curvature r [mm]: 50
- Focal length f [mm]: 25
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø10
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.8
- Radius of curvature r [mm]: 60
- Focal length f [mm]: 30
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø10
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.8
- Radius of curvature r [mm]: 70
- Focal length f [mm]: 35
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø10
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.8
- Radius of curvature r [mm]: 80
- Focal length f [mm]: 40
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø10
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.9
- Radius of curvature r [mm]: 90
- Focal length f [mm]: 45
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø10
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.9
- Radius of curvature r [mm]: 100
- Focal length f [mm]: 50
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø10
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.9
- Radius of curvature r [mm]: 120
- Focal length f [mm]: 60
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø10
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.9
- Radius of curvature r [mm]: 150
- Focal length f [mm]: 75
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø10
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.9
- Radius of curvature r [mm]: 200
- Focal length f [mm]: 100
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø10
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.9
- Radius of curvature r [mm]: 250
- Focal length f [mm]: 125
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø10
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 300
- Focal length f [mm]: 150
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø10
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 4000
- Focal length f [mm]: 2000
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø10
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 500
- Focal length f [mm]: 250
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø10
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 600
- Focal length f [mm]: 300
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø10
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 700
- Focal length f [mm]: 350
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø10
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 800
- Focal length f [mm]: 400
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø10
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 1000
- Focal length f [mm]: 500
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø10
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 1500
- Focal length f [mm]: 750
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø10
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 2000
- Focal length f [mm]: 1000
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø10
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 2500
- Focal length f [mm]: 1250
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø10
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 3000
- Focal length f [mm]: 1500
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø10
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 5000
- Focal length f [mm]: 2500
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø10
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 10000
- Focal length f [mm]: 5000
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø15
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 7
- Thickness of the center tc [mm]: 3.6
- Radius of curvature r [mm]: 10
- Focal length f [mm]: 5
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø15
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 7
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 15
- Focal length f [mm]: 7.5
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø15
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 3.5
- Radius of curvature r [mm]: 20
- Focal length f [mm]: 10
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø15
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 3.8
- Radius of curvature r [mm]: 25
- Focal length f [mm]: 12.5
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø15
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4
- Radius of curvature r [mm]: 30
- Focal length f [mm]: 15
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø15
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.3
- Radius of curvature r [mm]: 40
- Focal length f [mm]: 20
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø15
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.4
- Radius of curvature r [mm]: 50
- Focal length f [mm]: 25
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø15
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.5
- Radius of curvature r [mm]: 60
- Focal length f [mm]: 30
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø15
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.6
- Radius of curvature r [mm]: 70
- Focal length f [mm]: 35
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø15
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.6
- Radius of curvature r [mm]: 80
- Focal length f [mm]: 40
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø15
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.7
- Radius of curvature r [mm]: 90
- Focal length f [mm]: 45
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø15
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.7
- Radius of curvature r [mm]: 100
- Focal length f [mm]: 50
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø15
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.8
- Radius of curvature r [mm]: 120
- Focal length f [mm]: 60
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø15
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.8
- Radius of curvature r [mm]: 150
- Focal length f [mm]: 75
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø15
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.9
- Radius of curvature r [mm]: 200
- Focal length f [mm]: 100
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø15
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.9
- Radius of curvature r [mm]: 250
- Focal length f [mm]: 125
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø15
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.9
- Radius of curvature r [mm]: 300
- Focal length f [mm]: 150
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø15
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.9
- Radius of curvature r [mm]: 400
- Focal length f [mm]: 200
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø15
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.9
- Radius of curvature r [mm]: 500
- Focal length f [mm]: 250
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø15
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 600
- Focal length f [mm]: 300
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø15
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 700
- Focal length f [mm]: 350
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø15
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 800
- Focal length f [mm]: 400
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø15
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 1000
- Focal length f [mm]: 500
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø15
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 1500
- Focal length f [mm]: 750
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø15
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 2000
- Focal length f [mm]: 1000
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø15
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 2500
- Focal length f [mm]: 1250
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø15
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 3000
- Focal length f [mm]: 1500
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø15
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 4000
- Focal length f [mm]: 2000
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø15
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 5000
- Focal length f [mm]: 2500
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø15
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 10000
- Focal length f [mm]: 5000
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø15
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 30000
- Focal length f [mm]: 15000
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø20
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 8
- Thickness of the center tc [mm]: 4.2
- Radius of curvature r [mm]: 15
- Focal length f [mm]: 7.5
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø20
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 8
- Thickness of the center tc [mm]: 5.3
- Radius of curvature r [mm]: 20
- Focal length f [mm]: 10
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø20
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 8
- Thickness of the center tc [mm]: 5.9
- Radius of curvature r [mm]: 25
- Focal length f [mm]: 12.5
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø20
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 3.3
- Radius of curvature r [mm]: 30
- Focal length f [mm]: 15
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø20
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 3.7
- Radius of curvature r [mm]: 40
- Focal length f [mm]: 20
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø20
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4
- Radius of curvature r [mm]: 50
- Focal length f [mm]: 25
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø20
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.2
- Radius of curvature r [mm]: 60
- Focal length f [mm]: 30
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø20
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.3
- Radius of curvature r [mm]: 70
- Focal length f [mm]: 35
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø20
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.4
- Radius of curvature r [mm]: 80
- Focal length f [mm]: 40
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø20
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.4
- Radius of curvature r [mm]: 90
- Focal length f [mm]: 45
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø20
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.5
- Radius of curvature r [mm]: 100
- Focal length f [mm]: 50
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø20
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.6
- Radius of curvature r [mm]: 120
- Focal length f [mm]: 60
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø20
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.7
- Radius of curvature r [mm]: 150
- Focal length f [mm]: 75
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø20
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.7
- Radius of curvature r [mm]: 200
- Focal length f [mm]: 100
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø20
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.8
- Radius of curvature r [mm]: 250
- Focal length f [mm]: 125
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø20
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.8
- Radius of curvature r [mm]: 300
- Focal length f [mm]: 150
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø20
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.9
- Radius of curvature r [mm]: 400
- Focal length f [mm]: 200
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø20
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.9
- Radius of curvature r [mm]: 500
- Focal length f [mm]: 250
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø20
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.9
- Radius of curvature r [mm]: 600
- Focal length f [mm]: 300
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø20
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.9
- Radius of curvature r [mm]: 700
- Focal length f [mm]: 350
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø20
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.9
- Radius of curvature r [mm]: 800
- Focal length f [mm]: 400
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø20
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 1000
- Focal length f [mm]: 500
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø20
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 1500
- Focal length f [mm]: 750
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø20
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 2000
- Focal length f [mm]: 1000
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø20
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 2500
- Focal length f [mm]: 1250
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø20
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 3000
- Focal length f [mm]: 1500
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø20
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 4000
- Focal length f [mm]: 2000
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø20
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 5000
- Focal length f [mm]: 2500
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø20
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 10000
- Focal length f [mm]: 5000
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø20
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 30000
- Focal length f [mm]: 15000
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 10
- Thickness of the center tc [mm]: 3.3
- Radius of curvature r [mm]: 15
- Focal length f [mm]: 7.5
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 7
- Thickness of the center tc [mm]: 2.6
- Radius of curvature r [mm]: 20
- Focal length f [mm]: 10
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 7
- Thickness of the center tc [mm]: 3.7
- Radius of curvature r [mm]: 25
- Focal length f [mm]: 12.5
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 7
- Thickness of the center tc [mm]: 4.3
- Radius of curvature r [mm]: 30
- Focal length f [mm]: 15
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 7
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 40
- Focal length f [mm]: 20
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 7
- Thickness of the center tc [mm]: 5.4
- Radius of curvature r [mm]: 50
- Focal length f [mm]: 25
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 3.7
- Radius of curvature r [mm]: 60
- Focal length f [mm]: 30
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 3.9
- Radius of curvature r [mm]: 70
- Focal length f [mm]: 35
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4
- Radius of curvature r [mm]: 80
- Focal length f [mm]: 40
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.1
- Radius of curvature r [mm]: 90
- Focal length f [mm]: 45
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.2
- Radius of curvature r [mm]: 100
- Focal length f [mm]: 50
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 10000
- Focal length f [mm]: 5000
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.5
- Radius of curvature r [mm]: 150
- Focal length f [mm]: 75
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.6
- Radius of curvature r [mm]: 200
- Focal length f [mm]: 100
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.6
- Radius of curvature r [mm]: 250
- Focal length f [mm]: 125
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.7
- Radius of curvature r [mm]: 300
- Focal length f [mm]: 150
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.7
- Radius of curvature r [mm]: 400
- Focal length f [mm]: 200
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.8
- Radius of curvature r [mm]: 500
- Focal length f [mm]: 250
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.8
- Radius of curvature r [mm]: 600
- Focal length f [mm]: 300
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.9
- Radius of curvature r [mm]: 700
- Focal length f [mm]: 350
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.9
- Radius of curvature r [mm]: 800
- Focal length f [mm]: 400
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.9
- Radius of curvature r [mm]: 1000
- Focal length f [mm]: 500
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.9
- Radius of curvature r [mm]: 1500
- Focal length f [mm]: 750
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.9
- Radius of curvature r [mm]: 2000
- Focal length f [mm]: 1000
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 2500
- Focal length f [mm]: 1250
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 3000
- Focal length f [mm]: 1500
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 4000
- Focal length f [mm]: 2000
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 5000
- Focal length f [mm]: 2500
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 10000
- Focal length f [mm]: 5000
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 30000
- Focal length f [mm]: 15000
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25.4
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 7
- Thickness of the center tc [mm]: 5.4
- Radius of curvature r [mm]: 50
- Focal length f [mm]: 25
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25.4
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.2
- Radius of curvature r [mm]: 100
- Focal length f [mm]: 50
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25.4
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.7
- Radius of curvature r [mm]: 250
- Focal length f [mm]: 125
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25.4
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.8
- Radius of curvature r [mm]: 500
- Focal length f [mm]: 250
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø25.4
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.9
- Radius of curvature r [mm]: 1000
- Focal length f [mm]: 500
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø30
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 10
- Thickness of the center tc [mm]: 3.2
- Radius of curvature r [mm]: 20
- Focal length f [mm]: 10
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø30
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 10
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 25
- Focal length f [mm]: 12.5
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø30
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 7
- Thickness of the center tc [mm]: 3
- Radius of curvature r [mm]: 30
- Focal length f [mm]: 15
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø30
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 7
- Thickness of the center tc [mm]: 4.1
- Radius of curvature r [mm]: 40
- Focal length f [mm]: 20
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø30
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 7
- Thickness of the center tc [mm]: 4.7
- Radius of curvature r [mm]: 50
- Focal length f [mm]: 25
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø30
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 7
- Thickness of the center tc [mm]: 5.1
- Radius of curvature r [mm]: 60
- Focal length f [mm]: 30
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø30
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 7
- Thickness of the center tc [mm]: 5.4
- Radius of curvature r [mm]: 70
- Focal length f [mm]: 35
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø30
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 7
- Thickness of the center tc [mm]: 5.6
- Radius of curvature r [mm]: 80
- Focal length f [mm]: 40
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø30
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 7
- Thickness of the center tc [mm]: 5.7
- Radius of curvature r [mm]: 90
- Focal length f [mm]: 45
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø30
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 7
- Thickness of the center tc [mm]: 5.9
- Radius of curvature r [mm]: 100
- Focal length f [mm]: 50
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø30
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.1
- Radius of curvature r [mm]: 120
- Focal length f [mm]: 60
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø30
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.2
- Radius of curvature r [mm]: 150
- Focal length f [mm]: 75
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø30
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.4
- Radius of curvature r [mm]: 200
- Focal length f [mm]: 100
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø30
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.5
- Radius of curvature r [mm]: 250
- Focal length f [mm]: 125
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø30
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.6
- Radius of curvature r [mm]: 300
- Focal length f [mm]: 150
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø30
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.7
- Radius of curvature r [mm]: 400
- Focal length f [mm]: 200
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø30
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.8
- Radius of curvature r [mm]: 500
- Focal length f [mm]: 250
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø30
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.8
- Radius of curvature r [mm]: 600
- Focal length f [mm]: 300
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø30
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.8
- Radius of curvature r [mm]: 700
- Focal length f [mm]: 350
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø30
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.9
- Radius of curvature r [mm]: 800
- Focal length f [mm]: 400
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø30
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.9
- Radius of curvature r [mm]: 1000
- Focal length f [mm]: 500
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø30
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.9
- Radius of curvature r [mm]: 1500
- Focal length f [mm]: 750
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø30
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 4.9
- Radius of curvature r [mm]: 2000
- Focal length f [mm]: 1000
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø30
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 2500
- Focal length f [mm]: 1250
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø30
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 3000
- Focal length f [mm]: 1500
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø30
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 3500
- Focal length f [mm]: 1750
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø30
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 4000
- Focal length f [mm]: 2000
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø30
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 5000
- Focal length f [mm]: 2500
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø30
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 10000
- Focal length f [mm]: 5000
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø30
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 5
- Thickness of the center tc [mm]: 5
- Radius of curvature r [mm]: 30000
- Focal length f [mm]: 15000
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø40
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 13
- Thickness of the center tc [mm]: 3
- Radius of curvature r [mm]: 25
- Focal length f [mm]: 12.5
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø40
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 13
- Thickness of the center tc [mm]: 5.4
- Radius of curvature r [mm]: 30
- Focal length f [mm]: 15
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø40
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 13
- Thickness of the center tc [mm]: 7.6
- Radius of curvature r [mm]: 40
- Focal length f [mm]: 20
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø40
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 13
- Thickness of the center tc [mm]: 8.8
- Radius of curvature r [mm]: 50
- Focal length f [mm]: 25
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø40
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 10
- Thickness of the center tc [mm]: 6.6
- Radius of curvature r [mm]: 60
- Focal length f [mm]: 30
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø40
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 10
- Thickness of the center tc [mm]: 7.1
- Radius of curvature r [mm]: 70
- Focal length f [mm]: 35
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø40
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 8
- Thickness of the center tc [mm]: 5.5
- Radius of curvature r [mm]: 80
- Focal length f [mm]: 40
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø40
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 8
- Thickness of the center tc [mm]: 5.7
- Radius of curvature r [mm]: 90
- Focal length f [mm]: 45
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø40
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 8
- Thickness of the center tc [mm]: 6
- Radius of curvature r [mm]: 100
- Focal length f [mm]: 50
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø40
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 7
- Thickness of the center tc [mm]: 5.7
- Radius of curvature r [mm]: 150
- Focal length f [mm]: 75
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø40
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 7
- Thickness of the center tc [mm]: 6
- Radius of curvature r [mm]: 200
- Focal length f [mm]: 100
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø40
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 7
- Thickness of the center tc [mm]: 6.2
- Radius of curvature r [mm]: 250
- Focal length f [mm]: 125
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø40
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 6
- Thickness of the center tc [mm]: 5.3
- Radius of curvature r [mm]: 300
- Focal length f [mm]: 150
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø40
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 6
- Thickness of the center tc [mm]: 5.5
- Radius of curvature r [mm]: 400
- Focal length f [mm]: 200
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø40
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 6
- Thickness of the center tc [mm]: 5.6
- Radius of curvature r [mm]: 500
- Focal length f [mm]: 250
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø40
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 6
- Thickness of the center tc [mm]: 5.8
- Radius of curvature r [mm]: 1000
- Focal length f [mm]: 500
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø40
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 6
- Thickness of the center tc [mm]: 5.9
- Radius of curvature r [mm]: 1500
- Focal length f [mm]: 750
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø50
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 16
- Thickness of the center tc [mm]: 7.2
- Radius of curvature r [mm]: 40
- Focal length f [mm]: 20
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø50
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 13
- Thickness of the center tc [mm]: 6.3
- Radius of curvature r [mm]: 50
- Focal length f [mm]: 25
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø50
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 10
- Thickness of the center tc [mm]: 4.5
- Radius of curvature r [mm]: 60
- Focal length f [mm]: 30
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø50
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 10
- Thickness of the center tc [mm]: 5.4
- Radius of curvature r [mm]: 70
- Focal length f [mm]: 35
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø50
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 10
- Thickness of the center tc [mm]: 6
- Radius of curvature r [mm]: 80
- Focal length f [mm]: 40
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø50
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 10
- Thickness of the center tc [mm]: 6.5
- Radius of curvature r [mm]: 90
- Focal length f [mm]: 45
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø50
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 10
- Thickness of the center tc [mm]: 6.8
- Radius of curvature r [mm]: 100
- Focal length f [mm]: 50
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø50
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 8
- Thickness of the center tc [mm]: 5.4
- Radius of curvature r [mm]: 120
- Focal length f [mm]: 60
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø50
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 8
- Thickness of the center tc [mm]: 5.9
- Radius of curvature r [mm]: 150
- Focal length f [mm]: 75
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø50
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 8
- Thickness of the center tc [mm]: 6.4
- Radius of curvature r [mm]: 200
- Focal length f [mm]: 100
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø50
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 8
- Thickness of the center tc [mm]: 6.7
- Radius of curvature r [mm]: 250
- Focal length f [mm]: 125
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø50
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 8
- Thickness of the center tc [mm]: 7
- Radius of curvature r [mm]: 300
- Focal length f [mm]: 150
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø50
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 8
- Thickness of the center tc [mm]: 7.2
- Radius of curvature r [mm]: 400
- Focal length f [mm]: 200
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø50
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 8
- Thickness of the center tc [mm]: 7.4
- Radius of curvature r [mm]: 500
- Focal length f [mm]: 250
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø50
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 8
- Thickness of the center tc [mm]: 7.5
- Radius of curvature r [mm]: 600
- Focal length f [mm]: 300
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø50
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 8
- Thickness of the center tc [mm]: 7.6
- Radius of curvature r [mm]: 700
- Focal length f [mm]: 350
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø50
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 8
- Thickness of the center tc [mm]: 7.6
- Radius of curvature r [mm]: 800
- Focal length f [mm]: 400
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø50
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 8
- Thickness of the center tc [mm]: 7.7
- Radius of curvature r [mm]: 1000
- Focal length f [mm]: 500
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø50
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 8
- Thickness of the center tc [mm]: 7.8
- Radius of curvature r [mm]: 1500
- Focal length f [mm]: 750
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø50
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 8
- Thickness of the center tc [mm]: 7.8
- Radius of curvature r [mm]: 2000
- Focal length f [mm]: 1000
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø50
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 8
- Thickness of the center tc [mm]: 7.9
- Radius of curvature r [mm]: 2500
- Focal length f [mm]: 1250
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø50
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 8
- Thickness of the center tc [mm]: 7.9
- Radius of curvature r [mm]: 3000
- Focal length f [mm]: 1500
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø50
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 8
- Thickness of the center tc [mm]: 7.9
- Radius of curvature r [mm]: 3500
- Focal length f [mm]: 1750
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø50
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 8
- Thickness of the center tc [mm]: 7.9
- Radius of curvature r [mm]: 4000
- Focal length f [mm]: 2000
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø50
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 8
- Thickness of the center tc [mm]: 7.9
- Radius of curvature r [mm]: 5000
- Focal length f [mm]: 2500
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø50
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 8
- Thickness of the center tc [mm]: 8
- Radius of curvature r [mm]: 10000
- Focal length f [mm]: 5000
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
- Diameter ØD [mm]: Ø50
- Radius Tolerance: ±2%
- Thickness of the edge te [mm]: 8
- Thickness of the center tc [mm]: 8
- Radius of curvature r [mm]: 30000
- Focal length f [mm]: 15000
- Material: BK7
- Spherical accuracy: λ/2
- Clear Aperture: 85% of actual aperture
- Surface Quality (Scratch-Dig): 20-10
- Surface Quality (Scratch-Dig) With Coating: 40-20
- Rear Surface: Ground
- Type: Concave Mirror Substrates
