Description

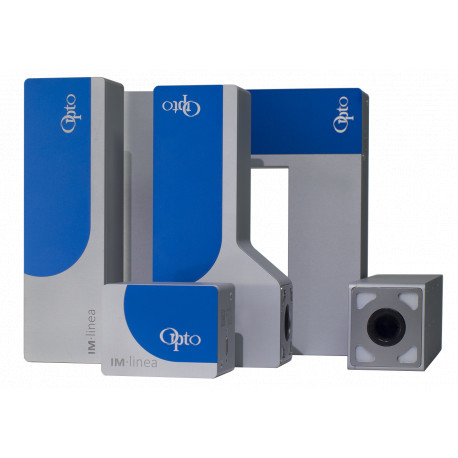

Opto's family of imaging modules are integrated plug & play vision sensors, with an optimized combination of onboard camera, lighting, optics and integrated electronics. Designed for almost any imaging application for Industry 4.0, they offer a high level of intelligence and ease of use. Easily integrated into any production environment - from gauges for testing, to roundness analysis or systems, to bio-imaging instrumentation - these modules provide an elegant rapid deployment solution. Each module comes with its own imaging software.
Applications/Markets:
-Metallography
-Bond inspection, board inspection, ... etc. (semiconductor market)
-Easy optical final inspection of parts
-Flow cytometry
-Life science -> fluorescence, multifluorescence ...
Unique selling points:
-Very good image quality
-Calibrated (-> fixed magnification)
-No moving parts inside
-Compact design
-2 light sources -> ring light and coaxial illumination
-Cost effective
-Software:
-Free of charge
-Simple geometric information measurable
-Matrox interface
-Solino software as an option (surface analysis, particle counter, ... etc.)
Technical Specifications
'IMlinea S'
FoV [mm] | WD [mm] | Resolution* [LP/mm] | [µm/pixel] | Image | Frames/sec | linea S Eco USB |
55 x 41 | 300 | 12,5 | 38 | monochrom | 243 | IL-0610002UBE |
55 x 41 | 300 | 12,5 | 38 | color | 243 | IL-0610002UCE |
89 x 67 | 300 | 8 | 61 | monochrom | 243 | IL-0610001UBE |
89 x 67 | 300 | 8 | 61 | color | 243 | IL-0610001UCE |
95 x 71 | 500 | 7 | 66 | monochrom | 243 | IL-0610003UBE |
95 x 71 | 500 | 7 | 66 | color | 243 | IL-0610003UCE |
151 x 113 | 500 | 5 | 104 | monochrom | 243 | IL-0600001UBE |
151 x 113 | 500 | 5 | 104 | color | 243 | IL-0600001UCE |
195 x 146 | 1000 | 4 | 135 | monochrom | 243 | IL-0600003UBE |
195 x 146 | 1000 | 4 | 135 | color | 243 | IL-0600003UCE |
307 x 230 | 1000 | 2,5 | 212 | monochrom | 243 | IL-0600002UBE |
307 x 230 | 1000 | 2,5 | 212 | color | 243 | IL-0600002UCE |
*Resolution: achievable [LP/mm] | measurement [µm/pixel]
Sensor: 1.6 MP / IMX273 **
dimensions: 60 x 46 x 40 mm | weight: 0,16 kg
'IMlinea M / IMcompact M'
FoV [mm] | WD [mm] | Resolution* [LP/mm] | [µm/pixel] | Image | Frames/sec | sensor** | linea M | compact M |
7,1 x 5,3 | 87 | 147 | 3.4 | mono | 55 | 3.1 MP IMX265 | IL-1451001UBE | IC-1451001UBE |
7,1 x 5,3 | 87 | - | 3.4 | color | 55 | 3.1 MP IMX265 | IL-1451001UCE | IC-1451001UCE |
8,5 x 7,1 | 87 | 147 | 3.4 | mono | 36 | 5.0 MP IMX264 | IL-1452001UBE | IC-1452001UBE |
8,5 x 7,1 | 87 | - | 3.4 | color | 36 | 5.0 MP IMX264 | IL-1452001UCE | IC-1452001UCE |
9,5 x 7,1 | 99 | 110 | 4.6 | mono | 55 | 3.1 MP IMX265 | IL-1431001UBE | IC-1431001UBE |
9,5 x 7,1 | 99 | - | 4.6 | color | 55 | 3.1 MP IMX265 | IL-1431001UCE | IC-1431001UCE |
11,3 x 9,4 | 99 | 110 | 4.6 | mono | 36 | 5.0 MP IMX264 | IL-1432001UBE | IC-1432001UBE |
11,3 x 19,4 | 99 | - | 4.6 | color | 36 | 5.0 MP IMX264 | IL-0600001UCE | IC-1432001UCE |
14,2 x 10,7 | 132 | 71 | 6.9 | mono | 55 | 3.1 MP IMX265 | IL-1531001UBE | IC-1531001UBE |
14,2 x 10,7 | 132 | - | 6.9 | color | 55 | 3.1 MP IMX265 | IL-1531001UCE | IC-1531001UCE |
16,9 x 14,1 | 132 | 71 | 6.9 | mono | 36 | 5.0 MP IMX264 | IL-1532001UBE | IC-1532001UBE |
16,9 x 14,1 | 132 | - | 6.9 | color | 36 | 5.0 MP IMX264 | IL-1532001UCE | IC-1532001UCE |
23,7 x 17,8 | 202 | 45 | 11.5 | mono | 55 | 3.1 MP IMX265 | IL-1621001UBE | IC-1621001UBE |
23,7 x 17,8 | 202 | - | 11.5 | color | 55 | 3.1 MP IMX265 | IL-1621001UCE | IC-1621001UCE |
28,2 x 23,6 | 202 | 45 | 11.5 | mono | 36 | 5.0 MP IMX264 | IL-1622001UBE | IC-1622001UBE |
28,2 x 23,6 | 202 | - | 11.5 | color | 36 | 5.0 MP IMX264 | IL-1622001UCE | IC-1622001UCE |
*Resolution: achievable [LP/mm] | measurement [µm/pixel]
IMlinea M: dimensions: 155 x 46 x 40 mm | weight: 0,4 kg
IMcompact M: dimensions: 150 x 70 x 40 mm | weight: 0,5 kg
'IMlinea M' integrated lighting
FoV [mm] | WD [mm] | Resolution* [LP/mm] | [µm/pixel] | Image | Frames/sec | sensor** | Light [LED white] | Article-No. |
7,1 x 5,3 | 87 | 147 | 3.4 | mono | 55 | 3.1 MP IMX265 | ring | IL-4451301UBE |
7,1 x 5,3 | 87 | - | 3.4 | color | 55 | 3.1 MP IMX265 | ring | IL-4451301UCE |
8,5 x 7,1 | 87 | 147 | 3.4 | mono | 36 | 5.0 MP IMX264 | ring | IL-4452301UBE |
8,5 x 7,1 | 87 | - | 3.4 | color | 36 | 5.0 MP IMX264 | ring | IL-4452301UCE |
9,5 x 7,1 | 99 | 110 | 4.6 | mono | 55 | 3.1 MP IMX265 | ring | IL-4431301UBE |
9,5 x 7,1 | 99 | - | 4.6 | color | 55 | 3.1 MP IMX265 | ring | IL-4431301UCE |
11,3 x 9,4 | 99 | 110 | 4.6 | mono | 36 | 5.0 MP IMX264 | ring | IL-4432301UBE |
11,3 x 19,4 | 99 | - | 4.6 | color | 36 | 5.0 MP IMX264 | ring | IL-4432301UCE |
14,2 x 10,7 | 132 | 71 | 6.9 | mono | 55 | 3.1 MP IMX265 | ring | IL-4531301UBE |
14,2 x 10,7 | 132 | - | 6.9 | color | 55 | 3.1 MP IMX265 | ring | IL-4531301UCE |
16,9 x 14,1 | 132 | 71 | 6.9 | mono | 36 | 5.0 MP IMX264 | ring | IL-4532301UBE |
16,9 x 14,1 | 132 | - | 6.9 | color | 36 | 5.0 MP IMX264 | ring | IL-4532301UCE |
23,7 x 17,8 | 202 | 45 | 11.5 | mono | 55 | 3.1 MP IMX265 | ring | IL-4621301UBE |
23,7 x 17,8 | 202 | - | 11.5 | color | 55 | 3.1 MP IMX265 | ring | IL-4621301UCE |
28,2 x 23,6 | 202 | 45 | 11.5 | mono | 36 | 5.0 MP IMX264 | ring | IL-4622301UBE |
28,2 x 23,6 | 202 | - | 11.5 | color | 36 | 5.0 MP IMX264 | ring | IL-4622301UCE |
*Resolution: achievable [LP/mm] | measurement [µm/pixel]
dimensions: 155 x 46 x 40 mm | weight: 0,4 kg
'IMcompact M' integrated lighting (coaxial+ring) 'Machine Vision Microscope'
FoV [mm] | WD [mm] | Resolution*[LP/mm] | Image | Frames/sec | sensor** | Light [LED white] | Article-No. |
4,5 x 3,4 | 31 | 270 | mono | 36 | 5.0 MP IMX264 | coax+ring | IC-4352701UBE |
4,5 x 3,4 | 31 | - | color | 36 | 5.0 MP IMX264 | coax+ring | IC-4352701UCE |
3,8 x 2,8 | 31 | 270 | mono | 55 | 3.1 MP IMX265 | coax+ring | IC-4351701UBE |
3,8 x 2,8 | 31 | - | color | 55 | 3.1 MP IMX265 | coax+ring | IC-4351701UCE |
2,2 x 1,8 | 36 | 555 | mono | 36 | 5.0 MP IMX264 | coax+ring | IC-4352702UBE |
2,2 x 1,8 | 36 | - | color | 36 | 5.0 MP IMX264 | coax+ring | IC-4352702UCE |
1,8 x 1,4 | 36 | 555 | mono | 36 | 3.1 MP IMX265 | coax+ring | IC-4351702UBE |
1,8 x 1,4 | 36 | - | color | 36 | 3.1 MP IMX265 | coax+ring | IC-4351702UCE |
1,8 x 1,4 | 13 | 555 | mono | 55 | 3.1 MP IMX265 | coax | IC-4251101UBE |
1,8 x 1,4 | 13 | - | color | 55 | 3.1 MP IMX265 | coax | IC-4251101UCE |
*Resolution: achievable [LP/mm] | measurement [µm/pixel]
dimensions: 150 x 70 x 40 mm | weight: 0,5 kg
all modules are equipped with USB 3.1 | CE / RohS-conform / WEEE
**Sony Pregius Sensors
Sony IMX273 1/3" with 3.45 µm pixel size | aspect ratio 4.3 (1448 x 1086) | full resolution at 243 fps
Sony IMX265 1/1.8" with 3.45 µm pixel size | aspect ratio 4.3 (2056 x 1542) | full resolution with up to 57 fps
Sony IMX264 2/3" with 3.45 µm pixel size | aspect ratio 4.3 (2464 x 2056) | full resolution with up to 57 fps
