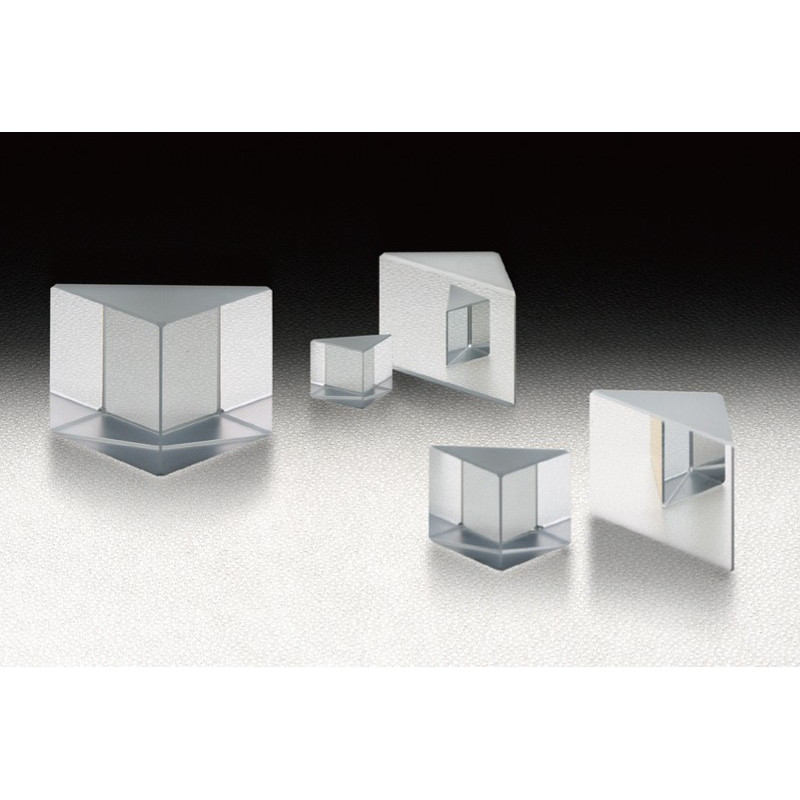

Right Angle Prisms, SiO2

Reference number: OSE-RPSQ-05-2L

Rectangular prisms that are not coated can be used in various applications, such as total internal reflection critical angle and wavelength dispersion.

Surface Flatness

A - B in mm

Need more info?
Contact our expert.

Our Team

Description

Material: Synthetic fused silica
Refractive index nd: 1.458
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface

Those products may also interest you

Corner Cube Prisms

OSE-CCB

€472.10
Parabolic Lens

OSE-CPC-14.24C29.02-P

€94.30
Dove Prisms

OSE-DOP

€147.10
Equilateral Dispersing Prisms, BK7

OSE-DPB

€179.10
Equilateral Dispersing Prisms, SiO2

OSE-DPSQ

€244.20

Material: Synthetic fused silica
Refractive index nd: 1.458
Surface flatness of substrate: ?/2
Surface Quality (Scratch-Dig): 2010
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 5
Angle accuracy 90°: ±3´´
Angle accuracy 45°: ±3´´
