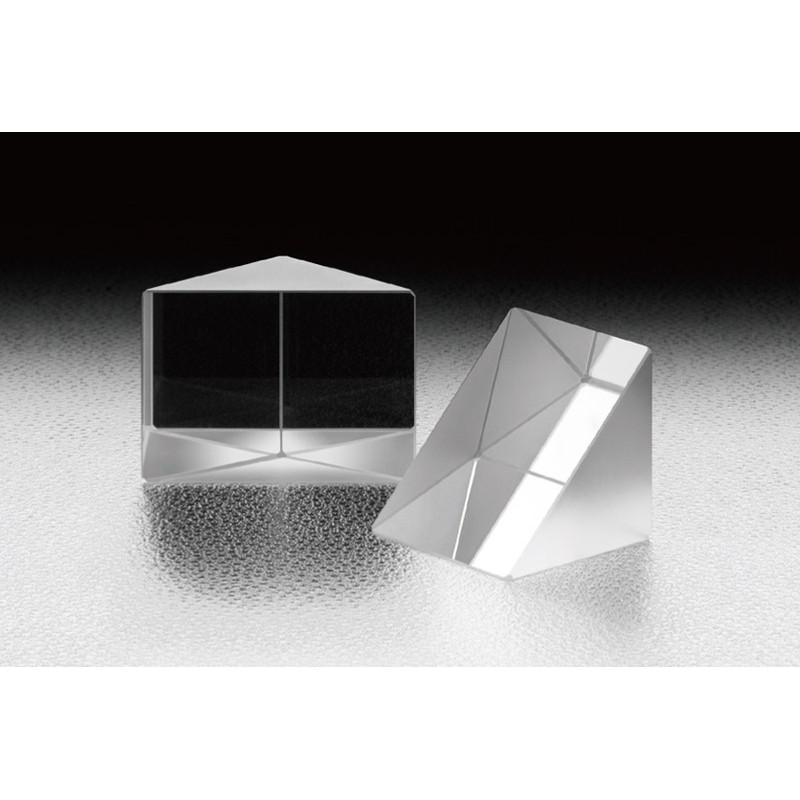

Right Angle Prisms, BK7

Reference number: OSE-RPB1-05-550

Rectangular prisms that are not coated can be used in various applications, such as total internal reflection of critical angles and wavelength dispersion.

Type

A - B in mm

Need more info?
Contact our expert.

Our Team

Description

Material: BK7
Refractive index nd: 1.517
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface

Those products may also interest you

Corner Cube Prisms

OSE-CCB

€472.10
Parabolic Lens

OSE-CPC-14.24C29.02-P

€94.30
Dove Prisms

OSE-DOP

€147.10
Equilateral Dispersing Prisms, BK7

OSE-DPB

€179.10
Equilateral Dispersing Prisms, SiO2

OSE-DPSQ

€244.20

Material: BK7
Refractive index nd: 1.517
Surface flatness of substrate: ?/2
Surface Quality (Scratch-Dig): 2010
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 1
Angle accuracy 90°: ±3´
Angle accuracy 45°: ±3´

Downloads

OSE-RPB-01-2L_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Surface flatness of substrate: ?/2
Surface Quality (Scratch-Dig): 2010
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 2
Angle accuracy 90°: ±3´
Angle accuracy 45°: ±3´

Downloads

OSE-RPB-02-2L_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Surface flatness of substrate: ?/2
Surface Quality (Scratch-Dig): 2010
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 3
Angle accuracy 90°: ±3´
Angle accuracy 45°: ±3´

Downloads

OSE-RPB-03-2L_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Surface flatness of substrate: ?/2
Surface Quality (Scratch-Dig): 2010
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 4
Angle accuracy 90°: ±3´
Angle accuracy 45°: ±3´

Downloads

OSE-RPB-04-2L_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Surface flatness of substrate: ?/2
Surface Quality (Scratch-Dig): 2010
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 5
Angle accuracy 90°: ±3´
Angle accuracy 45°: ±3´

Downloads

OSE-RPB-05-2L_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Surface flatness of substrate: ?/2
Surface Quality (Scratch-Dig): 2010
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 7
Angle accuracy 90°: ±3´
Angle accuracy 45°: ±3´

Downloads

OSE-RPB-07-2L_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Surface flatness of substrate: ?/2
Surface Quality (Scratch-Dig): 2010
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 10
Angle accuracy 90°: ±3´
Angle accuracy 45°: ±3´

Downloads

OSE-RPB-10-2L_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Surface flatness of substrate: λ/4
Surface Quality (Scratch-Dig): 105
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 1
Angle accuracy 90°: ±1´
Angle accuracy 45°: ±1´

Downloads

OSE-RPB-01-4M_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Surface flatness of substrate: λ/4
Surface Quality (Scratch-Dig): 105
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 2
Angle accuracy 90°: ±1´
Angle accuracy 45°: ±1´

Downloads

OSE-RPB-02-4M_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Surface flatness of substrate: λ/4
Surface Quality (Scratch-Dig): 105
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 3
Angle accuracy 90°: ±1´
Angle accuracy 45°: ±1´

Downloads

OSE-RPB-03-4M_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Surface flatness of substrate: λ/4
Surface Quality (Scratch-Dig): 105
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 4
Angle accuracy 90°: ±1´
Angle accuracy 45°: ±1´

Downloads

OSE-RPB-04-4M_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Surface flatness of substrate: λ/4
Surface Quality (Scratch-Dig): 105
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 5
Angle accuracy 90°: ±1´
Angle accuracy 45°: ±1´

Downloads

OSE-RPB-05-4M_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Surface flatness of substrate: λ/4
Surface Quality (Scratch-Dig): 105
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 7
Angle accuracy 90°: ±1´
Angle accuracy 45°: ±1´

Downloads

OSE-RPB-07-4M_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Surface flatness of substrate: λ/4
Surface Quality (Scratch-Dig): 105
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 10
Angle accuracy 90°: ±1´
Angle accuracy 45°: ±1´

Downloads

OSE-RPB-10-4M_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Surface flatness of substrate: λ/4
Surface Quality (Scratch-Dig): 105
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 12.7
Angle accuracy 90°: ±1´
Angle accuracy 45°: ±1´

Downloads

OSE-RPB-12.7-4M_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Surface flatness of substrate: ?/10
Surface Quality (Scratch-Dig): 105
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 5
Angle accuracy 90°: ±5´´
Angle accuracy 45°: ±5´´

Downloads

OSE-RPB-05-10H_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Surface flatness of substrate: ?/10
Surface Quality (Scratch-Dig): 105
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 7
Angle accuracy 90°: ±5´´
Angle accuracy 45°: ±5´´

Downloads

OSE-RPB-07-10H_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Surface flatness of substrate: ?/10
Surface Quality (Scratch-Dig): 105
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 10
Angle accuracy 90°: ±5´´
Angle accuracy 45°: ±5´´

Downloads

OSE-RPB-10-10H_STP.zip

OSE-RPB_RPSQ.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Surface flatness of substrate: λ/4
Coating: Broadband multi-layer AR coating for Visible Protected Aluminium (Al+MgF2)
Wavelength Range: 400-700nm
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 5
Laser Damage Threshold [J/cm²]: 4
Angle accuracy 90°: ±1´
Angle accuracy 45°: ±1´

Downloads

OSE-RPB1-05-550_STP.zip

OSE-RPB1-5.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Surface flatness of substrate: λ/4
Coating: Broadband multi-layer AR coating for Visible Protected Aluminium (Al+MgF2)
Wavelength Range: 400-700nm
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 7
Laser Damage Threshold [J/cm²]: 4
Angle accuracy 90°: ±1´
Angle accuracy 45°: ±1´

Downloads

OSE-RPB1-07-550_STP.zip

OSE-RPB1-5.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Surface flatness of substrate: λ/4
Coating: Broadband multi-layer AR coating for Visible Protected Aluminium (Al+MgF2)
Wavelength Range: 400-700nm
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 10
Laser Damage Threshold [J/cm²]: 4
Angle accuracy 90°: ±1´
Angle accuracy 45°: ±1´

Downloads

OSE-RPB1-10-550_STP.zip

OSE-RPB1-5.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Surface flatness of substrate: λ/4
Coating: Broadband multi-layer AR coating for Visible Protected Aluminium (Al+MgF2)
Wavelength Range: 400-700nm
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 12.7
Laser Damage Threshold [J/cm²]: 4
Angle accuracy 90°: ±1´
Angle accuracy 45°: ±1´

Downloads

OSE-RPB1-5.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Surface flatness of substrate: λ/4
Coating: Broadband multi-layer AR coating for Visible Protected Aluminium (Al+MgF2)
Wavelength Range: 400-700nm
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 15
Laser Damage Threshold [J/cm²]: 4
Angle accuracy 90°: ±1´
Angle accuracy 45°: ±1´

Downloads

OSE-RPB1-15-550_STP.zip

OSE-RPB1-5.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Surface flatness of substrate: λ/4
Coating: Broadband multi-layer AR coating for Visible Protected Aluminium (Al+MgF2)
Wavelength Range: 400-700nm
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 20
Laser Damage Threshold [J/cm²]: 4
Angle accuracy 90°: ±1´
Angle accuracy 45°: ±1´

Downloads

OSE-RPB1-20-550_STP.zip

OSE-RPB1-5.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Surface flatness of substrate: λ/4
Coating: Broadband multi-layer AR coating for Visible Protected Aluminium (Al+MgF2)
Wavelength Range: 400-700nm
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 25
Laser Damage Threshold [J/cm²]: 4
Angle accuracy 90°: ±1´
Angle accuracy 45°: ±1´

Downloads

OSE-RPB1-25-550_STP.zip

OSE-RPB1-5.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Surface flatness of substrate: λ/4
Coating: Broadband multi-layer AR coating for Visible Protected Aluminium (Al+MgF2)
Wavelength Range: 400-700nm
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 25.4
Laser Damage Threshold [J/cm²]: 4
Angle accuracy 90°: ±1´
Angle accuracy 45°: ±1´

Downloads

OSE-RPB1-5.pdf

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Surface flatness of substrate: λ/4
Coating: Broadband multi-layer AR coating for Visible Protected Aluminium (Al+MgF2)
Wavelength Range: 400-700nm
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of Circle or Ellipse to Actual dimension for entrance and exit surface
A=B [mm]: 30
Laser Damage Threshold [J/cm²]: 4
Angle accuracy 90°: ±1´
Angle accuracy 45°: ±1´

Downloads

OSE-RPB1-30-550_STP.zip

OSE-RPB1-5.pdf

Opt_Prisms_.zip
