Corner Cube Prisms

Reference number: OSE-CCB-10

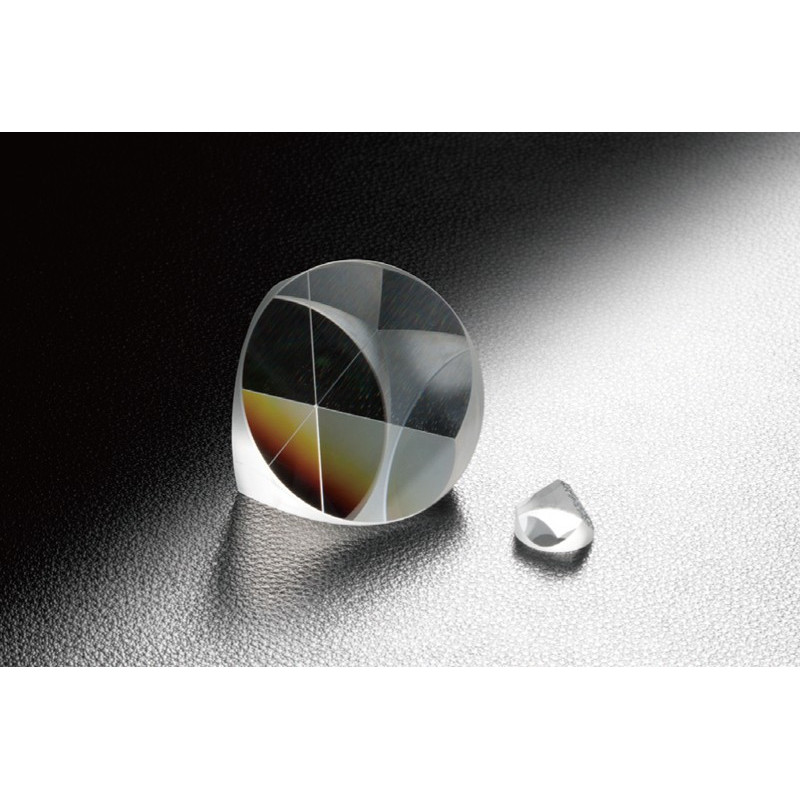

Corner cubes have the property that light incident on the prism face is deflected 180 degrees regardless of its angle of incidence.

Coating

Diameter in mm

Need more info?
Contact our expert.

Our Team

Description

Material: BK7
Refractive index nd: 1.517
Accuracy on the side of the aperture: λ/4
Angular deviation of beam [´´]: <5
Coating: Uncoated
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Those products may also interest you

Parabolic Lens

OSE-CPC-14.24C29.02-P

€94.30
Dove Prisms

OSE-DOP

€147.10
Equilateral Dispersing Prisms, BK7

OSE-DPB

€179.10
Equilateral Dispersing Prisms, SiO2

OSE-DPSQ

€244.20
Equilateral Dispersing Prisms, S-TIH11

OSE-DPTIH11

€62.50

Material: BK7
Refractive index nd: 1.517
Accuracy on the side of the aperture: ?/4
Angular deviation of beam [´´]: <5
Coating: Uncoated
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture
Diameter D [mm]: 10
Height H [mm]: 8.6

Downloads

OSE-CCB-10_STP.zip

OSE-CCB.pdf

CCB.xlsx

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Accuracy on the side of the aperture: ?/4
Angular deviation of beam [´´]: <5
Coating: Uncoated
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture
Diameter D [mm]: 15
Height H [mm]: 11.4

Downloads

OSE-CCB-15_STP.zip

OSE-CCB.pdf

CCB.xlsx

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Accuracy on the side of the aperture: ?/4
Angular deviation of beam [´´]: <5
Coating: Uncoated
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture
Diameter D [mm]: 20
Height H [mm]: 15.6

Downloads

OSE-CCB-20_STP.zip

OSE-CCB.pdf

CCB.xlsx

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Accuracy on the side of the aperture: ?/4
Angular deviation of beam [´´]: <5
Coating: Uncoated
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture
Diameter D [mm]: 25
Height H [mm]: 19

Downloads

OSE-CCB-25_STP.zip

OSE-CCB.pdf

CCB.xlsx

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Accuracy on the side of the aperture: ?/4
Angular deviation of beam [´´]: <5
Coating: Uncoated
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture
Diameter D [mm]: 30
Height H [mm]: 22.7

Downloads

OSE-CCB-30_STP.zip

OSE-CCB.pdf

CCB.xlsx

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Accuracy on the side of the aperture: ?/4
Angular deviation of beam [´´]: <5
Coating: Uncoated
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture
Diameter D [mm]: 50
Height H [mm]: 36.5

Downloads

OSE-CCB-50_STP.zip

OSE-CCB.pdf

CCB.xlsx

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Accuracy on the side of the aperture: ?/4
Angular deviation of beam [´´]: <5
Coating: Broadband multi-layer AR coating vor Visible (BMAR)
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture
Diameter D [mm]: 10
Height H [mm]: 8.6
Laser Damage Threshold [J/cm²]: 4

Downloads

OSE-CCB-10M_STP.zip

OSE-CCB.pdf

CCB.xlsx

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Accuracy on the side of the aperture: ?/4
Angular deviation of beam [´´]: <5
Coating: Broadband multi-layer AR coating vor Visible (BMAR)
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture
Diameter D [mm]: 15
Height H [mm]: 11.4
Laser Damage Threshold [J/cm²]: 4

Downloads

OSE-CCB-15M_STP.zip

OSE-CCB.pdf

CCB.xlsx

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Accuracy on the side of the aperture: ?/4
Angular deviation of beam [´´]: <5
Coating: Broadband multi-layer AR coating vor Visible (BMAR)
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture
Diameter D [mm]: 20
Height H [mm]: 15.6
Laser Damage Threshold [J/cm²]: 4

Downloads

OSE-CCB-20M_STP.zip

OSE-CCB.pdf

CCB.xlsx

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Accuracy on the side of the aperture: ?/4
Angular deviation of beam [´´]: <5
Coating: Broadband multi-layer AR coating vor Visible (BMAR)
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture
Diameter D [mm]: 25
Height H [mm]: 19
Laser Damage Threshold [J/cm²]: 4

Downloads

OSE-CCB-25M_STP.zip

OSE-CCB.pdf

CCB.xlsx

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Accuracy on the side of the aperture: ?/4
Angular deviation of beam [´´]: <5
Coating: Broadband multi-layer AR coating vor Visible (BMAR)
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture
Diameter D [mm]: 30
Height H [mm]: 22.7
Laser Damage Threshold [J/cm²]: 4

Downloads

OSE-CCB-30M_STP.zip

OSE-CCB.pdf

CCB.xlsx

Opt_Prisms_.zip

Material: BK7
Refractive index nd: 1.517
Accuracy on the side of the aperture: ?/4
Angular deviation of beam [´´]: <5
Coating: Broadband multi-layer AR coating vor Visible (BMAR)
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture
Diameter D [mm]: 50
Height H [mm]: 36.5
Laser Damage Threshold [J/cm²]: 4

Downloads

OSE-CCB-50M_STP.zip

OSE-CCB.pdf

CCB.xlsx

Opt_Prisms_.zip
