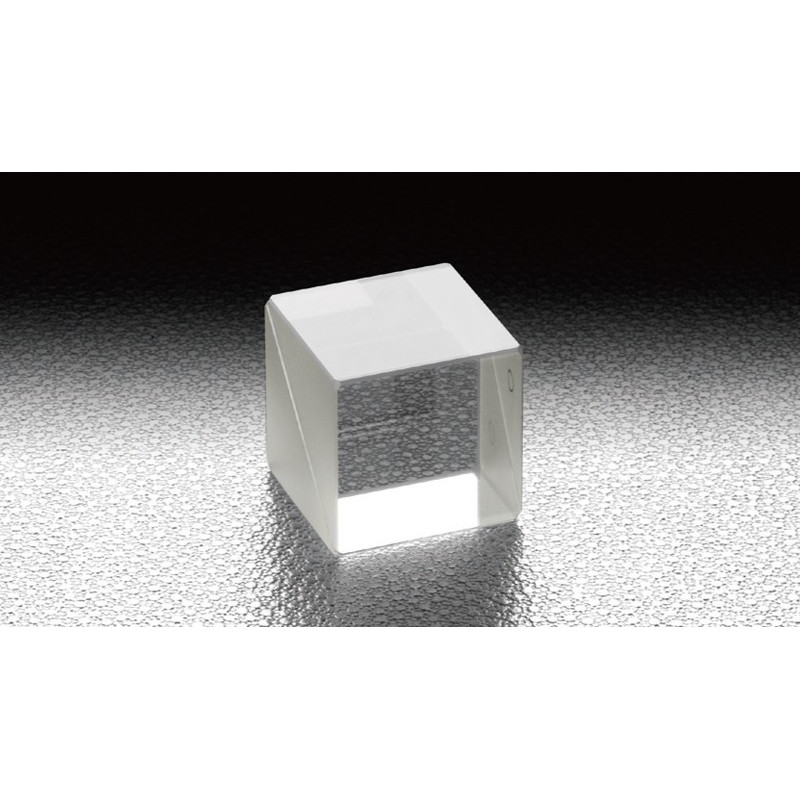

Broadband Polarizing Beamsplitters

Reference number: OSE-PBSW-10-250

Broadband Polarizing Beamsplitters provides wide band polarizing.

Wavelength Range in nm

A-B-C in mm (400 - 700 nm)

Need more info?
Contact our expert.

Our Team

Description

Incident angle [ ° ]: 0
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Those products may also interest you

Plate Polarizing Beamsplitters

OSE-PBS-C

€211.70
High Power Polarizing Beamsplitters

OSE-PBSHP

€496.80
Polarizing Beamsplitters

OSE-PBS

€217.80
Broadband Quartz Waveplates

OSE-WPQW

€1,221.10
Air Gap Type Waveplates

OSE-WPQG

€895.40

Wavelength Range [nm]: 235 - 265
A=B=C [mm]: 10
Material: Synthetic fused sillica
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >85
Reflectance of S polarized light [%]: >90
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

Wavelength Range [nm]: 235 - 265
A=B=C [mm]: 12.7
Material: Synthetic fused sillica
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >85
Reflectance of S polarized light [%]: >90
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBSW.pdf

DOWNLOAD

PBSW.xls

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 235 - 265
A=B=C [mm]: 15
Material: Synthetic fused sillica
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >85
Reflectance of S polarized light [%]: >90
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBSW-15-250_STP.zip

DOWNLOAD

OSE-PBSW.pdf

DOWNLOAD

PBSW.xls

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 235 - 265
A=B=C [mm]: 20
Material: Synthetic fused sillica
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >85
Reflectance of S polarized light [%]: >90
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBSW-20-250_STP.zip

DOWNLOAD

OSE-PBSW.pdf

DOWNLOAD

PBSW.xls

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 330 - 370
A=B=C [mm]: 10
Material: Synthetic fused sillica
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >85
Reflectance of S polarized light [%]: >95
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBSW-10-350_STP.zip

DOWNLOAD

OSE-PBSW.pdf

DOWNLOAD

PBSW.xls

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 330 - 370
A=B=C [mm]: 12.7
Material: Synthetic fused sillica
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >85
Reflectance of S polarized light [%]: >95
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBSW.pdf

DOWNLOAD

PBSW.xls

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 330 - 370
A=B=C [mm]: 15
Material: Synthetic fused sillica
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >85
Reflectance of S polarized light [%]: >95
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBSW-15-350_STP.zip

DOWNLOAD

OSE-PBSW.pdf

DOWNLOAD

PBSW.xls

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 330 - 370
A=B=C [mm]: 20
Material: Synthetic fused sillica
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >85
Reflectance of S polarized light [%]: >95
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:1000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBSW-20-350_STP.zip

DOWNLOAD

OSE-PBSW.pdf

DOWNLOAD

PBSW.xls

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 450 - 650
A=B=C [mm]: 10
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >85
Reflectance of S polarized light [%]: >85
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:2000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBSW-10-550_STP.zip

DOWNLOAD

OSE-PBSW.pdf

DOWNLOAD

PBSW.xls

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 450 - 650
A=B=C [mm]: 12.7
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >85
Reflectance of S polarized light [%]: >85
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:2000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBSW.pdf

DOWNLOAD

PBSW.xls

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 450 - 650
A=B=C [mm]: 15
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >85
Reflectance of S polarized light [%]: >85
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:2000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBSW-15-550_STP.zip

DOWNLOAD

OSE-PBSW.pdf

DOWNLOAD

PBSW.xls

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 450 - 650
A=B=C [mm]: 20
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >85
Reflectance of S polarized light [%]: >85
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:2000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBSW-20-550_STP.zip

DOWNLOAD

OSE-PBSW.pdf

DOWNLOAD

PBSW.xls

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 750 - 850
A=B=C [mm]: 10
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >92
Reflectance of S polarized light [%]: >97
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:2000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBSW-10-800_STP.zip

DOWNLOAD

OSE-PBSW.pdf

DOWNLOAD

PBSW.xls

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 750 - 850
A=B=C [mm]: 12.7
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >92
Reflectance of S polarized light [%]: >97
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:2000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBSW.pdf

DOWNLOAD

PBSW.xls

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 750 - 850
A=B=C [mm]: 15
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >92
Reflectance of S polarized light [%]: >97
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:2000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBSW-15-800_STP.zip

DOWNLOAD

OSE-PBSW.pdf

DOWNLOAD

PBSW.xls

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 750 - 850
A=B=C [mm]: 20
Material: BK7
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >92
Reflectance of S polarized light [%]: >97
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:2000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBSW-20-800_STP.zip

DOWNLOAD

OSE-PBSW.pdf

DOWNLOAD

PBSW.xls

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 380 - 750
A=B=C [mm]: 10
Material: SK2
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >92
Reflectance of S polarized light [%]: >95
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:5000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBSW.pdf

DOWNLOAD

PBSW.xls

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 380 - 750
A=B=C [mm]: 12.7
Material: SK2
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >92
Reflectance of S polarized light [%]: >95
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:5000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBSW.pdf

DOWNLOAD

PBSW.xls

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 380 - 750
A=B=C [mm]: 15
Material: SK2
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >92
Reflectance of S polarized light [%]: >95
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:5000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBSW.pdf

DOWNLOAD

PBSW.xls

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 380 - 750
A=B=C [mm]: 20
Material: SK2
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >92
Reflectance of S polarized light [%]: >95
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:5000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBSW.pdf

DOWNLOAD

PBSW.xls

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 450 - 1080
A=B=C [mm]: 10
Material: SF15
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >92
Reflectance of S polarized light [%]: >95
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:5000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBSW.pdf

DOWNLOAD

PBSW.xls

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 450 - 1080
A=B=C [mm]: 12.7
Material: SF15
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >92
Reflectance of S polarized light [%]: >95
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:5000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBSW.pdf

DOWNLOAD

PBSW.xls

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 450 - 1080
A=B=C [mm]: 15
Material: SF15
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >92
Reflectance of S polarized light [%]: >95
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:5000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBSW.pdf

DOWNLOAD

PBSW.xls

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 450 - 1080
A=B=C [mm]: 20
Material: SF15
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >92
Reflectance of S polarized light [%]: >95
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:5000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBSW.pdf

DOWNLOAD

PBSW.xls

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 1000 - 2000
A=B=C [mm]: 10
Material: SF15
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >94
Reflectance of S polarized light [%]: >95
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:3000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBSW.pdf

DOWNLOAD

PBSW.xls

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 1000 - 2000
A=B=C [mm]: 12.7
Material: SF15
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >94
Reflectance of S polarized light [%]: >95
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:3000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBSW.pdf

DOWNLOAD

PBSW.xls

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 1000 - 2000
A=B=C [mm]: 15
Material: SF15
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >94
Reflectance of S polarized light [%]: >95
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:3000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions

Downloads

OSE-PBSW.pdf

DOWNLOAD

PBSW.xls

DOWNLOAD

Opt_Polarizers_.zip

DOWNLOAD

Wavelength Range [nm]: 1000 - 2000
A=B=C [mm]: 20
Material: SF15
Incident angle [ ° ]: 0
Transmittance of P polarized light [%]: >94
Reflectance of S polarized light [%]: >95
Laser Damage Threshold [J/cm² ]: 0.3
Surface flatness of substrate: λ/4
Angular deviation of transmitted beam: <10
Extinction ratio of transmission Ts : Tp: 1:3000
Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
Surface Quality (Scratch - Dig): 20-10
Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions
