High Power Polarizing Beamsplitters

search

Reference number: OSE-PBSHP-10-3550

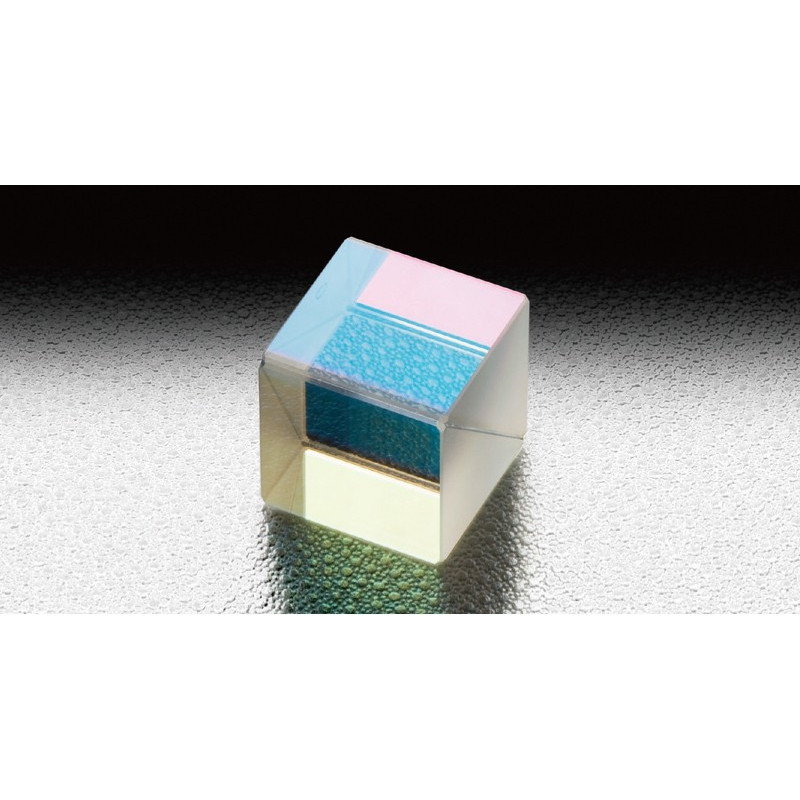

These Polarizing beamsplitters consist of two right angle prisms. One of them is coated with dielectric multi-layer polarizing coating on the hypotenuse face.

Wavelength Range in nm
A-B-C in mm (400 - 700 nm)
alt

Need more info?
Contact our expert.

Our Team

Description

  • Incident angle [ ° ]: 0
  • Transmittance of P polarized light [%]: >97
  • Reflectance of S polarized light [%]: >97
  • Surface flatness of substrate: λ/4
  • Angular deviation of transmitted beam: <10
  • Extinction ratio of transmission Ts : Tp: 1 : 200
  • Coating: Hypotenuse Surface: Dielectric multi-layer polarizing coating Four Surfaces: Narrowband multi-layer anti-reflection coating
  • Surface Quality (Scratch - Dig): 20-10
  • Clear aperture [mm]: Circle inscribed in a square of 85% of the dimensions
