Polarization Switch

search

Reference number: GPC-PSW

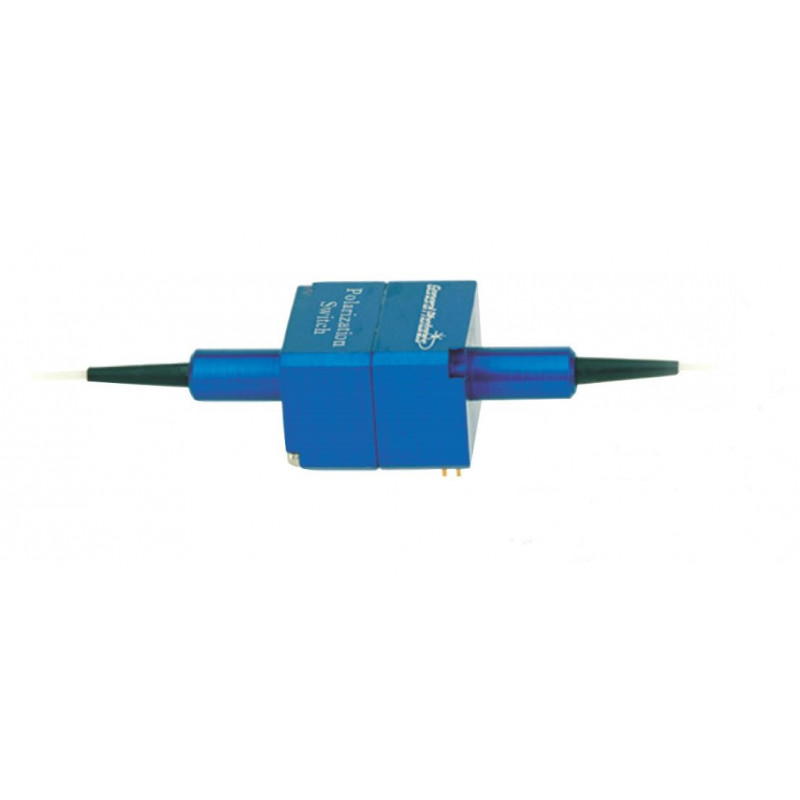

The PSW-002 is a solid-state polarization switch that can quickly and repeatably rotate the SOP of incoming light by a fixed angle, either 45 or 90 degrees.

alt

Need more info?
Contact our expert.

Our Team

Description

Polarization Switch from General Photonics

The PSW-002 is a solid-state polarization switch that can quickly and repeatably rotate the SOP of incoming light by a fixed angle, either 45 or 90 degrees. Both single mode and PM fiber pigtailed versions are available. With the PM option, the device functions as a TE to TM converter, switching the SOP between being aligned with the slow and fast axes of the PM fiber, or between the slow axis and 45 degrees from the slow axis. With the SM option, the device simply rotates the polarization ellipse either 45 or 90 degrees.

Features of the Polarization Switch

  • Switching speed 100 µs
  • No moving parts
  • Low insertion loss

Applications of the Polarization Switch

  • Polarization diversified detectors and sensors
  • PMD monitoring, polarization modulation, polarization detection, and polarization metrology
  • Coherent communication
