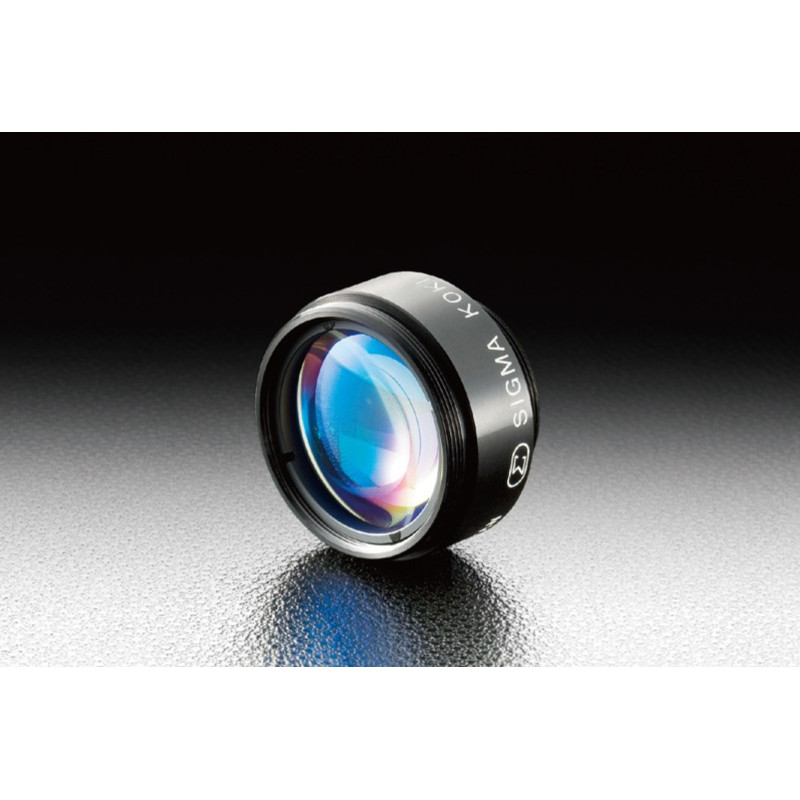

YAG Laser Focusing Lenses, Doublets

Reference number: OSE-NYDL-30-60PY1

YAG laser focusing lenses are air-bearing doublets for YAG wavelengths.

Need more info?
Contact our expert.

Our Team

Description

Material: Crown Glass - (Air spaced) - Flint Glass
Material of frame: Aluminum Finishing: Black anodized
Design wavelength [nm]: 1064nm, 632.8nm
Coating: Narrow band multi-layer anti-reflection coatig for 1064nm and 633nm
Laser Damage Threshold [J/cm²] : 1
Acceptance angle [°]: ±1°

Those products may also interest you

High resolution microscope OptoNano 200

OSE-PT-ON200

€0.00
F-Theta Lenses

OSE-f-Theta

€4,284.40
F-Theta Lenses for YAG

OSE-f-Theta-YAG

€685.50
F-Theta Lenses for CO2 Laser

OSE-f-Theta-10600

€1,037.10
Tube Lens: Wavelengths from fundamental to 3rd...

OSE-TL-Y3

€857.10

Maximum lens Diameter D [mm]: 30
Diameter D [mm]: 36
Focal length f [mm]: 59.9
Clear aperture ØDe [mm]: 27
Length L [mm]: 17
Lens mounting thread Ma: M34 P0,75
Protective window thread Mb: M34 P0,75
Thread length A [mm]: 4
Numerical aperture (NA): 0.23
Working distance (WD) [mm]: 41.1
Material: Crown Glass - (Air spaced) - Flint Glass
Material of frame: Aluminum Finishing: Black anodized
Design wavelength [nm]: 1064nm, 632.8nm
Coating: Narrow band multi-layer anti-reflection coatig for 1064nm and 633nm
Laser Damage Threshold [J/cm²] : 1
Acceptance angle [°]: ±1°

Downloads

OSE-NYDL-30-60PY1_STP.zip

OSE-NYTL_NYDL.pdf

Opt(ME-optics).zip

OSE-NYDL-30-60PY1_zmx_BB.zip

Maximum lens Diameter D [mm]: 30
Diameter D [mm]: 36
Focal length f [mm]: 79.9
Clear aperture ØDe [mm]: 27
Length L [mm]: 15
Lens mounting thread Ma: M34 P0,75
Protective window thread Mb: M34 P0,75
Thread length A [mm]: 4
Numerical aperture (NA): 0.17
Working distance (WD) [mm]: 67.6
Material: Crown Glass - (Air spaced) - Flint Glass
Material of frame: Aluminum Finishing: Black anodized
Design wavelength [nm]: 1064nm, 632.8nm
Coating: Narrow band multi-layer anti-reflection coatig for 1064nm and 633nm
Laser Damage Threshold [J/cm²] : 1
Acceptance angle [°]: ±1°

Downloads

OSE-NYDL-30-80PY1_STP.zip

OSE-NYTL_NYDL.pdf

Opt(ME-optics).zip

OSE-NYDL-30-80PY1_zmx_BB.zip

Maximum lens Diameter D [mm]: 30
Diameter D [mm]: 36
Focal length f [mm]: 100.1
Clear aperture ØDe [mm]: 27
Length L [mm]: 14
Lens mounting thread Ma: M34 P0,75
Protective window thread Mb: M34 P0,75
Thread length A [mm]: 4
Numerical aperture (NA): 0.14
Working distance (WD) [mm]: 88.4
Material: Crown Glass - (Air spaced) - Flint Glass
Material of frame: Aluminum Finishing: Black anodized
Design wavelength [nm]: 1064nm, 632.8nm
Coating: Narrow band multi-layer anti-reflection coatig for 1064nm and 633nm
Laser Damage Threshold [J/cm²] : 1
Acceptance angle [°]: ±1°

Downloads

OSE-NYDL-30-100PY1_STP.zip

OSE-NYTL_NYDL.pdf

Opt(ME-optics).zip

OSE-NYDL-30-100PY1_zmx_BB.zip

Maximum lens Diameter D [mm]: 30
Diameter D [mm]: 36
Focal length f [mm]: 149.3
Clear aperture ØDe [mm]: 27
Length L [mm]: 12
Lens mounting thread Ma: M34 P0,75
Protective window thread Mb: M34 P0,75
Thread length A [mm]: 4
Numerical aperture (NA): 0.09
Working distance (WD) [mm]: 140
Material: Crown Glass - (Air spaced) - Flint Glass
Material of frame: Aluminum Finishing: Black anodized
Design wavelength [nm]: 1064nm, 632.8nm
Coating: Narrow band multi-layer anti-reflection coatig for 1064nm and 633nm
Laser Damage Threshold [J/cm²] : 1
Acceptance angle [°]: ±1°

Downloads

OSE-NYDL-30-150PY1_STP.zip

OSE-NYTL_NYDL.pdf

Opt(ME-optics).zip

OSE-NYDL-30-150PY1_zmx_BB.zip
